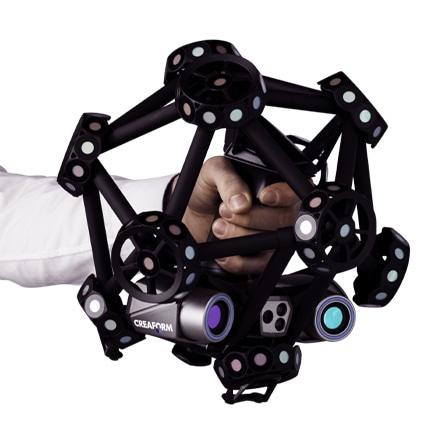

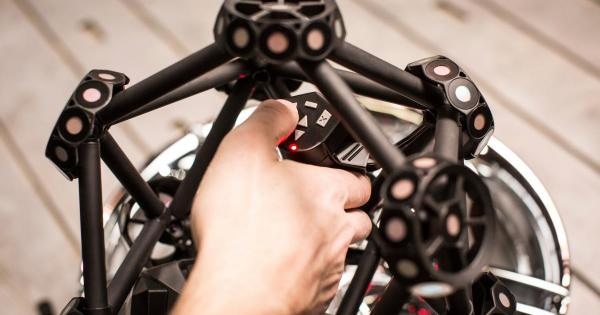

Handheld Optical Cmm 3D Scanner: Metrascan 3D

Unexpected costs, production and part approval delays from non-conformities are no longer an issue when using Creaform’s portable optical CMM 3D scanner, the MetraSCAN 3D. Help operators better manage processes and respond faster to the industry’s increasing quality control (QC) requirements—all without compromising the manufacturing throughput. Optical metrology provides measurement accuracy that is insensitive to the instabilities of the environment, making the MetraSCAN 3D optical CMM the prime choice for shop-floor quality control metrology.

With its extendable measuring volume, incredible speed, shop-floor accuracy and impressive capabilities on challenging materials, the MetraSCAN 3D represents the most complete metrology-grade 3D scanner on the market.

New Features

  • 12X faster with seven laser crosses
  • 1.5X more accurate
  • Any type of material can be scanned, regardless of whether it is black, multi-colored, or shiny surface
  • 25% lighter
  • Greater volume of 16.6 m3 (586 ft3)
  • Multi-function buttons for more effortless interaction with the software
  • Robust design for shop-floor hardware reliability

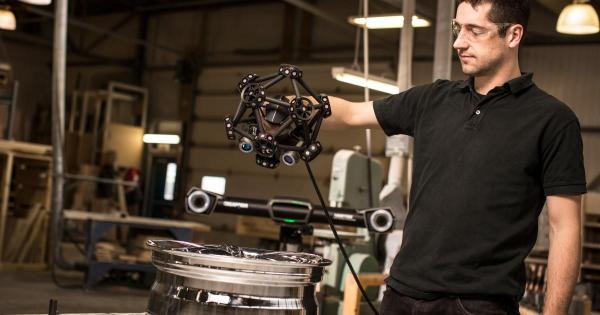

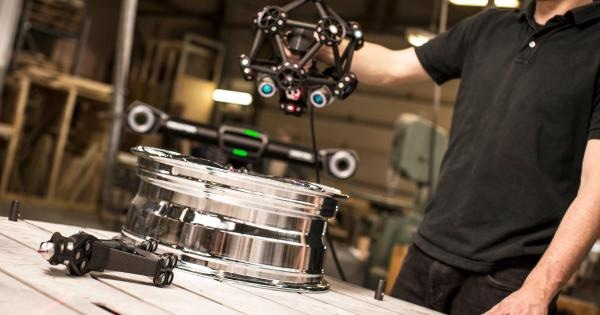

The MetraSCAN 3D enables highly accurate measurements directly on the production line.


  • First article inspection
  • Part-to-CAD analysis
  • Supplier product quality inspection
  • Evaluation of conformity of manufactured parts against originals
  • Evaluation of conformity of 3D models against production tooling or original parts
  • Tooling certification
  • Alignment

Reverse Engineering

  • 3D modeling
  • 3D scan-to-CAD
  • Finite element analysis (FEA)
  • Tooling and jig development
  • Maintenance, repair, and overhaul (MRO)

The MetraSCAN 3D is Compatible with Other Leading Engineering Software

  • InnovMetric Software - PolyWorks
  • 3D Systems - Geomagic Solutions
  • Delcam - PowerINSPECT
  • Dassault Systèmes - CATIA V5, SOLIDWORKS
  • Metrologic Group - Metrolog X4 and V5
  • BuildIT Software and Solutions - BuildIT
  • New River Kinematic - SpatialAnalyzer
  • Verisurf - VerisurfMeasure
  • Siemens - NX and Solid Edge
  • Autodesk - Inventor, 3ds Max, Alias, Softimage, and Maya


  • Automotive/transport
  • Aerospace
  • Manufacturing
  • Consumer products
  • Power generation
  • Heavy industries
  • Research and education

Handheld Optical Scanner for 3D Measurement Solutions
