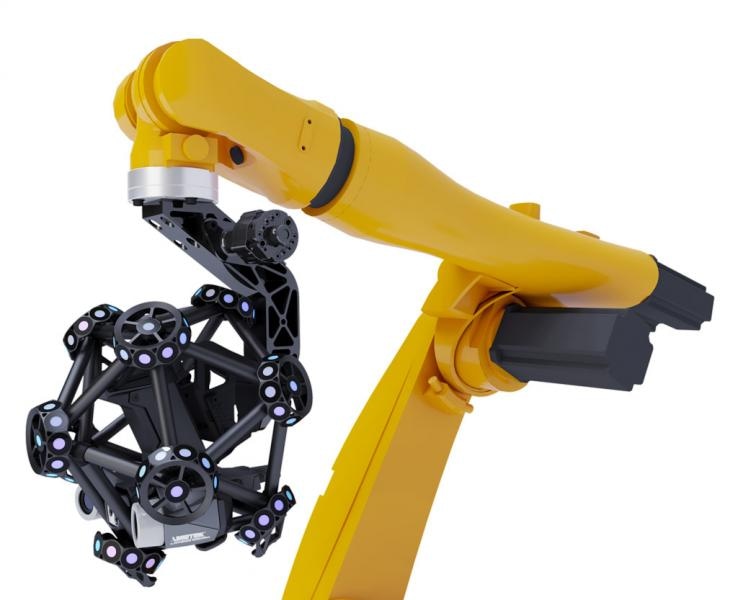

The Robot-Mounted Optical 3d Scanner: Metrascan 3D-R

The MetraSCAN 3D R-Series is a powerful robot-mounted 3D scanner that can be integrated into factory automation projects. Unlike existing solutions, this innovative robotized solution is the only one that features TRUaccuracy for automated quality control applications. Our precision robot 3D scanner enables manufacturing companies to harness the power of optical measurements and industrial automation. It is a fast, reliable, and versatile solution that doesn't force users to compromise on measurements accuracy of the quality control process on the production line. The industrial robot maximizes production cycle and throughput resulting in better product quality.

New Features

  • High productivity: Conducts inspection for up to hundreds of parts per day (even on intricate surfaces)
  • Multi-tasking: Improves throughput and production cycle by providing a simultaneous operation of data acquisition and analysis to obtain a steady and uninterrupted measurement flow
  • Automatic field calibration procedure: No drift accuracy in the due course and ceaseless operation
  • Robust industrial design: Tailored for shop-floor conditions and environments

Applications

The MetraSCAN 3D-R enables highly accurate measurements directly on the production line.

Quality Control/Inspection

  • In-line inspections of parts in the range of 0.3 m to 10 m
  • In-line inspections in mass production, up to a few hundred parts per day
  • Inspection of large parts
  • Stamping parts (car door, car body panel, front end, and so on)
  • Quality control inspections of supplier parts
  • Body in white (BIW)
  • Evaluation of conformity of manufactured parts against originals
  • Evaluation of conformity of 3D models against original parts or production tooling

Industries

  • Automotive/transport
  • Aerospace
  • Heavy industries
  • Consumer products
  • Manufacturing
  • Research and education
  • Power generation

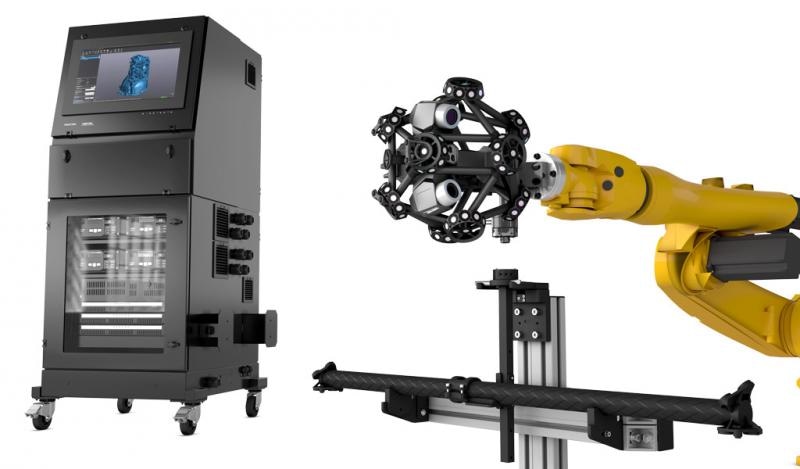

Using the MetraSCAN 3D-R for Integrated Automated Quality Control Projects

Image 1
Image 2
Image 3
Image 4
Image 5
