Automated 3D Scanning Cmm: Cube-R

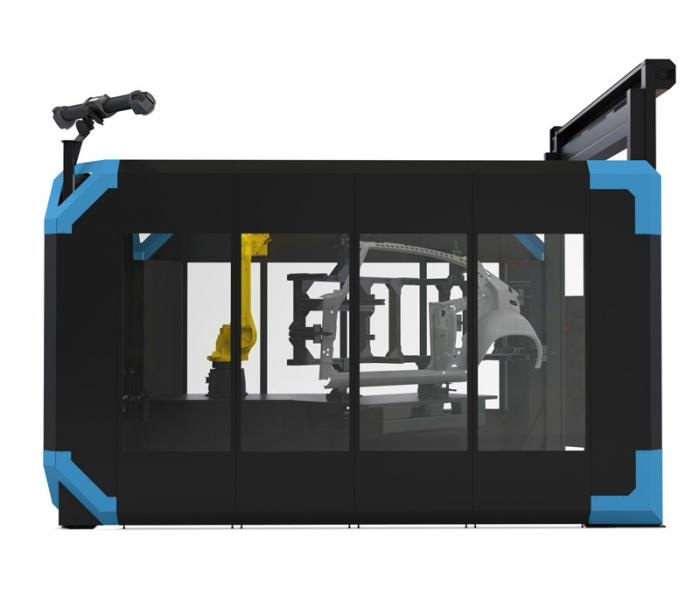

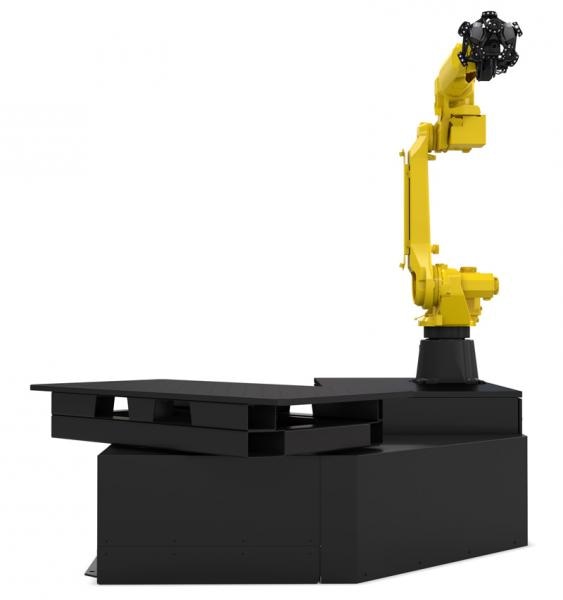

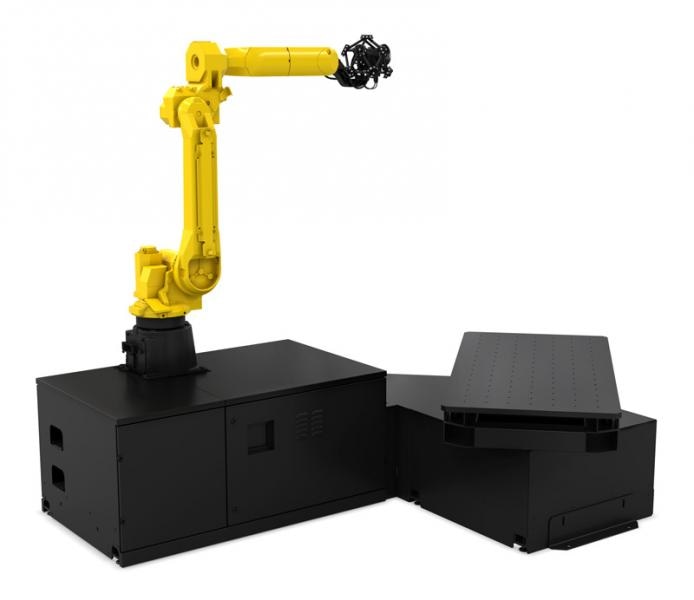

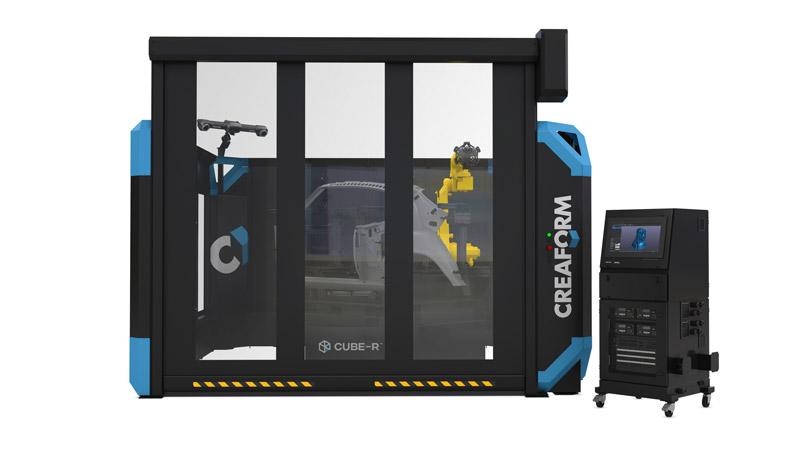

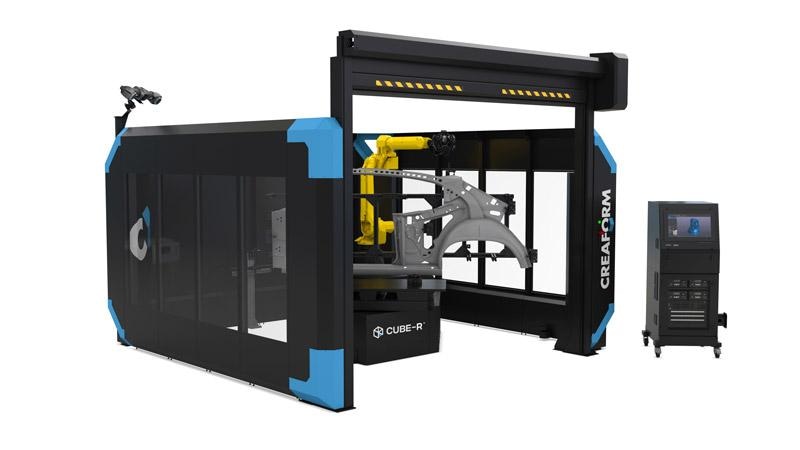

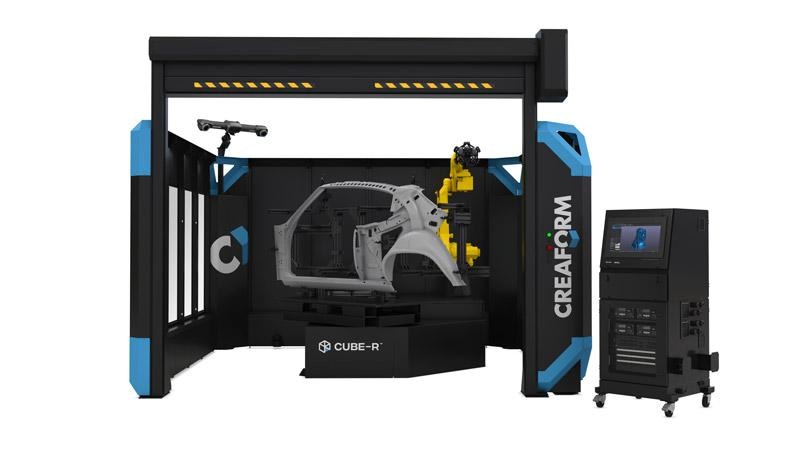

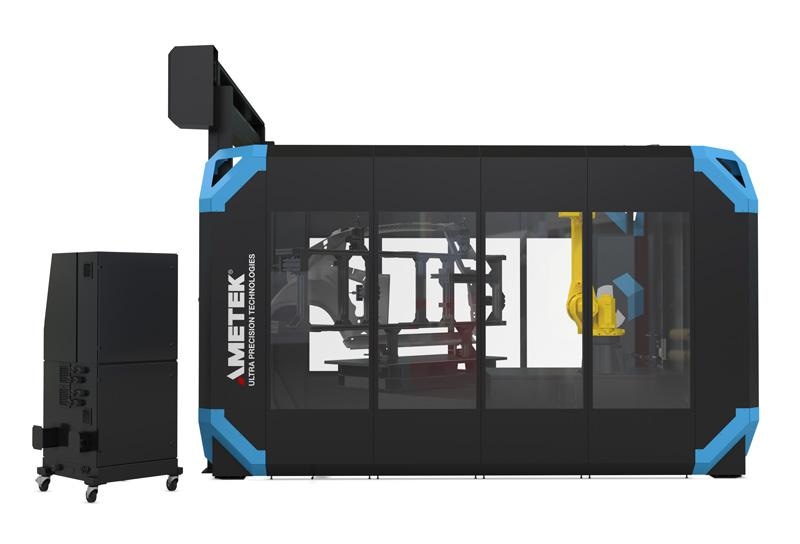

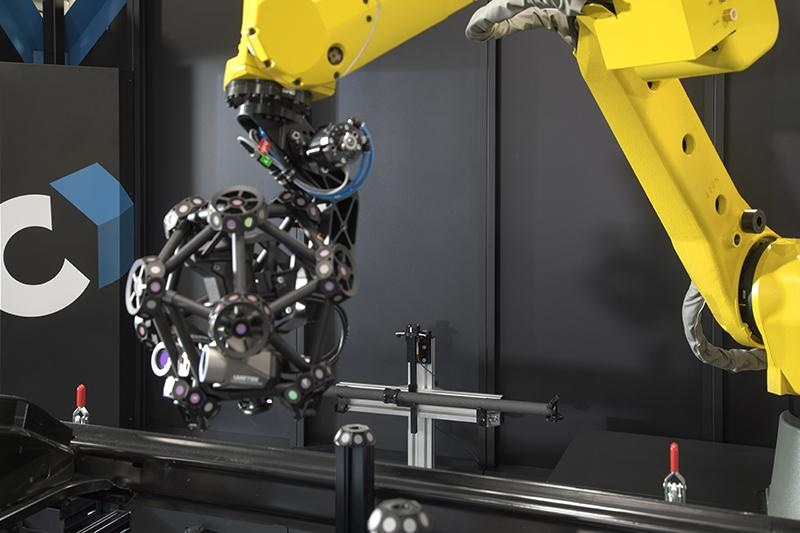

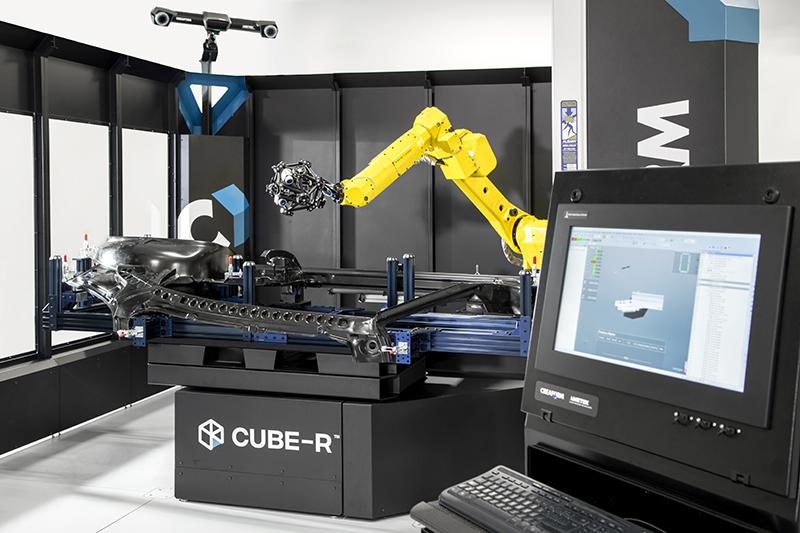

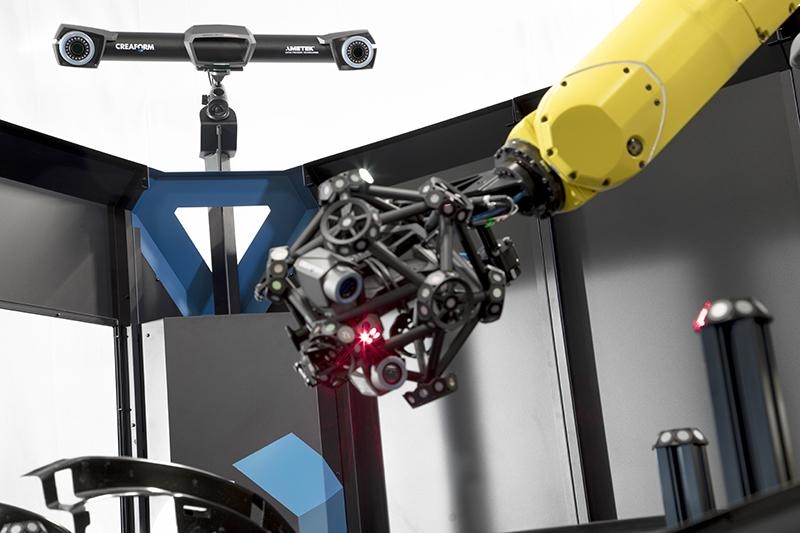

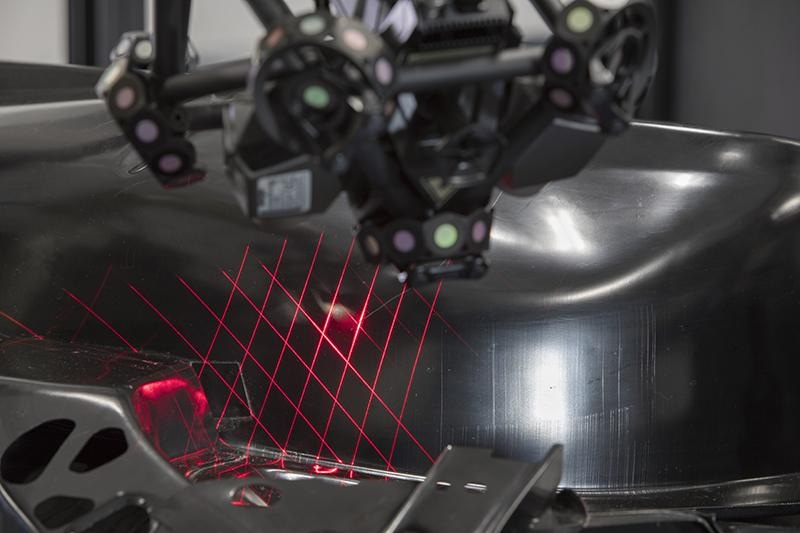

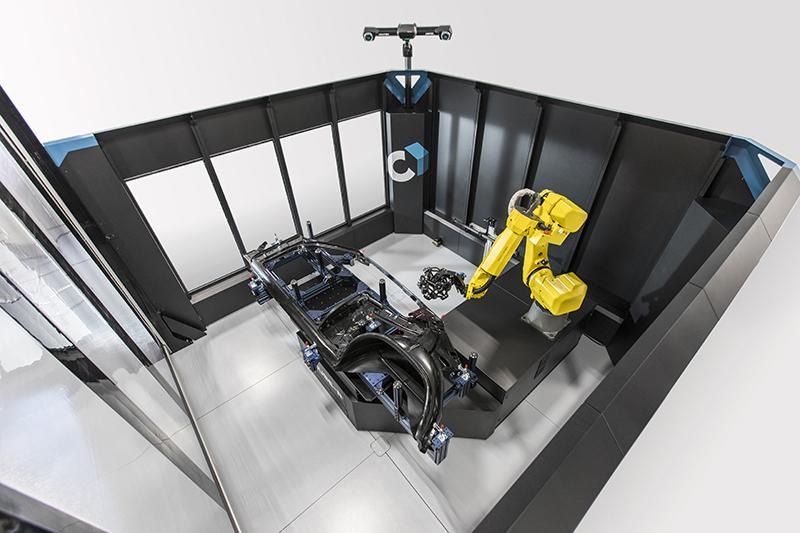

CUBE-R is a fast, reliable, and efficient complete turnkey solution for automated quality control applications. This automated 3D measuring machine features MetraSCAN 3D-R, a powerful robot-mounted optical 3D scanner that can be integrated into factory automation systems without compromising on accuracy. It is the perfect alternative to solve any productivity issues caused by bottlenecks at the traditional coordinate measuring machine (CMM). Unlike existing solutions, our 3D scanning machine enables manufacturing companies to harness the power of optical 3D measurement and industrial automation. This CMM measuring machine optimizes the production cycle and throughput resulting in better product quality.

New Features

  • High productivity: Conducts inspection up to hundreds of parts per day (even on complex surfaces)
  • Multi-tasking: Improves the throughput and production cycle by enabling simultaneous operation of data acquisition and analysis to obtain continuous and uninterrupted measurement flow
  • Complete turnkey solution: There is no need for integration as it is completely enclosed and shop-floor-ready
  • Automatic field calibration procedure: No drift accuracy over time and continuous operation

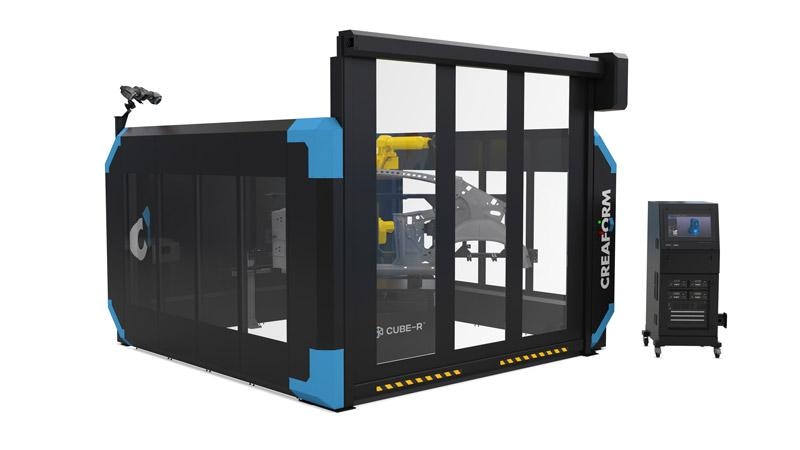

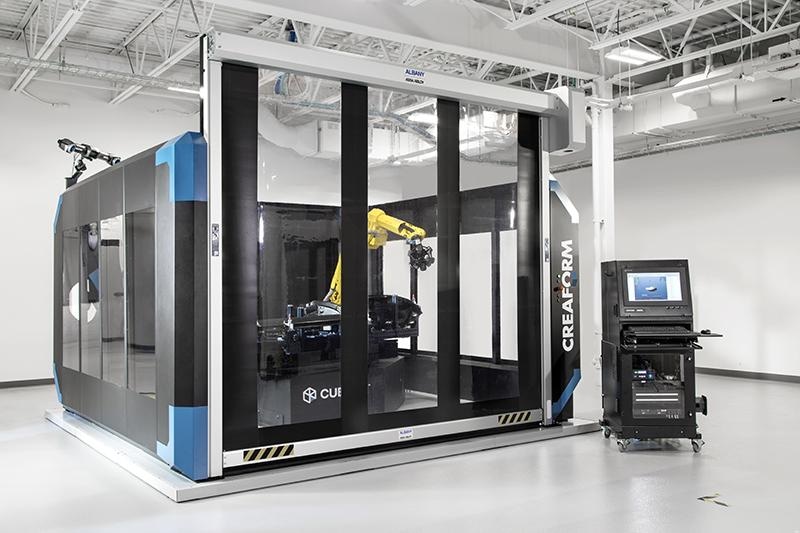

  • Smaller factory footprint: A comprehensive 4.1 m x 4.1 m x 3.1 m turnkey solution with a flexible shop-floor setup
  • Robust industrial design: Tailored for shop-floor conditions and environments

Applications

The MetraSCAN 3D-R facilitates highly accurate measurements for at-line inspections.

Quality Control/Inspection

  • At-line inspections of parts ranging up to 3 m
  • At-line inspections in bulk production, up to a few hundred parts per day
  • Stamping parts (car door, car body panel, front end, and so on)
  • Body in white (BIW)
  • Large parts inspection
  • Quality control inspections of supplier parts
  • Evaluation of conformity of manufactured parts against originals
  • Evaluation of conformity of 3D models against original parts or production tooling

Industries

  • Automotive/transport
  • Aerospace
  • Heavy industries
  • Consumer products
  • Research and education
  • Manufacturing
  • Power generation

The Fastest Turnkey 3D Scanning Coordinate Measurement Machine
