Raman Building Block 1064

B&W Tek allows users to design and configure a personal spectrometer system. The extraordinary manufacturing capabilities of B&W Tek enable users to build a standalone spectrometer system using its unique flexible OEM setup.

The OEM modular system accommodates all exclusive demands and can be easily made to order depending on applications. This easy-to-use Discover It Yourself RAMAN BUILDING BLOCK 1064 setup is comprised of a 1064-nm laser, a spectrometer, a sampling probe and other optional accessories. Users can build a suitable breadboarding system depending on their requirements.


  • High-quality, precision parts to suit all prototyping stipulations
  • Fiber-optic probe with external trigger and fiber-optic sampling flexibility
  • Customizable, patented CleanLaze® Technology for laser stabilization
  • Building Blocks can be customized to suit laboratory requests

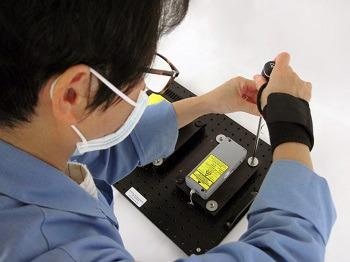

Image Credit: B&W Tek


Solutions that are best suited for Raman applications are offered by B&W Tek’s BWSpec® software and Software Development Kit (SDK) packages.


BWSpec®, a spectral data acquisition software, forms the basis of all B&W Tek instruments. The software package includes tools that can carry out measurements and calculations at the touch of a button. Users can get data in multiple formats, and acquisition parameters like laser power and integration time can be improved. Manual/auto baseline correction and automatic dark removal are also some of its exclusive features.

Software Development Kit (SDK)

B&W Tek’s interface allows users to control spectroscopic instruments through SDKs. Simple laser and spectrometer rules of calibration, data acquisition and module synchronization can be achieved. Although it is designed for 32-bit and 64-bit Windows operating systems, all USB-based spectrometers can make use of the SDK package.

If users are looking for complete system control, then an advanced package  with chemometric model support from BWIQ software and data processing algorithms is also available. Some of the mathematic functions that enable the delivery of a comprehensive solution spectrometer system include peak finding, curve fitting, smoothing, and a prediction engine.

The 1064-nm Raman Building Block has one starter breadboard in the laser excitation classification. Engineers have designed each building block with components of the highest quality. Each block ensures that users achieve the most precise and efficient method to realize their goals.

Table – 1. Source: B&W Tek

  Starter Block
Spectrometer Options Sol™ HT
Excitation Wavelength 1064 nm
Raman Shift Coverage 100 – 2500 cm-1
Coverage Range 1047 nm to 1450 nm
Resolution 10 cm-1 @ 1296 nm
Detector Type Linear InGaAs Array
Thermoelectric Cooling -20 °C @ relative humidity ≤ 90%
Dimensions 163 mm × 93.6 mm × 67.8 mm
(6.4 ” × 3.7 ” × 2.7 ”)
Weight 2.8 lbs. ( ~1.25 kg)


Note: The start range of Raman shift is dependent on the selected probe
For more spectrometer model customization options, datasheets, and price information. please contact us

Laser Options

The 1064-nm laser product is constructed according to the requirements of customers and sold as a module or a component to fit into another piece of equipment. It is the responsibility of the buyer to ensure that the equipment complies with the US FDA21 CFR 1040 for laser standards before selling in the market.

Table – 2. Source: B&W Tek

Probe Options Lab-Grade
Model Number BAC100B-1064
Excitation Wavelength 1064 nm
Laser Blocking OD6 Default
Shaft Material 304 Stainless Steel
Shaft Length 76.2 mm (3”)
Shaft Diameter 9.4 mm (0.37”)
Working Distance 5.9 mm
Maximum Operating Temperature 80 °C; Non-immersive use


For more probe or laser customization options, datasheets, and price information please contact us
