NX25™, powered by Nexus™, simplifies the scanning process. Its compact, lightweight antenna design is suitable for concrete scanning in difficult areas, such as ceilings, walls, and tight spaces. With its user-friendly design, the new Nexus Elements™ Interface simplifies everyday tasks and ensures basic operations are carried out efficiently and seamlessly.
The NX25 Small Area System is ideal for engineers, contractors, and technicians who need easy-to-use, reliable tools for mark-and-go jobs, while maintaining productivity.
- Depth Range: 0–75 cm (0–30 in)
- Environmental: –20 °C to +50 °C (–4 °F to +122 °F)
- Product Support: Comprehensive training, two-year warranty
Wireless Made Easy
NX25® can easily be connected to any tablet or phone. It can be connected through Wi-Fi and a web browser and does not require an app.
Ready When Users Are
NX25 has easy-to-use software with improved features and data quality. Just powering on the system and scanning significantly saves time during setup.
Deliver Results
Users can mark the findings on the ground or upload images and screenshots of markouts to GSSI Fusion to create a customized, professional report for customers.
Image Credit: Geophysical Survey Systems
Adaptable Scanning Modes
NX25 was designed with job conditions in mind. An adjustable survey wheel is used to seamlessly switch between cross-polarized, standard, and side-car scanning modes as required.
Choose the Interface

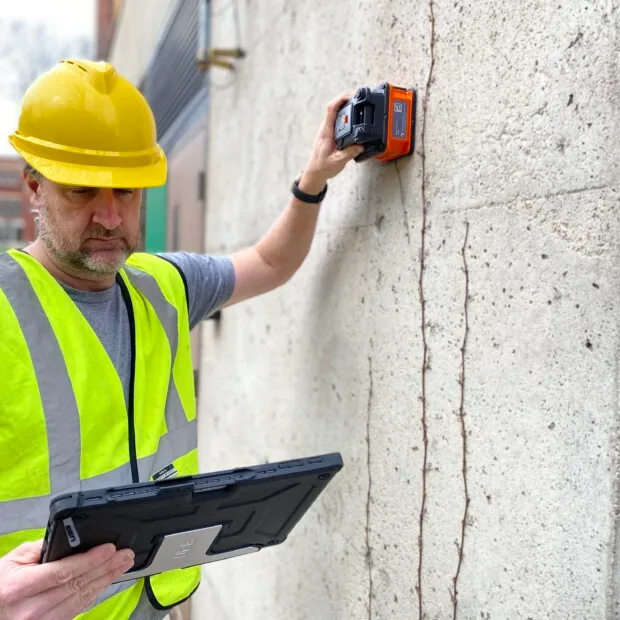

NX25 with the Nexus Elements Interface makes it easy to perform mark-and-go scanning. For more complex activities, when data needs to be saved or when advanced analysis is required, the entire system should be connected to Flex NX or Flex LT.
Optional Accessories

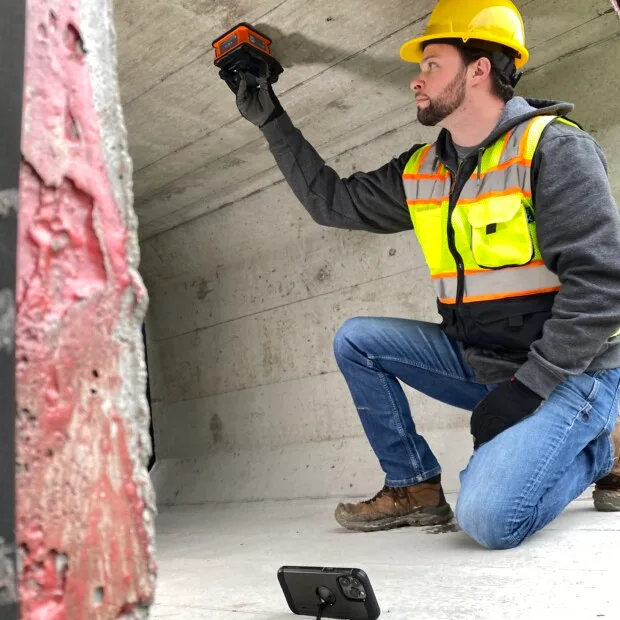

To scan difficult-to-reach areas like ceilings and high walls, the NX telescoping pole accessory can be attached to the system.
Image Credit: Geophysical Survey Systems
Jobsite Ready Design
The system is built with a hard, lightweight magnesium housing and engineering-grade plastics, providing enhanced durability and dependable performance for everyday activities.
All Day Battery Life
The antenna being used should work the same hours the job requires. NX25 has two lithium-ion batteries, providing a total battery life of more than 10 hours.
Built to Last
Every NX25 antenna comes with a two-year warranty.
GSS Has Got Users’ Back
GSS’s mission is to make the users successful, and hence NX25 comes standard with two years of complimentary in-house training and support.
Image Credit: Geophysical Survey Systems

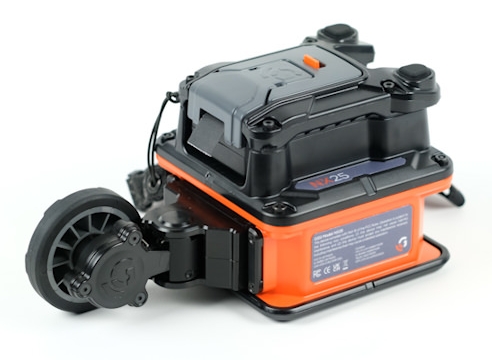

NX 25: Small Area System
The NX25 Small Area System combines a simple user interface with the flexibility of a bring-your-own-controller solution. This device is suitable for scanning confined areas, walls, and ceilings, with a focus on mark-and-go scanning and worksite efficiency.
System Includes:
- NX25 antenna with detachable encoder
- Wrist strap
- Dual-bay battery charger
- Two NX25/NX15 port covers
- Two lithium-ion 2-cell batteries for NX25/NX15
- Nexus Elements NX25/NX15 Quick Start Guide
- NX25/NX15 RAM ball accessory bracket
- NX25/NX15 backpack
Data Examples
NX25: Best in Class Performance in a Compact Size

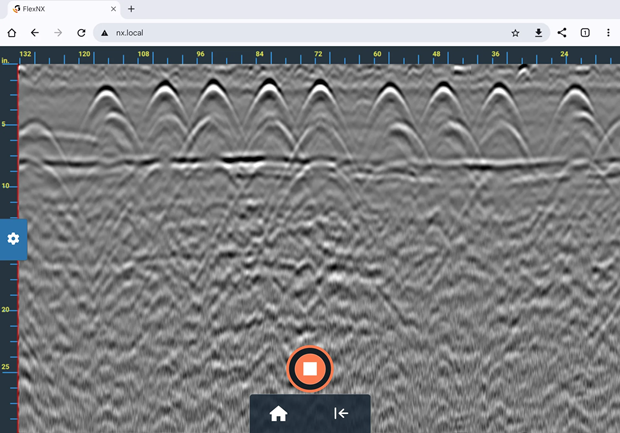

This data is a screenshot taken from a tablet using NX25 Nexus Elements. GPR data was collected on a vertical concrete wall showing two layers of rebar and a possible air void behind the wall. Image Credit: Geophysical Survey Systems
System Includes
Small Area System: NX25 Antenna with Backpack
- Two Lithium-ion 2-cell batteries for NX25/NX15
- Wrist strap
- Two NX25/NX15 port covers
- NX25/NX15 RAM ball attachment
- NX25 antenna with detachable encoder
- Dual-bay battery charger
- Nexus Elements NX25/NX15 Quick Start Guide
- NX25/NX15 backpack
Specifications
Source: Geophysical Survey Systems
| . |
. |
| Max depth |
0-75 cm (0-30 in) |
| Operating temperature |
-20 °C to +50 °C (-4 °F to +122 °F) |
| IP rating |
IP65 |
| Weight |
0.83 kg (1.8 lbs) including battery |
| Dimensions |
11.2 × 11.2 × 10.5 cm (4.4 × 4.4 × 4.1 in) |
