Why the NX15® is Built for Thick Slabs and Complex Concrete Challenges

NX15^® Deep Target System is suitable for inspecting thick concrete, slab-on-grade surfaces, and structural elements. The system has been designed for enhanced penetration and provides a depth range of 0–150 cm (0–60 in) in ideal conditions.

NX15 offers a seamless operation with Nexus Elements^™ Interface. It streamlines workflow owing to its comfortable form factor and allows users to scan, mark, and move to the next activity.

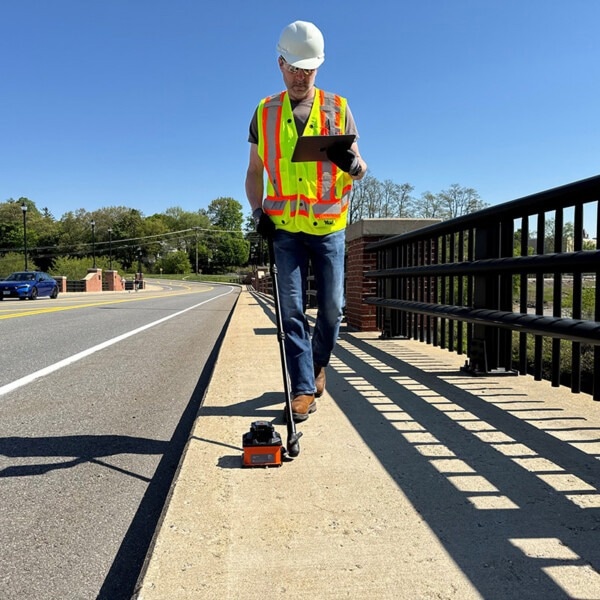

It is ideal for use by technicians tracing sub-grade utilities or contractors clearing locations for deep coring and offers the performance and depth required for the job. It also provides reliable, quick data to reduce risk and carry out the projects in an efficient and safe manner.

Wireless Made Easy

NX15^® connects effortlessly to any current phone or tablet. No software is necessary; simply connect via wi-fi and a web browser, and users are ready to start.

Ready When Users Are

NX15 contains user-friendly software with advanced functionality and unrivalled data quality. There is no need to waste time setting up the system; simply turn it on and scan.

Deliver Results

Users can accurately mark findings on the ground and proceed to the next activity, or rapidly upload results to GSSI Fusion to create a customized, professional report for customers.

Image Credit: Geophysical Survey Systems

Adaptable Scanning Modes

NX15^® was designed with job conditions in mind. An adjustable survey wheel is used to seamlessly switch between cross-polarized, standard, and side-car scanning modes as required.

Choose the Interface

NX15 with the Nexus Elements Interface makes it easy to perform mark-and-go scanning. For more complex activities or when data needs to be saved or advanced analysis is required, the entire system should be connected to Flex NX or Flex LT.

Optional Accessories

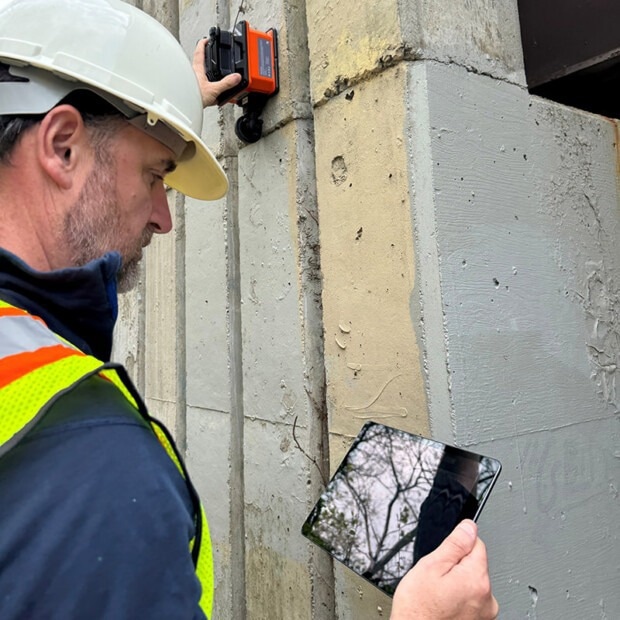

To scan long floors, ceilings, or high walls, the NX telescoping pole accessory can be attached to the system.

Image Credit: Geophysical Survey Systems

Jobsite Ready Design

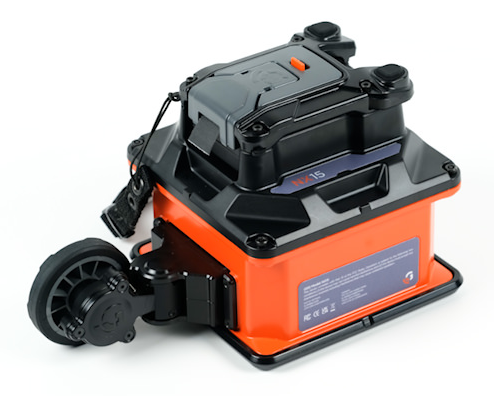

The system is built with a hard, lightweight magnesium housing and engineering-grade plastics, providing enhanced durability and dependable performance for everyday activities.

All Day Battery Life

The antenna being used should work the same hours as the job requires. NX15 has two lithium-ion batteries, providing a total battery life of more than 10 hours.

Built to Last

Every NX15 antenna comes with a two-year warranty.

GSS Has Got Users’ Back

GSS’s mission is to make the users successful, and hence NX15 comes standard with two years of complimentary in-house training and support.

Image Credit: Geophysical Survey Systems

NX15: Deep Target System

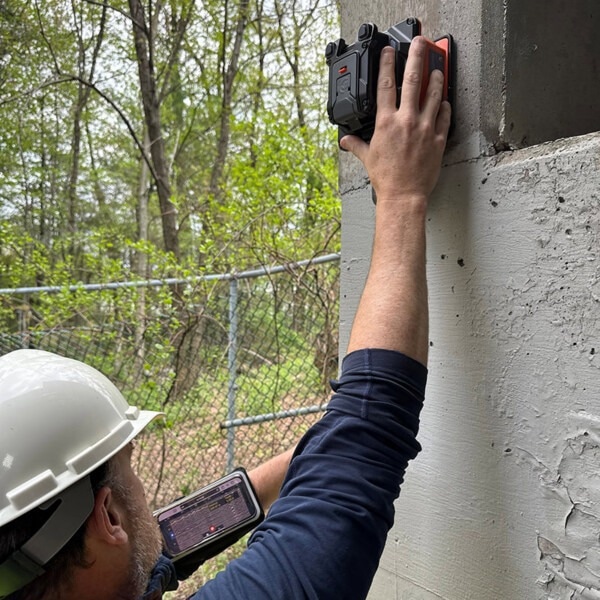

The system has a simple interface with the option to attach the user’s controller solution. The system is suitable for scanning thick concrete and locating deep targets below grade. It has been optimized for improving jobsite efficiency and used for mark-and-go scanning.

System Includes:

• NX15 antenna with detachable encoder
• Wrist strap
• Dual-bay battery charger
• NX25/NX15 port cover (2)
• Lithium-ion 2-cell battery (2) for NX25/NX15
• Nexus Elements NX25/NX15 Quick Start Guide
• NX25/NX15 RAM ball accessory bracket
• NX25/NX15 backpack

Data Examples

NX15: Delivering Resolution and Depth

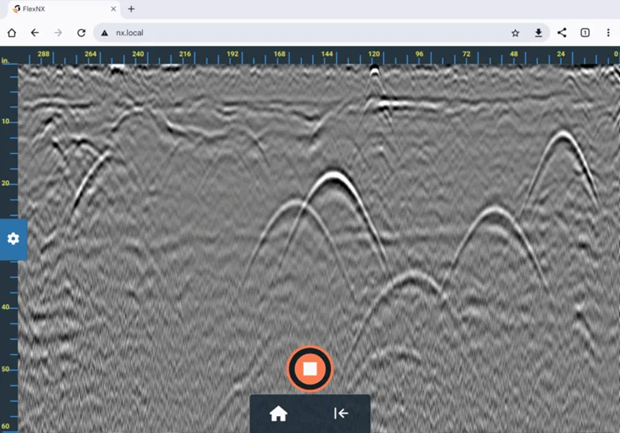

GPR profile collected with NX15 and the Nexus Elements Interface across a non-reinforced concrete slab. This data shows the slab base, localized areas of subsidence or disturbance, and targets extending to a depth of at least 50 in (127 cm). Image Credit: Geophysical Survey Systems

System Includes

Deep Target System: NX15 Antenna with Backpack

• NX15 antenna with detachable encoder
• Dual-bay battery charger
• Nexus Elements NX25/NX15 Quick Start Guide
• NX25/NX15 backpack
• Lithium-ion 2-cell battery (2) for NX25/NX15
• Wrist strap
• Two NX25/NX15 port covers
• NX25/NX15 RAM ball attachment

Specifications

Source: Geophysical Survey Systems
