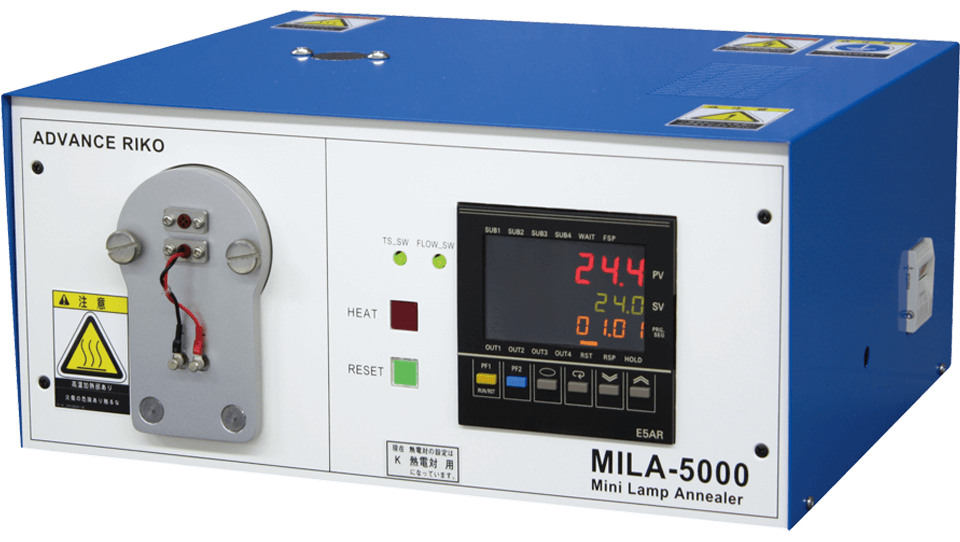

The MILA-5000 series can perform high-speed cooling, clean heating, and high-speed heating, all of which are characteristic of the Infrared Gold Image Furnace.
It is a low-cost infrared light heating system that combines a temperature controller and a variable atmosphere chamber to heat materials under configurable atmospheres. A PC linked via USB may perform heating activities, and data management is simple with this equipment.
MILA-5000UHV
The MILA-5000UHV was developed as a concept that supports a high vacuum and enhances the features of the MILA-5000 series, including high-speed heating and cooling, accurate temperature control, clean heating, and variable atmosphere selection.
It is based on the MILA-5000-P-N (high-temperature type). A PC linked via USB may perform heating activities, and data management is simple.
MILA 5000 U TECH
Video Credit: Orton Ceramic Foundation
Applications
MILA-5000 Series
- Ion implantation is followed by diffusion annealing and oxide film deposition annealing
- Catalytic effect testing and temperature-programmed desorption testing
- Uniform temperature annealing of the glass substrate
- Crystal annealing of ferroelectric thin films
- Silicon (Si) and compound wafers are sintered and alloyed
- Thermal cycle, thermal shock, thermal fatigue testing
MILA-5000UHV
- High-vacuum heat treatment
- A temperature-controlled desorption gas analysis furnace
Features
MILA-5000 Series
- 50 °C/second high-speed heating
- Choose the desired atmosphere: vacuum, gas, gas flow, or air
- Accurate temperature regulation
- Small, tabletop style
- Easy temperature recipe input into a USB-connected PC
- Display temperature data on the PC monitor during heating
MILA-5000UHV
- Easy input of the temperature recipe into a computer connected with a USB
- Inherits the capabilities of the MILA-5000-P-N (high-temperature type)
- Display temperature data on the PC monitor during heating
- Heat treatment in a high-vacuum environment
- Pumping as low as 10-4 Pa (when using TMP)
- Small, tabletop design
Specifications
MILA-5000 Series
Source: Orton Ceramic Foundation
| Model |
MILA-5000-P-N
(high-temperature type) |
MILA-5000-P-F
(uniform-temperature type) |
| Temperature range |
RT ～ 1200 °C |
RT ～ 800 °C |
| Sample size |
□ 20 × t 2 (mm) |
| Atmosphere |
Air, low vacuum, gas flow |
| Process pressure |
More than 10 Pa ~ atmospheric pressure |
*Vacuum pumping system is optional
*Heating temperature changes according to the heated sample’s infrared reflectance, absorption, heat capacity, and material
Uniform Heating Type
Source: Orton Ceramic Foundation
| Model |
MILA-5000UHV |
| Temperature range |
RT ～ 1000 °C |
| Sample size |
□ 20 × t 2 (mm) |
| Atmosphere |
Air, high vacuum, inert gas
|
| Process pressure |
10-4 Pa ~ atmospheric pressure |
*Vacuum pumping system is optional
*Heating temperature changes according to the heated sample’s infrared reflectance, absorption, heat capacity, and material
Optional Feature Examples

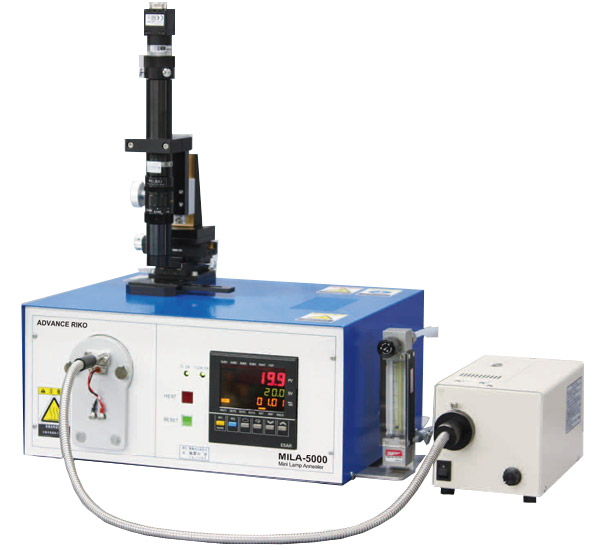

CCD Camera Unit for Sample Observation
Installing the CCD camera unit for sample observation allows the user to capture real-time changes in the sample during heating on a PC.
Image Credit: Orton Ceramic Foundation
Electrical Resistance Measurement Unit
Users can measure electrical resistance while heating the sample by swapping out the unit with the Electrical Resistance Measurement Unit and connecting it to their digital multimeter.
Image Credit: Orton Ceramic Foundation

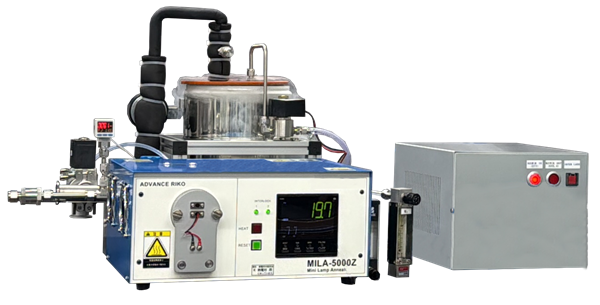

Liquid Nitrogen Mist Rapid Cooling Unit
Rapid cooling from 1000 °C to 0 °C can be achieved in just two seconds when using liquid nitrogen mist spraying.
Image Credit: Orton Ceramic Foundation
Video Credit: Orton Ceramic Foundation
High-Temperature Type
Image Credit: Orton Ceramic Foundation

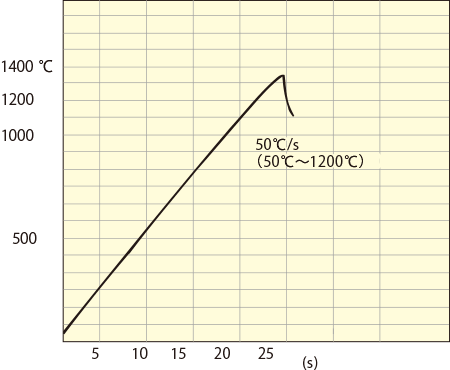

MILA5000-P-N Maximum heating rate
Sample: 20 (W) × 20 (L) × 0.5 (t) (all mm) nickel plate
Atmosphere: Vacuum
Rating: 200 V 4 kW, 100 % output
Image Credit: Orton Ceramic Foundation

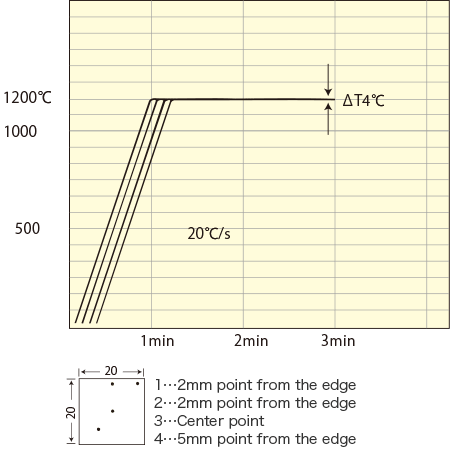

MILA5000-P-N Temperature uniformity
Sample: 20 (W) × 20 (L) × 0.5 (t) (all mm) nickel plate
Atmosphere: Vacuum
T・C（K）measuring point
Uniform Heating Type
Image Credit: Orton Ceramic Foundation

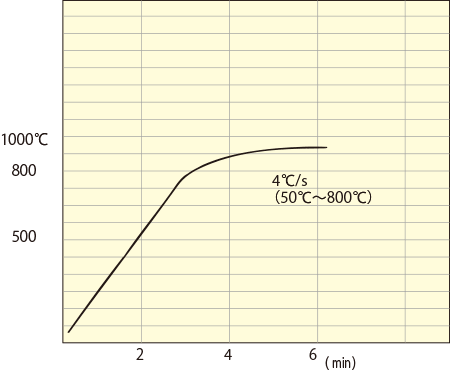

MILA5000-P-F Maximum heating rate
Sample: 20 (W) × 20 (L) × 0.5 (t) (all mm) nickel plate
Atmosphere: Vacuum
Rating: 200 V 1 kW, 100 % output
Image Credit: Orton Ceramic Foundation

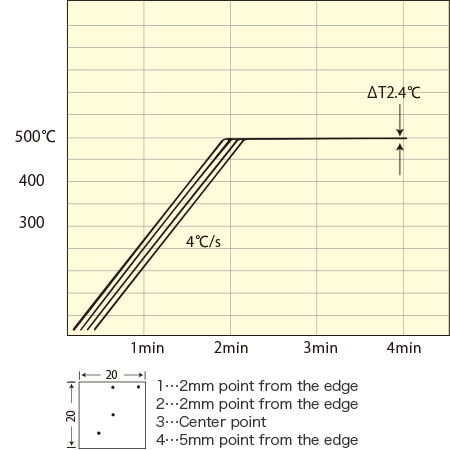

MILA5000-P-F Temperature uniformity
Sample: 20 (W) × 20 (L) × 0.5 (t) (all mm) nickel plate
Atmosphere: N2 Gas flow
T・C（K）measuring point
