GTF-MD-16 Series (1600°C)—Horizontal Gradient Furnace

The Orton GTF-MD-16 is a specially designed horizontal tube furnaces with controlled, reproducible, linear thermal gradients of approximately 10-12°C per inch.  This gradient allows you to study the effects of temperature on properties at various temperatures. As a liquidus furnace it is useful for determining the maximum temperature at which crystallization will form in a glass, and the minimum temperature at which a glass can be held for extended periods of time without crystal formation and growth.



  • 1600°C Box furnace with 2.875 ID Alumina core tube

  • Programmable process controller

  • Alumina D-Tube hearth

  • 9 Type "S" thermocouples spaced every 2 inches in the monitored zone

  • 5KVA power transformer and 8 position temperature display meter.

Power Requirements

  • 240vac/220vac/208vac, 30amp, 50/60Hz



Model: GTF-1616

Warranty: 12 Months

Temperature Range: RT to 1600°C

Furnace: Tube style, 16 inch heated zone

Thermocouples: Type "S

D-tube hearth: Alumina - 2.5 wide, 23 long

Thermocouple spacing: 2 inches

Heating elements: Molybdenum Disilicide

Temperature Control: Honeywell UDC 3200 Process controller

Power Control: 4-20ma / SCR

Total Gradient (minimum): 160 - 192°C

Heating/Cooling Rate: 1 to 10°C/minute

Power Requirements: 208-240vac, 30amp, 50 or 60Hz

Computer Interface: Optional

Atmosphere: Optional

Furnace Dimensions: 32 x 15 x 18 (82 x 38 x 46 cm)

Controller Console: 17 x 14 x 5.5

Transformer: 15 x 9 x 10

Temperature Display: 10 x 8 x 4.5

Shipping Weight/Dimensions: 200 lbs. / 49 x 26 x 31 (1 carton on 1 pallet)

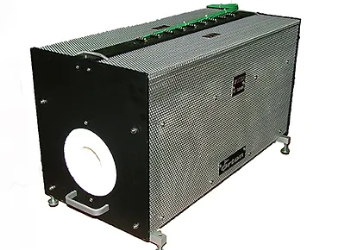

GTF-MD-16 Series—Horizontal Tube Furnaces
