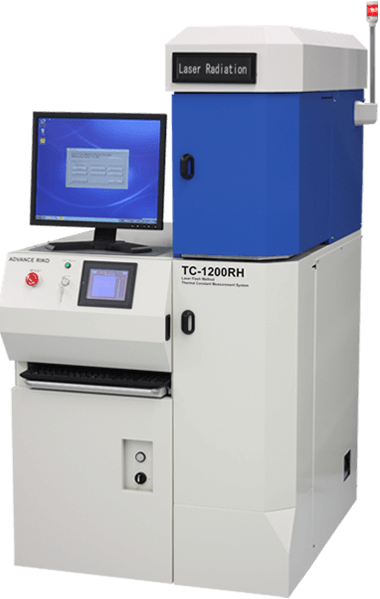

The TC-1200RH/TC-9000 series measures three thermal constants (thermal diffusivity, specific heat capacity, and thermal conductivity) for uniform solid materials, including thermoelectric materials, ceramics, carbons, metals, etc.
Applications
- Thermal diffusivity research and development for semiconductor devices and element mold (seal) materials
- Assessments of FPD peripheral materials' thermal conductivity and diffusivity
- Research and creation of organic, metal, and ceramic materials
- Research and development of thermoelectric materials
Features
- Measurement time is just 25 % of that of conventional resistance furnaces
- Temperature stability is also enhanced by increasing temperature control responsiveness
Specifications
Source: Orton Ceramic Foundation
| . |
. |
| Type |
TC-1200RH |
| Measurement properties |
Thermal diffusivity/specific heat capacity/thermal conductivity |
| Temperature range |
RT to 1150 °C (maximum 1200 °C ) |
| Sample size |
φ10 mm x 1–3 mm (thickness direction measurement) |
| Measurement atmosphere |
Vacuum (air also possible up to 150 °C) |
