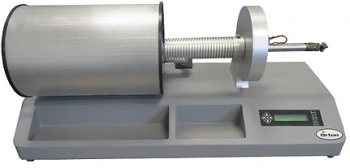

Model 1410B—Horizontal Dilatometer

The Orton Dilatometer 1410B is a straightforward horizontal, digital dilatometer that evaluates a single test specimen’s expansion or contraction from room temperature to 1000 °C. It has a standalone, programmable process controller and a measuring head assembly with an LVDT sensor.

The Orton Dilatometer 1410B operates to the following standards:

  • ASTM E-228
  • ASTM C-372
  • ISO 7991


  • Programmable process controller
  • 1000 °C horizontal tube furnace
  • Benchtop instrument console
  • Computer software
  • LVDT measuring head
  • 1 (25.4 mm) or 2" (50.8 mm) calibration sample
  • Fused quartz sample holder and probe rod
  • Type “N” thermocouple
  • Accessories and instruction manual (Computer not included)


  • Model: DIL 1410 B
  • Warranty: 12 Months
  • Temperature Range: RT to 1000 °C
  • Thermocouple: Type "N" 2 wire
  • Furnace: Tube style, 8-inch heated zone
  • Sample Holder and Probe Rod: Fused Quartz
  • Sample Size (max): 50 mm long × 20 mm round or square
  • Displacement Resolution: 0.0000003 inch or 0.3 micro-inch (0.00001 mm or 0.01 µm)
  • Reproducibility Range: ± 0.004 Percent Linear Change
  • Contact Load: 113 g
  • LVDT Displacement Range: ±0.125 inch (±3.18 mm)
  • PLC Resolution for a 1 Sample: 0.00003%
  • Power Requirements: 120 vac/10 amp or 240 vac/5 amp 50/60 Hz
  • Temperature Control: User Programmable, 20-segment, PID Controller with Melting Point Protection
  • Heating Rate: 1 to 30 °C/minute, programmable at 0.01 °C increments
  • Data Acquisition: Onboard Process controller—Data stored at 1 °C increment, real-time data collection or data retrieval to computer
  • Data Analysis: Remote programming and analysis Software (Requires English Language Version of Windows OS)
  • Computer Interface: USB
  • Fused Silica Calibration Sample: Optional
  • Factory Calibration: High purity platinum
  • Calibration Sample: 99.8 Alumina; Platinum available as Option
  • Bench-top Footprint (open) Length × Depth × Height: 31 × 12 × 14 (788 × 305 × 356 mm)
