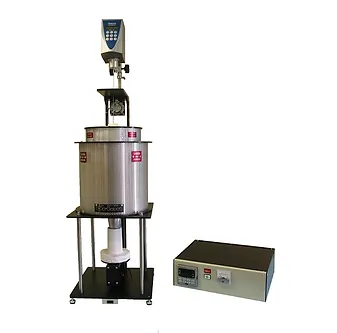

Model RSV-1600—Rotating Spindle Viscometer

The Orton Model RSV Viscometer is designed to measure the viscosity of molten glass at various temperatures according to the ASTM C-965/A and ASTM C-1276.

The Model RSV is a rotating spindle viscometer that uses the constant angular velocity method to measure viscosities at specific temperatures.  These measurements are then used to generate a curve of the visco-elastic behavior of a molten glass. This system can also be used for testing according to ASTM C-1276 and ISO 7884-2 guidelines.


  • Programmable process controller
  • 1600 °C furnace
  • Type "S" thermocouples
  • Motorized sample lift pedestal
  • Power Transformer
  • Instruction manual

Choice of Brookfield Viscometer Models (ranges):

  • LV-DV2T: 1.5K to 2M cP
  • RV-DV2T: 10K to 40M cP
  • HA-DV2T: 25K to 80M cP
  • HB-DV2T: 100K to 320M cP


  • Model: RSV-1600
  • Warranty: 12 Months
  • Range: 1.5 K–320 M cP
  • Test Method: Rotating Spindle
  • Atmosphere: Air
  • Temperature Range: RT to 1600 °C
  • Sample Thermocouple: Type "S"
  • Control Thermocouple: Type "S"
  • Furnace: Tube style with MolyD elements
  • Crucible/Spindle (not Included): Platinum/Rhodium
  • Size (Spindle): 292 mm length 8.7 mm diameter
  • Size (Crucible): 74 mm height 68 mm top diameter, 41 mm bottom diameter, 200 ml capacity
  • Sample Volume: 125 ml +/−50 ml
  • Sample Weight: 400–500 grams
  • Power Control: 4–20 ma/SCR
  • Power Requirements: 208-240 vac/20 amp, 50/60 Hz
  • Pedestal: 1650C IFB
  • Pedestal Movement: Vertical, Motor driven lead-screw
  • Temperature Control: Honeywell UDC 3200 Process controller
  • Calibration Sample: 100000cP Fluid (for Room Temp calibration)
  • SRM Calibration Sample: Optional
  • Purge Gas Atmosphere: POptional
  • Computer Interface Software: Optional
  • Bench-top Foot print Length × Depth × Height: 16 × 16 × 58 (41 × 41 × 147 cm)
