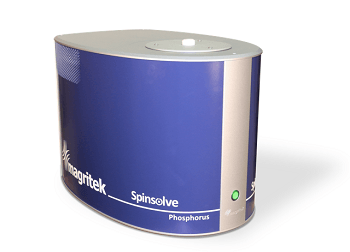

Rapid, Benchtop NMR Analysis with the Spinsolve® Phosphorus

The Magritek Spinsolve® Phosphorus benchtop NMR spectrometer can help users obtain a remarkable level of spectroscopic detail.

31P is a completely natural nucleus that exists abundantly in many organic compounds. The high NMR sensitivity, simple spectra and large chemical shift range of 31P and the lack of common background signals (such as solvent signals) make 31P NMR suitable for routine purity assessment and reaction monitoring.

Key Features and Benefits

  • Compact and convenient
  • Easy to operate
  • High Performance
  • Low Maintenance

Applications

  • Purity analysis of organic compounds
  • Reaction monitoring
  • Pharmaceutical analysis
  • Structure elucidation

Download the Brochure for More Information

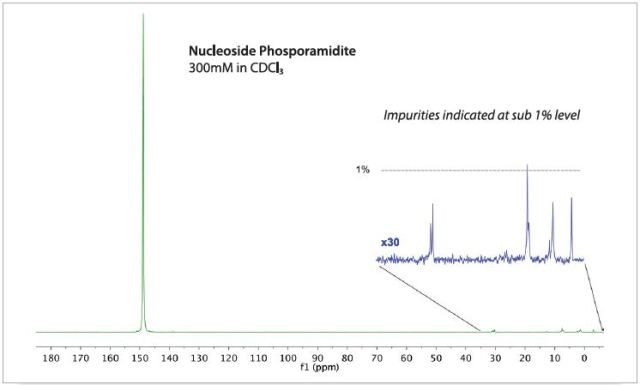

Assaying Sample Purity

The highly sensitive Spinsolve® benchtop spectrometer in combination with the simple phosphorus spectrum makes Spinsolve® Phosphorus suitable for purity assays.

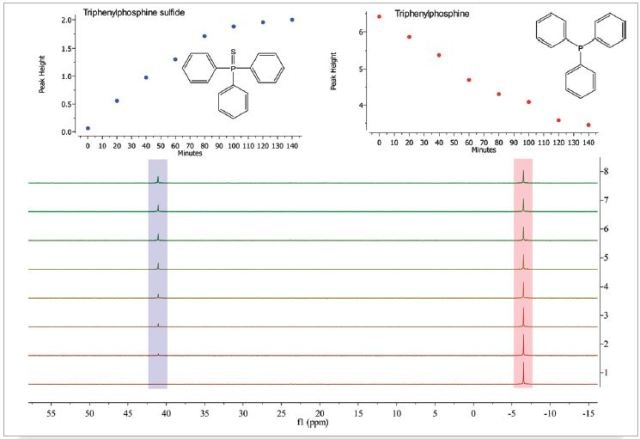

Reaction Monitoring

It takes 5h for oxidation of triphenylphosphine into triphenylphosphine sulfide. Monitoring the reaction is simple due to the clean separation and minimum number of peaks in the spectrum.

Pulse Sequences Available on the Spinsolve Phosphorus

Proton Fluorine Phosphorus
1D
Paramagnetic
2D COSY
2D JRES
T1, T2
Reaction Monitoring
1D
Paramagnetic
2D F- COSY
2D F – JRES
2D FH – COSY
Reaction Monitoring
1D
NOE (on/off)
Proton decoupling (on/off)
Reaction Monitoring

Specifications

Spinsolve Phosphorus Specifications
Nuclei 1H, 19F, 31P
Operating frequency 43 MHz (1H)
1H 50% linewidth < 0.5 Hz
1H 0.55% linewidth <20 Hz
1H sensitivity > 70:1 for 1% Ethyl Benzene
Operating temperature range 20° C to 25° C (68°F to 78°F)
Dimensions 58 X 43 X 40 cm (23” x 17” x16”)
Weight 55 kg (120 lbs)
Stray field < 2 G all around system
