Software for Advanced NMR Analysis on your Benchtop – Spinsolve Expert

Spinsolve Expert is intuitive and intelligent NMR processing software to be used with the Spinsolve range. The software has the ability to program pulses, design new pulse sequences and to create scripts to control a battery of experiments.

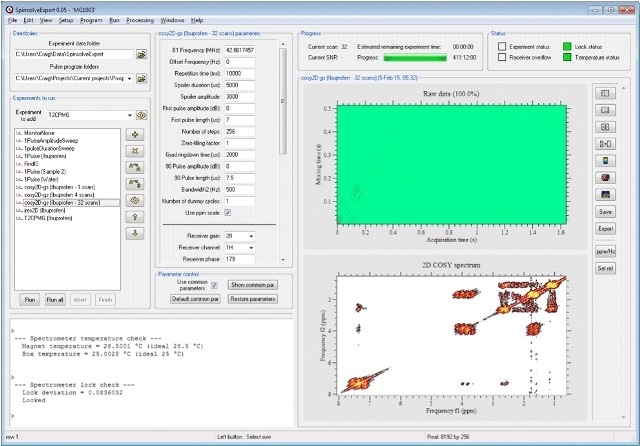

The Spinsolve Expert interface is intended for optimizing the running and display of experiments. Analyses are grouped together into projects with all analyses in the current project clearly seen in the user interface. Users can read earlier data as well as all the parameters applied by clicking on each experiment.

It is possible to enter pulse programs with default parameters, higher-level experiment control scripts and parameters from the user interface. The expert user can have a complete control over the analyses as the display interface and post processing controls are configurable. The use of the pulse program editor and compiler facilitates the addition of new experiments.

Key Features

Setup and Monitoring

  • Proton and Lock probe matching check
  • Temperature monitor
  • Automatic lock-find
  • Manual and automatic shimming

Data Display

  • An optimized, user-controllable plot layout is available for each experiment
  • Enables display of 1D and 2D plots together in the main interface
  • Enables display of 3D plots in separate windows

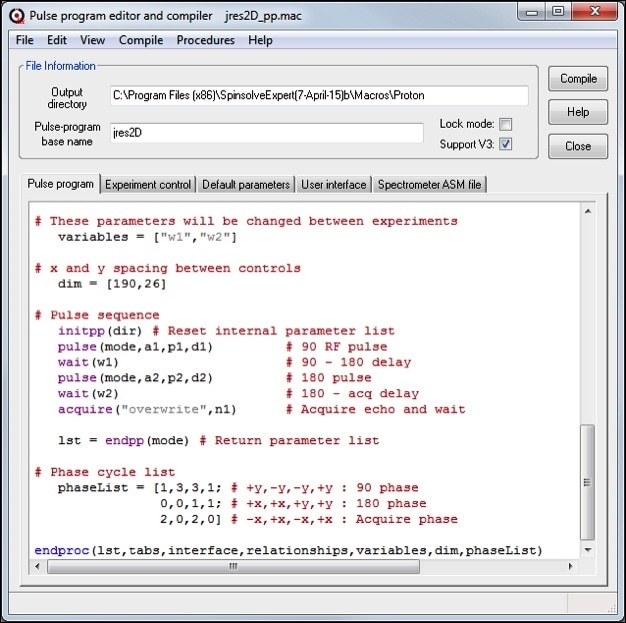

Pulse Program Generation

  • The spectrometer can be fully controlled thanks to the ability to write new pulse programs

Experiment Control

  • All experiment parameters are visible and modifiable
  • Enables running multiple versions of the same experiment in the same project
  • Enables controlling experiments using the scripting language
  • Includes looping and user defined processing
  • Data storage to the file system and data export are simple
  • Experiments can be batched

Post Processing

For each experiment, it is possible to define specific post processing. Available commands include:

  • A variety of predefined and user definable apodization filters
  • Baseline correction
  • Fourier transform
  • Manual and automatic phase correction
  • 1D and 2D inverse Laplace (Requires an additional license for 2D inversion)

Download the Brochure for More Information
