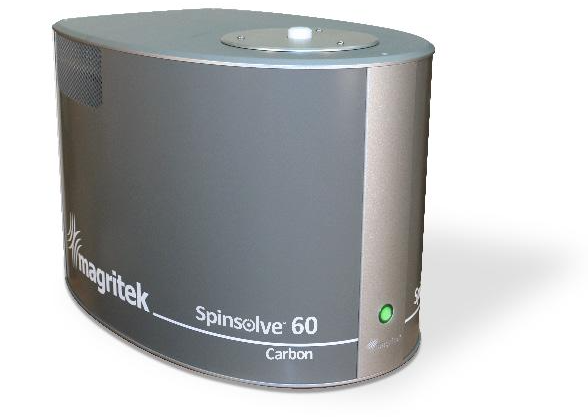

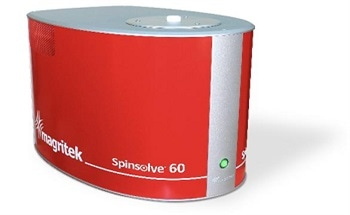

Spinsolve 60 Carbon benchtop NMR spectrometer

The Spinsolve 60 Carbon benchtop NMR spectrometer offers users an outstanding 60 MHz NMR spectrometer in a compact benchtop instrument. A wide range of 1H, 19F, and 13C NMR experiments can be carried out with the Spinsolve 60 Carbon directly from the lab bench and features beautifully simple software that is easy to use.  No cryogens are required, the system operates with a permanent magnet and requires only a standard power socket to run.

Applications for the Spinsolve 60 range from work in research labs, industrial QA/QC, and in education for undergraduate students.

Features of the Spinsolve 60 Carbon include:

  • Wide range of 1D and 2D NMR experiments
  • 1H, 19F, and 13C nuclei can be measured
  • No spinning or compressed gas
  • Compact, benchtop size and weight
  • No cryogens

Example spectra from the Spinsolve 60 Carbon benchtop NMR spectrometer. More examples can be found at https://magritek.com/resources/spectra-library/

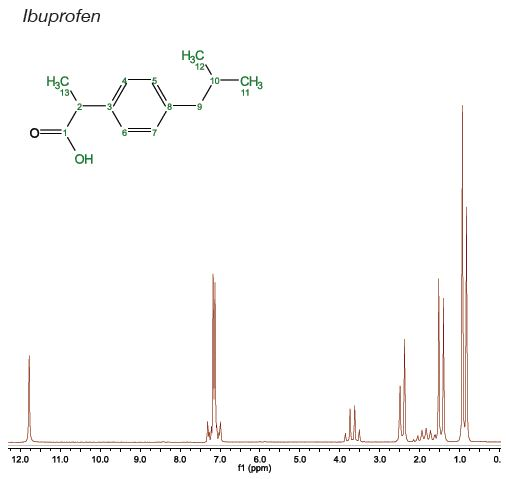

2 M Ibuprofen, 1D proton, single scan, 10 seconds.

2M Ibuprofen, 1D proton, single scan, 10 seconds.

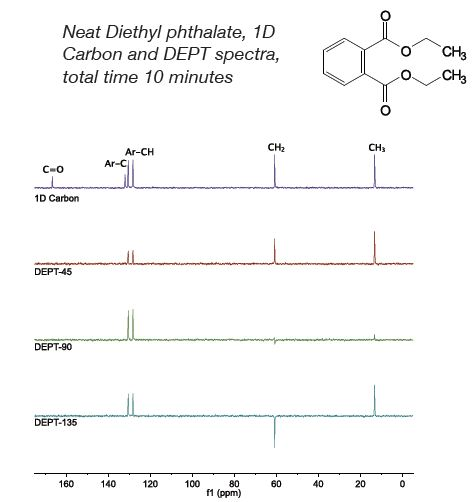

Neat Diethyl phthalate. 1D Carbon plus three DEPT spectra, total time 10 minutes.

Neat Diethyl phthalate. 1D Carbon plus three DEPT spectra, total time 10 minutes.

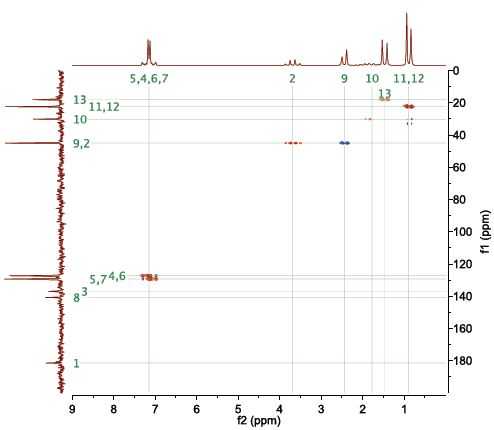

2 M Ibuprofen, HSQC-ME, ~1 hour.

2M Ibuprofen, HSQC-ME, ~1 hour.

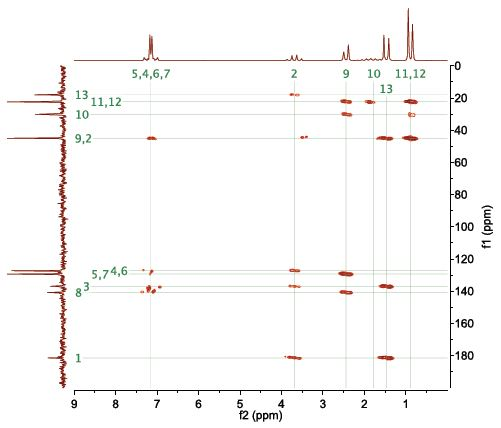

2 M Ibuprofen, HMBC, ~2 hours.

2M Ibuprofen, HMBC, ~2 hours.

Software

The Spinsolve software is user-friendly and easy to use.  It features a clean and intuitive interface and provides all the functionality required to acquire and process data.  Spectra can easily be exported to other data processing packages.

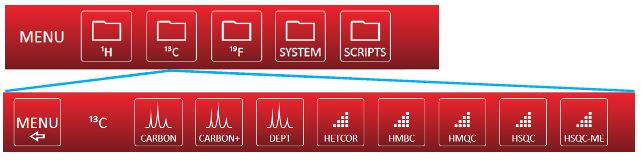

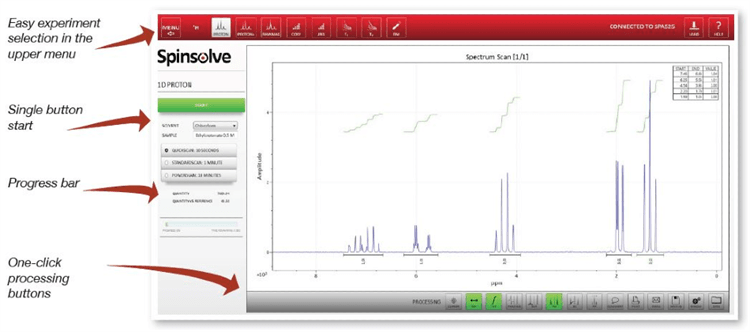

Intuitive Menu

All users need to do to begin running experiments with the Spinsolve 60 Carbon is to choose a nucleus and an experiment they wish to run and click start. All the calibration and configuration is done automatically by the instrument. Processing can be applied afterward, and users can generate PDF reports and export data to other software as required.



Spinsolve 60 Carbon Specifications

The specifications of the Spinsolve 60 Carbon are as follows:

  • Nuclei: 1H, 19F, 13C
  • Operating frequency: 60 MHz (1H)
  • 1H 50% Linewidth: <0.5 Hz
  • 1H 0.55% Linewidth: <20 Hz
  • 1H Sensitivity: >120:1 for 1% Ethyl Benzene
  • Operating Temperature Range: 20 °C to 25 °C (68 °F to 77 °F)
  • Dimensions: 58 x 43 x 40 cm (23” x 17” x16”)
  • Weight: 60 kg (120 lb)
  • Stray Field: <2 G all around system
  • Power requirement: 110-240 V AC.

The pulse sequences available on the Spinsolve 60 Carbon spectrometer include:

1H Sequences

  • 1D
  • Paramagnetic
  • 2D COSY
  • 2D TOCSY
  • 2D JRES
  • T1, T2
  • Reaction monitoring

19F Sequences

  • 1D
  • Paramagnetic
  • 2D F – COSY
  • 2D F – JRES
  • 2D FH – COSY
  • Reaction monitoring

13C Sequences

  • 1D
  • DEPT
  • HETCOR
  • HMBC
  • HMQC
  • HSQC
  • HSQC-ME

Other sequences are available. For details, contact Magritek.
