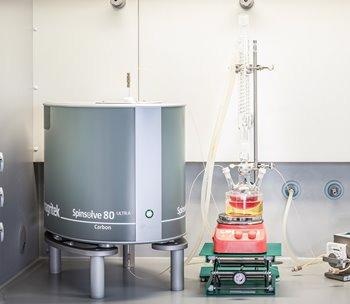

Highest Performance Benchtop NMR: Spinsolve 80 & Spinsolve 80 ULTRA

The Spinsolve 80 and 80 ULTRA benchtop NMR spectrometers from Magritek deliver the highest performance available in the market today.  The superior lineshape of the Spinsolve 80 ULTRA enables the best solvent supression possible for samples in protonated solvents such as reaction mixtures.

Features of Spinsolve 80 MHz

  • Highest 1H frequency—80 MHz
  • Maximum sensitivity—200:1 (dual-channel for 1% ethylbenzene)
  • Highest Resolution available:
  • Ultra: <0.25 Hz (50%)/<10 Hz (0.55%)/<20 Hz (0.11%)
  • Classic: <0.4 Hz (50%)/<16 Hz (0.55%)
  • All systems are cryogen-free
  • Autosampler available for all models
  • Flow cell reaction monitoring accessory
  • Available with pulsed field gradients
  • Unrivaled stability
  • Fast automatic built-in lock
  • Easy to use
  • Benchtop Weight—72.5 kg (160 lb)
  • Benchtop Size —58 x 43 x 40 cm (23″ x 17″ x 16″)

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

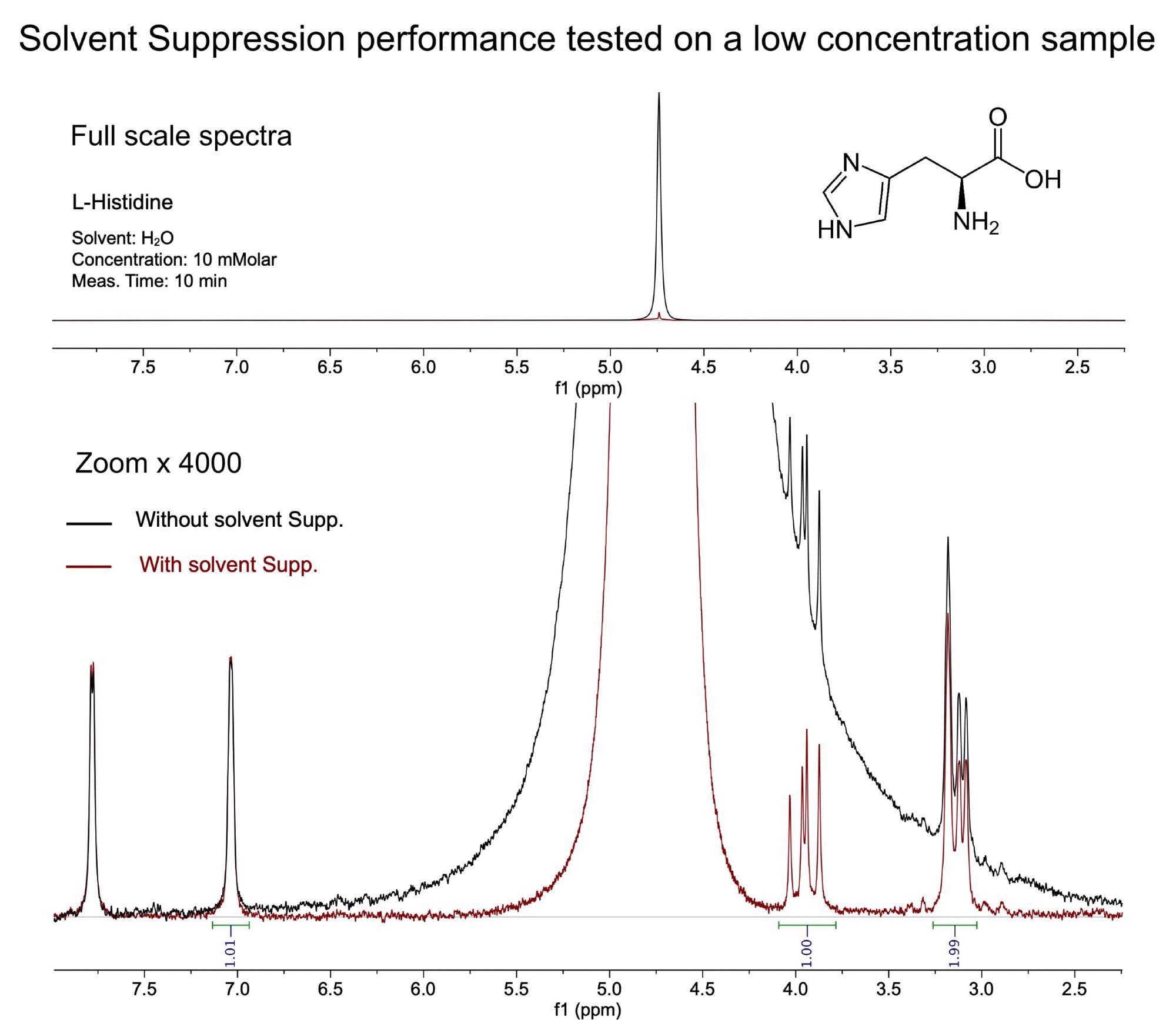

The solvent suppression perforamnce of the Spinsolve 80 ULTRA is show above. Notice that the histidine peak around 4ppm is baseline resolved and has the correct integral.

The Best Performance for Online Reaction Monitoring

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

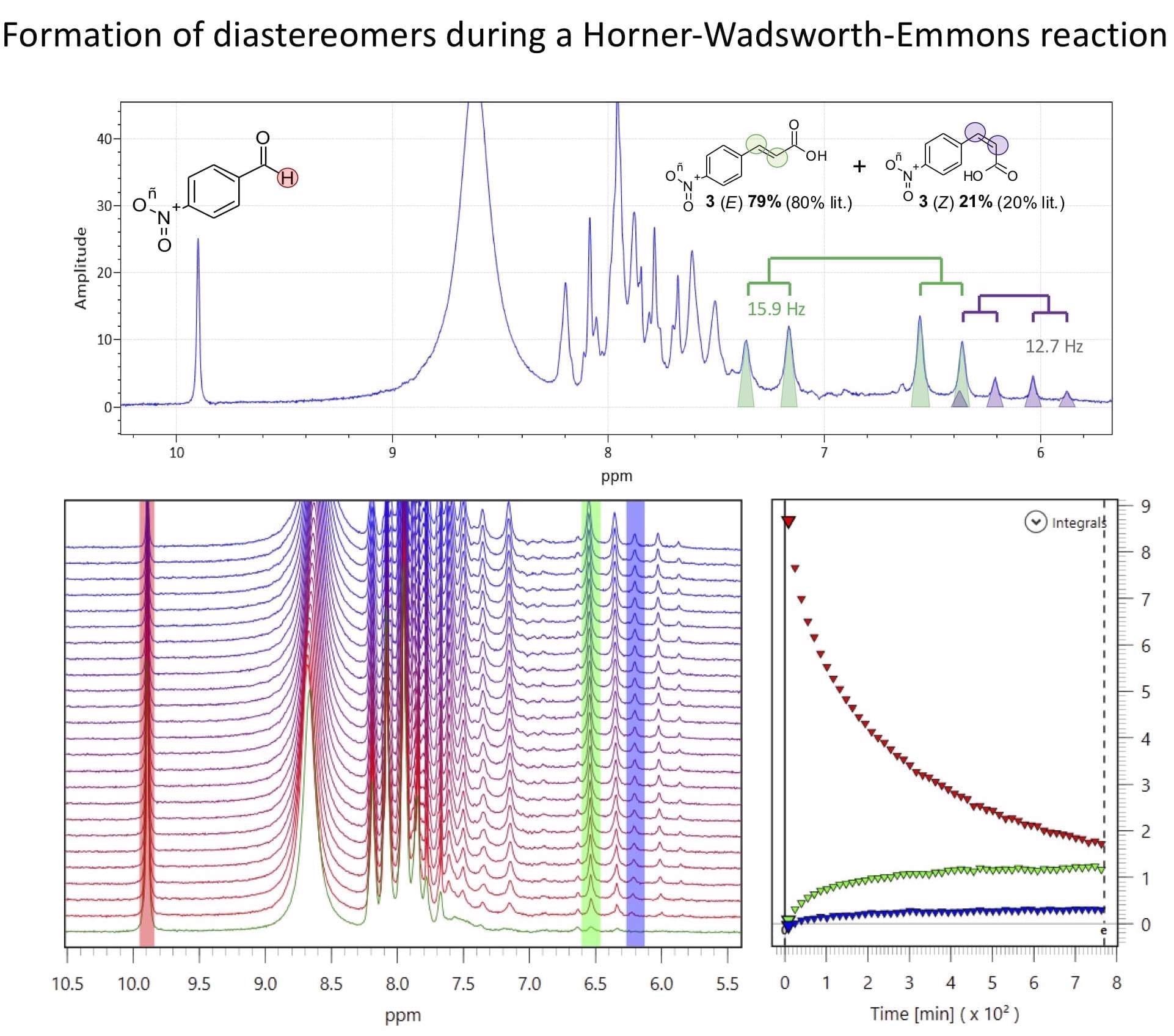

The Horner-Wadsworth-Emmons reaction shown above provides an excellent example of using the Spinsolve 80 ULTRA to follow a reaction where two stereoisomers (E- and Z-) are produced which can be quantified and followed at the reaction progresses.

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

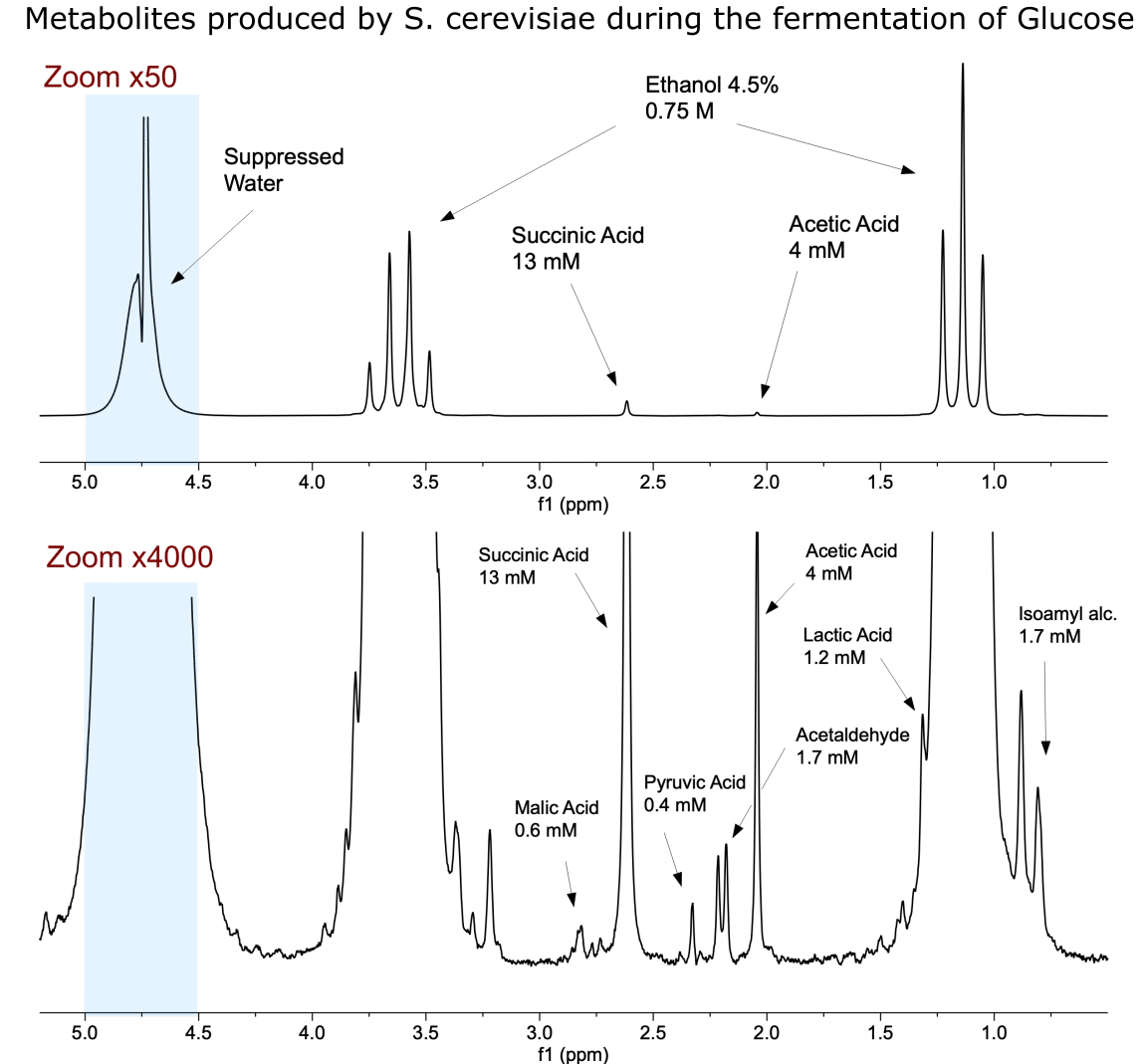

Fermentations can be followed where the increadible sensitivity of the Spinsolve 80 ULTRA enables the metabolites produced to be quantified and followed directly as the fermentation progresses.

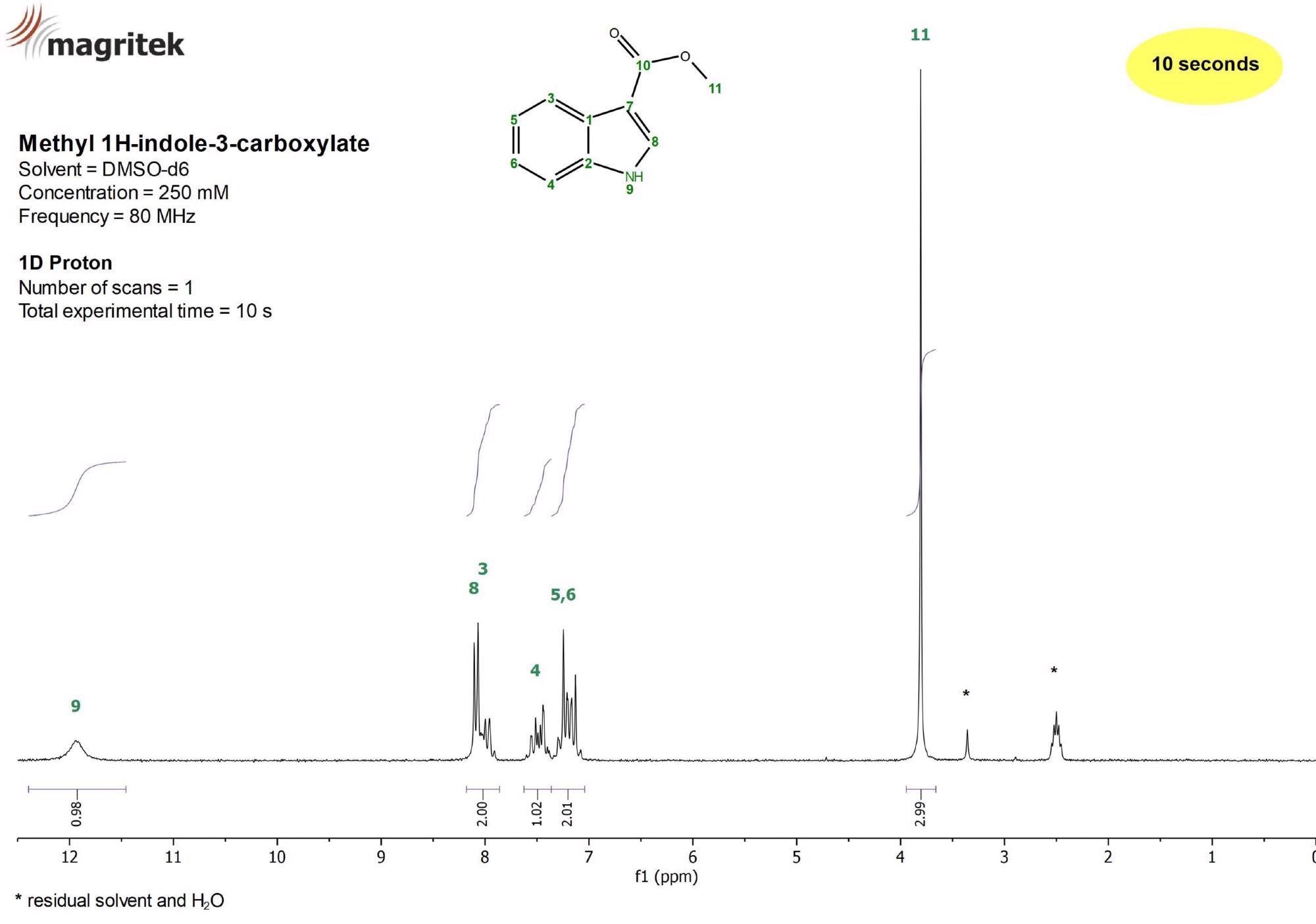

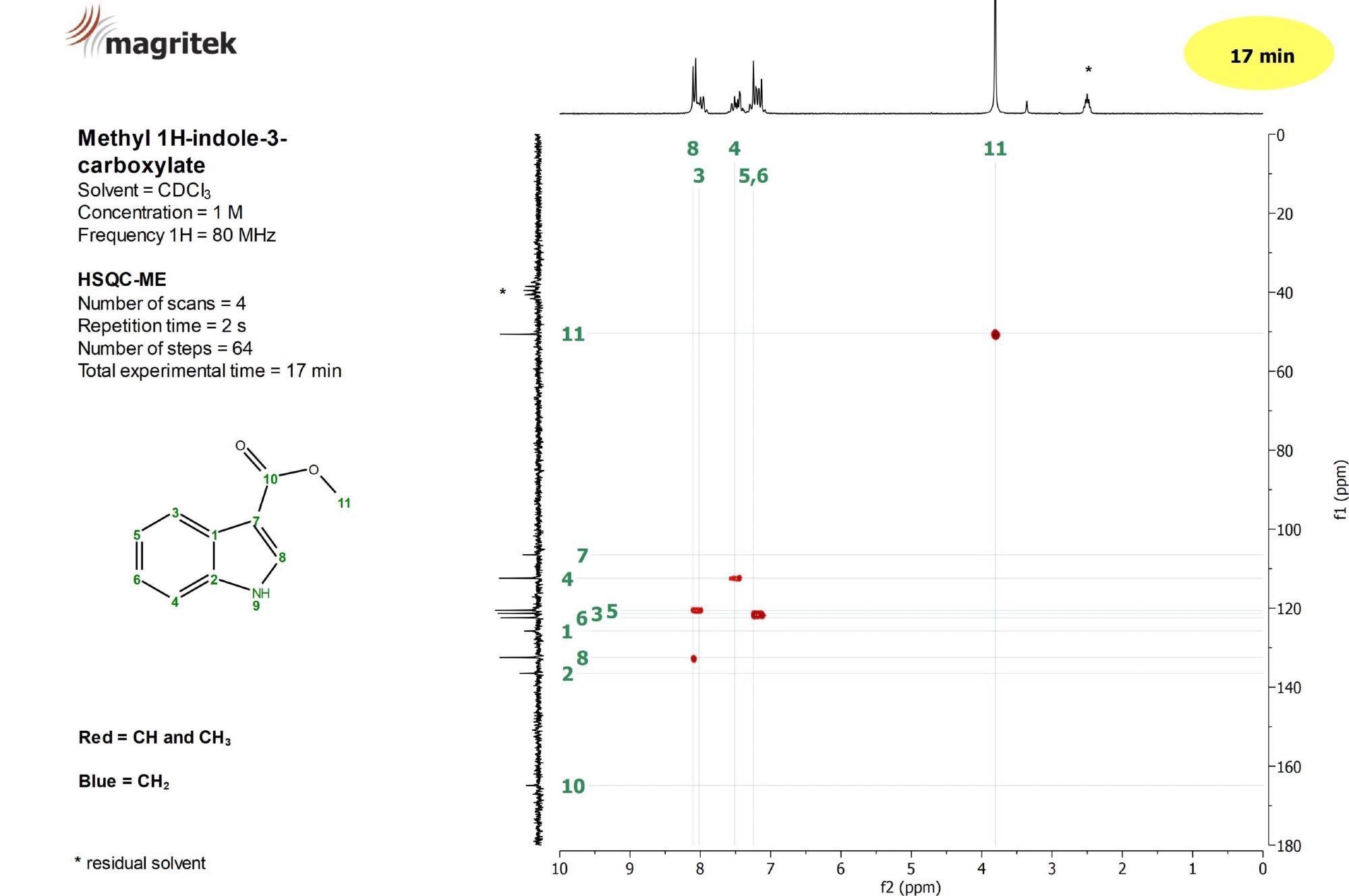

NMR SpectraExamples of Spinsolve 80

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

Solvent Suppression Performance for Samples in Protonated Solvents: Spinsolve 80 ULTRA

Image Credit: Magritek

Specifications

Nuclei—1H, 13C and 19F (other nuclei are also available)

  • Resolution:
    • Classic: <0.4 Hz (50%)/<16 Hz (0.55%)
    • Ultra: <0.25 Hz (50%)/<10 Hz (0.55%)/<20 Hz (0.11%)
  • Operating frequency: 80 MHz (1H)
  • Operating temperature range: 18°C to 28°C (65 °F to 82 °F)
  • 1H sensitivity (*) (dual-channel): >200:1 for 1% ethylbenzene

(*) Sensitivity is quantified in a single scan on a 1% ethylbenzene specimen mixed in deuterated chloroform. The signal employed for estimation is the one from the methylene group and the noise is estimated for a signal-free area between the methylene and aromatic signals.

  • Minimum sample volume: 200 µL
  • Sample: Standard 5 mm OD NMR sample tubes, measuring 7″ long
  • Cryogen-free
  • Deuterium solvent is not needed
  • Lock: Fast automatic lock
  • Weight: 72.5 kg (160 lb)
  • Dimensions: 58 x 43 x 40 cm (23″ x 17″ x 16″)
  • Voltage requirement: 100 to 240 VAC, 50/60 Hz
  • Stray field: <2 G all-around system
