Rapid, Benchtop NMR Analysis with the Spinsolve® Carbon

13C NMR is ideal for organic chemists performing routine molecular analysis. The unique sensitivity and superior resolution of the Spinsolve Carbon enable the power of proton-carbon NMR in a piece of equipment that fits on your benchtop. The Spinsolve Carbon is the most flexible and affordable spectrometer there is that can provide users with the benefits of carbon-13 NMR in their laboratories.

The Spinsolve Carbon is an ideal instrument for medicinal and pharmaceutical chemists, organic chemistry lecturers, small molecule research scientists, synthetic chemists monitoring reactions, academics running practical laboratory classes and post graduate chemistry students.

Key Features and Benefits

  • Standard 5 mm NMR tubes
  • 1D 1H, 19F and 13C experiments
  • T1 and T2 relaxation experiments
  • 2D COSY and homonuclear j-resolved spectroscopy
  • Composite pulse decoupling

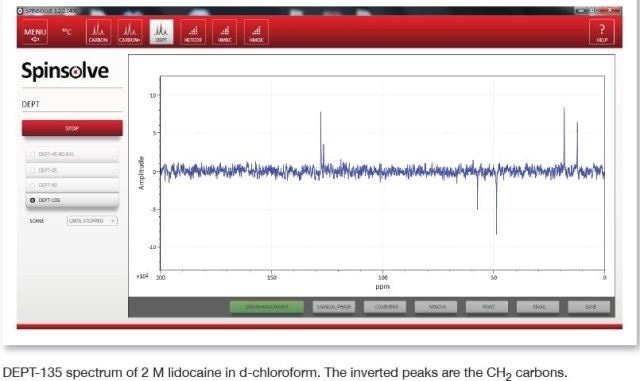

  • Spectral editing with DEPT

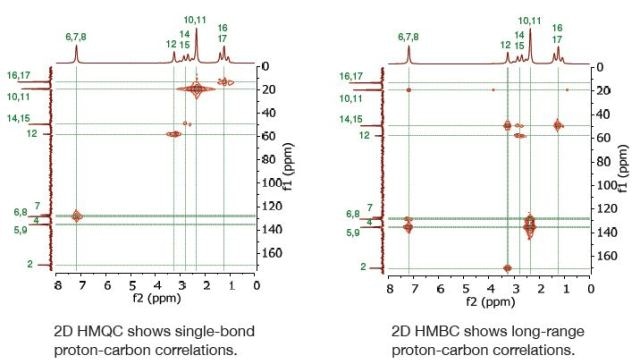

  • 2D heteronuclear correlation experiments - HETCOR, HMQC and HMBC
  • Cost effective, convenient and robust
  • Fast and easily operable
  • No Cryogens
  • Accessible
  • Exceptional performance
  • Low maintenance

Download the Brochure for More Information

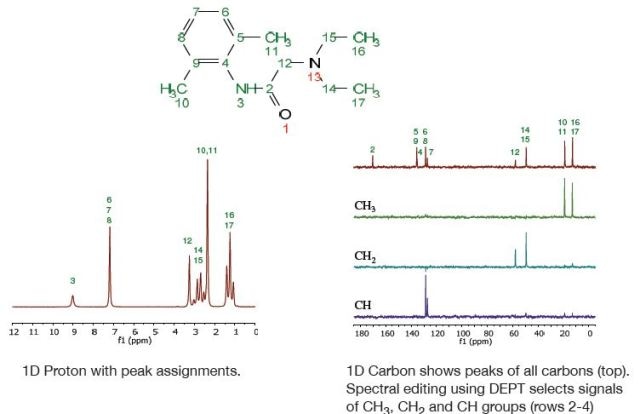

NMR Spectra of Lidocaine from the Spinsolve Carbon




Frequency 42.5MHz Proton, 10.8MHz Carbon
Resolution 50% linewidth < 0.5Hz (16ppb)
Lineshape 0.55% linewidth < 20Hz
Dimensions 58 x 43 x 40cm
Weight 55kg
Magnet Permanent and cryogen free
Stray field < 2G all around system
Magritek Spinsolve Carbon at Pittcon 2014
