General Purpose Hydraulic Fatigue - Dynamic and Fatigue System from Instron

Servohydraulic systems serve as the workhorse in most laboratories. They can perform a wide range of low and high cycle fatigue, fracture toughness, crack propagation, and other dynamic tests. Each system can be easily configured with suitable sized servo valve, manifold and hydraulic power unit to match the particular application.

All systems are fitted with the advanced features of the 8800 digital controller, Console Software and Instron®’s unique fatigue-rated Dynacell™ load cells. The WaveMatrix™ Dynamic Testing Software provides the support for running a number of dynamic tests. Other application specific software modules, such as LCF3 or any of Instron’s Fracture Mechanics Suite, permits other standardized tests to be worked.

These dynamic systems, when integrated with Bluehill® and suitable accessories, are perfect for operating a range of static tensile, tear, flexure, peel, compression, and friction tests.

Low-Capacity Servohydraulic Systems include:

  • 8872 Tabletop Axial Systems for up to 25 kN Capacity
  • 8801 Axial Systems for up to 100 kN Capacity
  • 8874 Tabletop Axial-Torsion Systems for up to 25 kN Capacity and 100 Nm Torsion

Medium-Capacity Servohydraulic Systems include:

  • 8803 Systems for 250 or 500 kN Capacity
  • 8802 Systems accepting actuators up to 250 kN Capacity

High-Capacity Servohydraulic Systems include:

  • 8805 Systems for up to 1000 kN Capacity
  • 8806 Systems for 2500 kN Capacity and above

Testing Systems

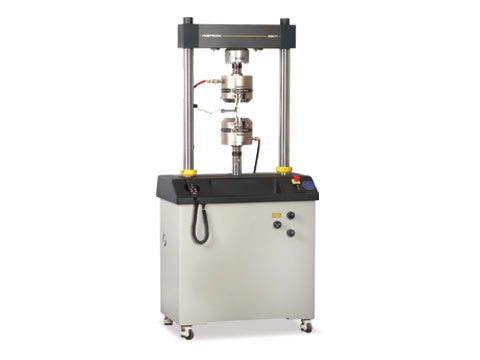

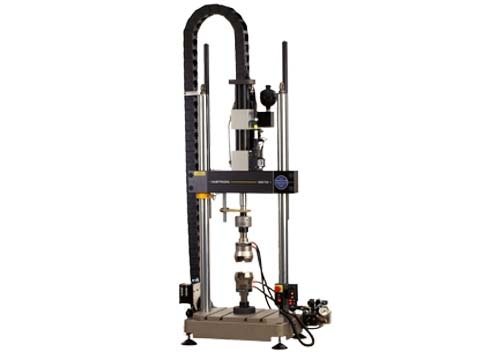

8872 (25 kN) Fatigue Testing Systems

8872 (25 kN) Fatigue Testing Systems

With the 8872 (25 kN) Fatigue Testing System, fatigue and static testing is accomplished on manufactured components, biomedical technologies, and advanced materials.

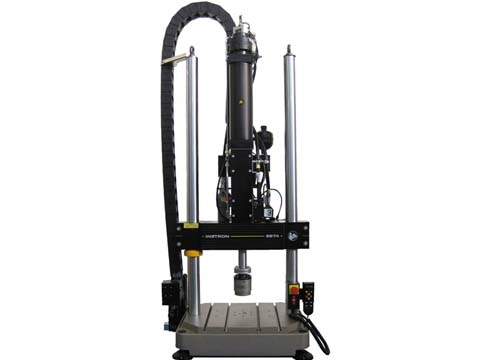

8874 (25 kN/100 Nm) Axial-Torsion Systems

8874 (25 kN/100 Nm) Axial-Torsion Systems

The 8874 Axial-Torsion Systems work for static and dynamic testing as a tabletop servohydraulic system requiring minimal space and delivering high precision.

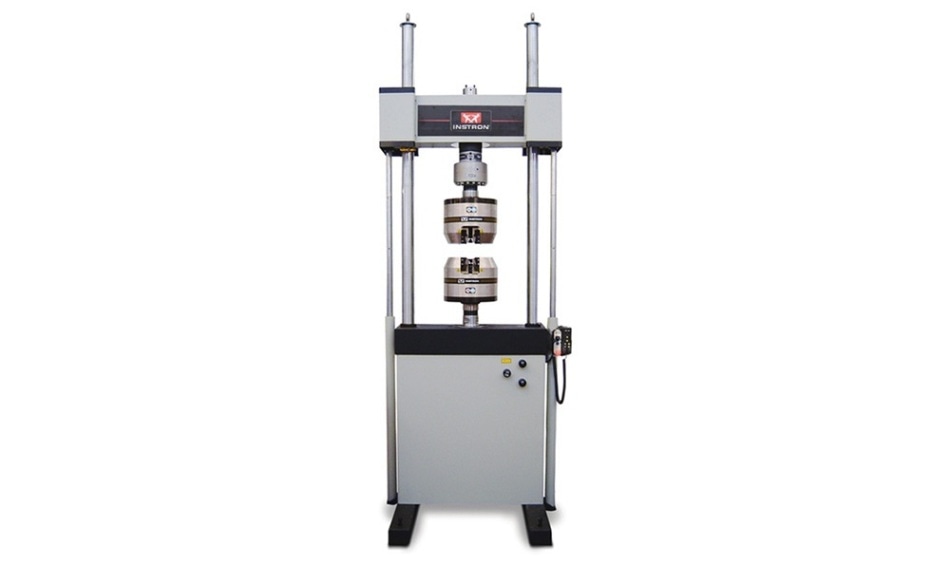

8801 (100 kN) Fatigue Testing Systems

8801 (100 kN) Fatigue Testing Systems

The 8801 Fatigue Testing System is a servohydraulic testing system for static and dynamic testing with a large work space, rigidity, precision alignment, and a capacity of up to 100 kN.

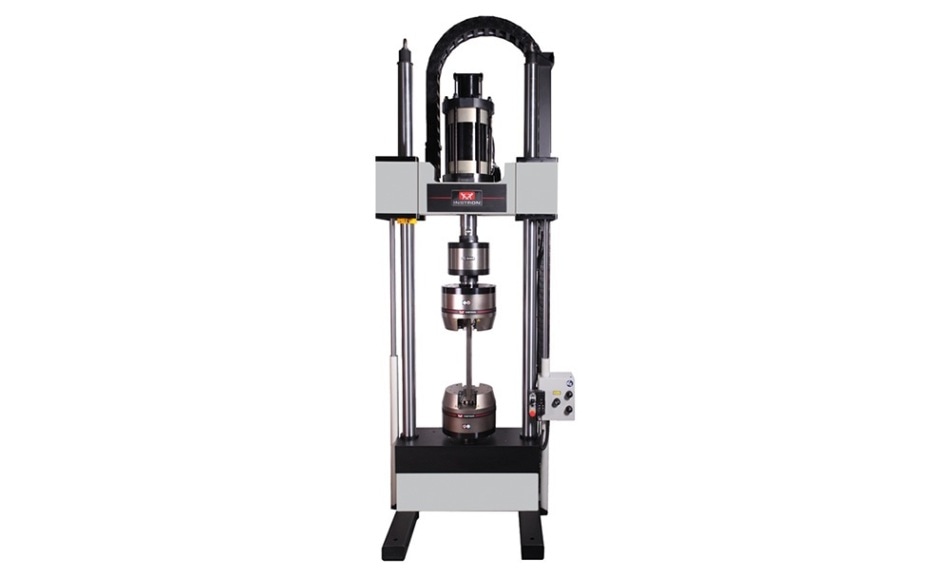

8802 (250 kN) Fatigue Testing System

8802 (250 kN) Fatigue Testing System

With a capacity of up to 250 kN, the 8802 Fatigue Testing System works for dynamic and static tests and features twin columns, stability, and precision.

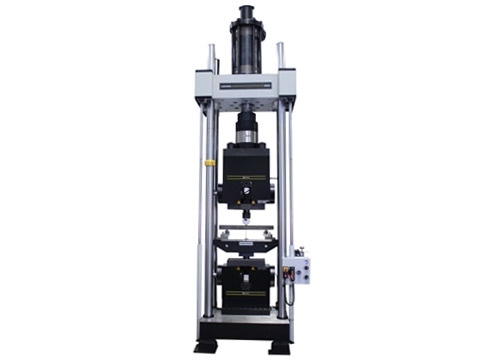

8803 (500 kN) Fatigue Testing Systems

8803 (500 kN) Fatigue Testing Systems

With a capacity of up to 500 kN, the 8803 Fatigue Testing System works for dynamic and static tests and features twin columns, stability, and precision.

8805 (1000 kN) Fatigue Testing Systems

8805 (1000 kN) Fatigue Testing Systems

For dynamic and static testing from a turnkey solution, make use of the 8805 Fatigue Testing System with a 1000 kN capacity and four columns.

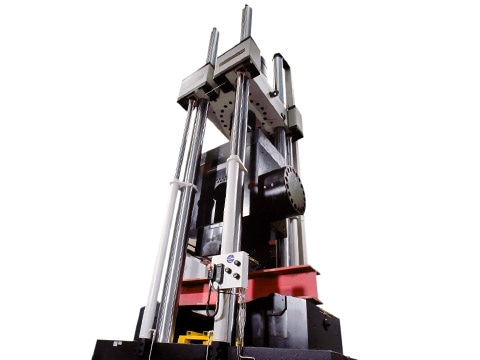

8806 (2500 kN+) Fatigue Testing Systems

8806 (2500 kN+) Fatigue Testing Systems

For up to 5000 kN dynamic and static testing, the 8806 Servohydraulic Fatigue Testing Systems can be used along with a 8800 controller and Dynacell load cells.

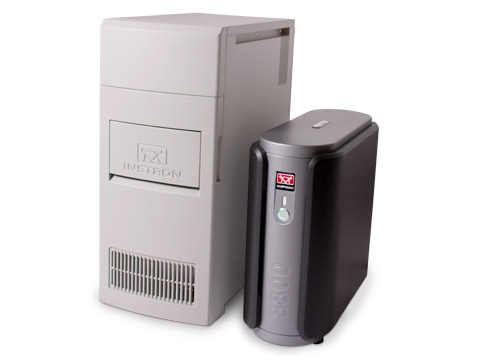

8800 MT Controller / Controller Upgrades

8800 MT Controller / Controller Upgrades

Controller Upgrades are a smart way to provide existing hydraulic equipment a new lease of life and adopt the benefits of advanced electronics and software to one’s laboratory.

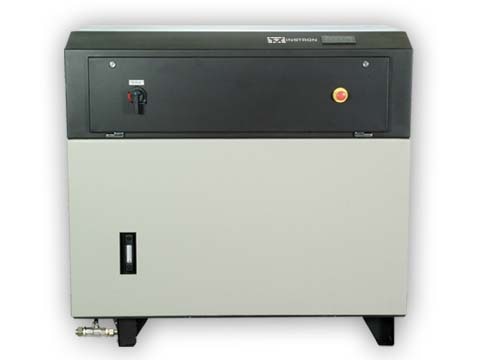

3520 Series Hydraulic Power Units

3520 Series Hydraulic Power Units

Users finally have the opportunity to configure a Hydraulic Power Unit (HPU) to meet all testing requirements and site conditions with unmatched efficiency and low environmental impact.
