Horizontal Tensile Testers – MHT Series

For superior tensile testing capability and throughput, Tinius Olsen offers a variety of horizontal tensile testing machines in capacities of 5 kN (1000 lbf), 25 kN (5000 lbf), 150 kN (30,000 lbf), and 300 kN (60,000 lbf).

These horizontal testing machines offer exclusive advantages over vertically-oriented testers by allowing a variety of accessories to be mounted next to the machine to transform it into a completely automatic testing station. They are engineered mainly for production departments and are usually in constant use; however, the grips can be altered to house differently shaped samples and alternate grips can be provided for customers when a test needs change.

The horizontal extensometer that is usually used with the machine has an exceptional design that integrates pneumatic controls that automatically lower the arms before the test and raise the arms at the end of the test. Air bearings on the extensometer offer accurate strain measurement through fracture.

The operation of the standard machine is sophisticated, delivering accurate and repeatable specimen placement against mechanical stops, extensometer removal, extensometer lowering (if supplied), automatic clamping, testing, and grip return to the starting position, all with a single mouse click.

This progressive operation can be further developed when the PC-based machine control software offered with the machine is upgraded to incorporate data acquisition and data analysis.

Then, further automation can be realized by the incorporation of a robot and sample racks. In this configuration, the robot will pick a sample from a sample rack and insert it into the machine grips. It will then wait for the end of test so that the broken sample pieces can be taken out of from the grips and placed in an appropriate disposal bin.

If a sample measuring station and barcode reader are added to the system, the entire testing process is automated with the sole operator requirement being the loading of the samples in the sample rack. The test data that is produced can be included into corporate manufacturing and resource planning software guaranteeing that quality control data is a fundamental part of operations.

Specifications

Model   MHT-1,000 MHT-5,000 MHT-30,000 MHT-60,000
Capacity lbf
kN
kg
1,000
5
500
5,000
25
2,500
30,000
150
15,000
60,000
300
30,000
Maximum crosshead travel in
mm
17
430
17
430
20
500
20
500
Grip actuation   Pneumatic Pneumatic Hydraulic Hydraulic
Testing speed range in/min
mm/min
0.002-20
0.05-500
0.002-20
0.05-500
0.002-10
0.05-250
0.002-10
0.05-250
Dimensions HxWxD in
mm
14 x 48 x 28
356 x 1219 x 711
41 x 61 x 29
1041 x 1549 x 737
50 x 70 x 20
1257 x 1770 x 514
48 x 77 x 21
1229 x 1965 x 533
Weight lb
kg
2000
910
2000
910
2700
1225
2700
1225
Console dimensions in
mm
N/A
N/A
N/A
N/A
40 x 48 x 31
1016 x 1219 x 787
40 x 48 x 31
1016 x 1219 x 787
Console weight lb
kg
N/A
N/A
N/A
N/A
880
400
880
400



  • Load measurement accuracy +/-0.5% of applied load from 0.2% to full capacity
  • Speed accuracy 0.1% of set speed
  • Position measurement accuracy 0.1% of reading
  • Operating temperature range 32-100 °F (0-38 °C)
  • Humidity range 10-90% non-condensing, web bulb method
  • Storage temperature range 14-115 °F (-10-45 °C)
  • Clean Air Dry air filtered to 50 µm at up to 85 psi (5.9 bar) minimum Power Standard optional voltages 110/240 VAC, 50-60 Hz, one-phase for small machines, three-phase for high capacity machines; power must be free of spikes and surges beyond 10% of the nominal voltage

Notes:

1. Load weighing system meets or exceeds the requirements of the following standards: ASTM E4,EN 10002-2, BS 1610, DIN 51221, ISO 7500-1. Tinius Olsen recommends that systems are verified at installation in accordance with ASTM E4 and ISO 75001.

2. Alternate, lower capacity load measurement cells can be supplied for these frame capacities.

3. Strain measurement system meets or exceeds the requirements of the following standards: ASTM E83,EN 10002-4, BS 3846 or ISO 9513.

4. Specifications are subject to change without notice

Key Features

  • Automatic extensometer placement and removal
  • Rapid, easy specimen loading
  • Automatic specimen gripping
  • Grips return to start position automatically
  • Auto-ranging for both load and strain
  • Higher throughput of test samples
  • Accurate strain measurement through failure

Optional Features

  • Sample dimension and barcode reading
  • Robotic loading and removal of samples
  • Instrumentation and determination of R value

Horizon Software

Besides data collection and presentation, Tinius Olsen’s Horizon software is programed to help automate operations, from R&D to the charting and analysis of QC testing. Among the numerous features offered are: test routine library; test, output, method, and result editors; simultaneous multiple machine control; and multilayered security. The software is meant for data acquisition, data analysis, and closed loop control of virtually all Tinius Olsen testing machines. Horizon software also includes:

  • Generation of user customized reports
  • Standard SPC programs for X-bar, R and frequency distributions/histograms
  • Recall of data that spans various test modules
  • Ability to recall, replot, and rescale test curves
  • Multilingual capabilities
  • User-configurable machine parameter and control settings

Tinius Olsen's Horizontal Tensile Testers – MHT Series

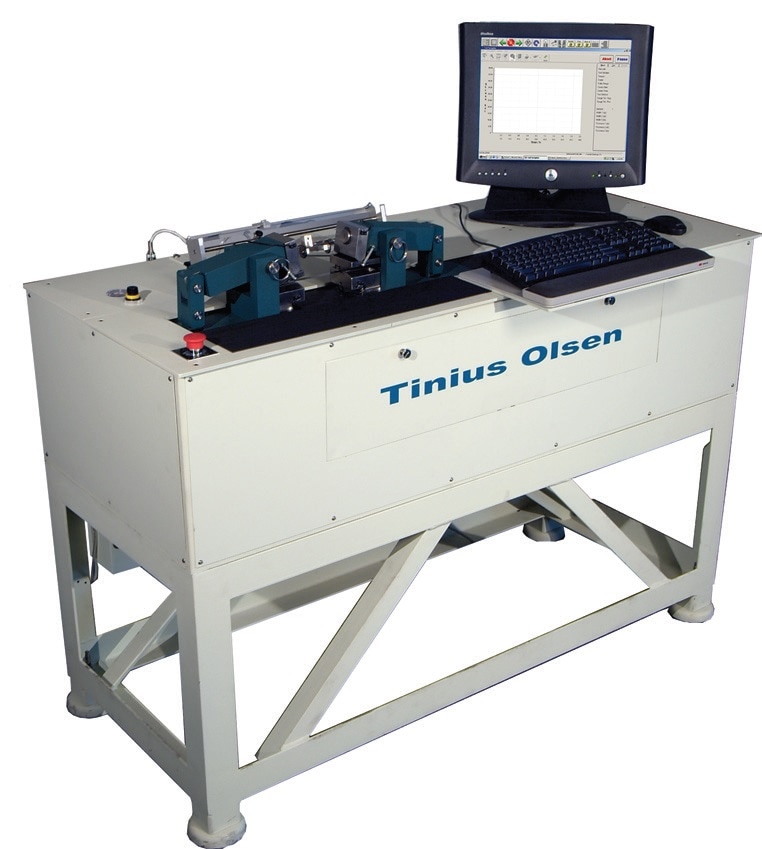

Basic 25 kN capacity horizontal tensile testing machine, shown with optional extensometer

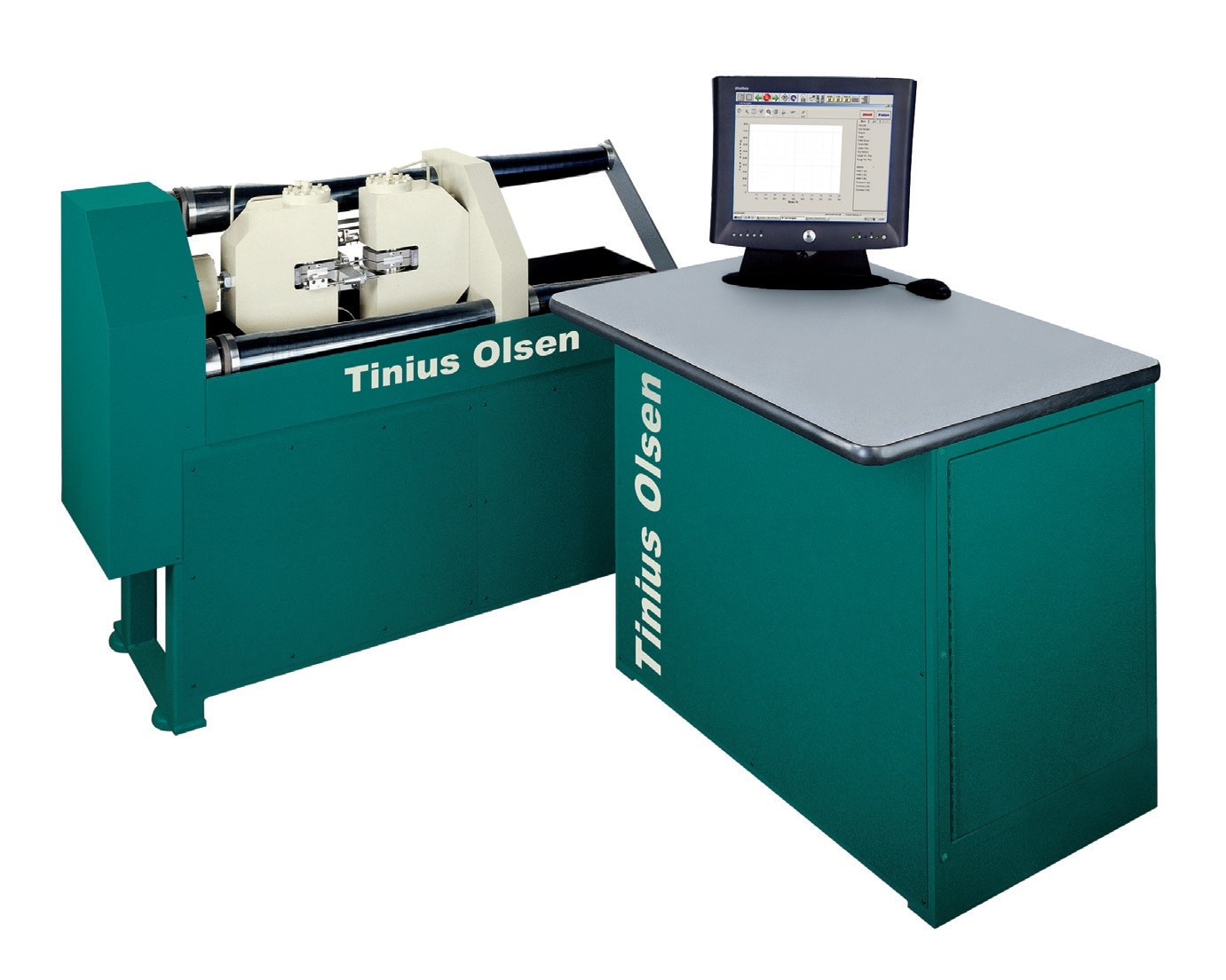

150 kN capacity horizontal tensile testing machine shown with optional extensometer and PC

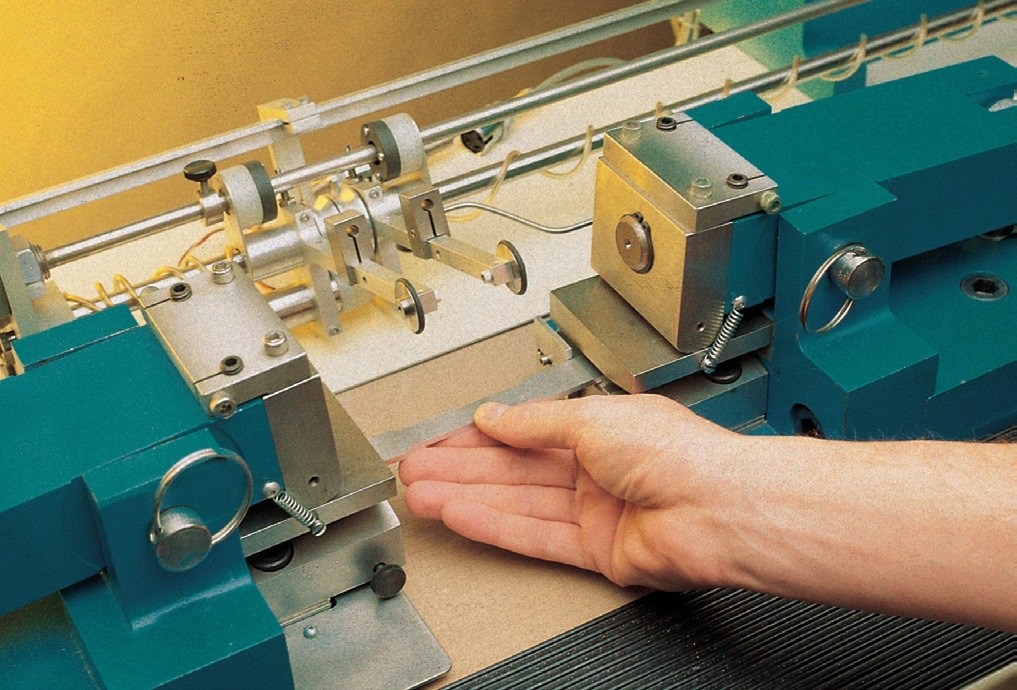

Close up of unique extensometer that can stay on to sample fracture. The sample is loaded against the mechanical stops and the test started — the rest is automatic

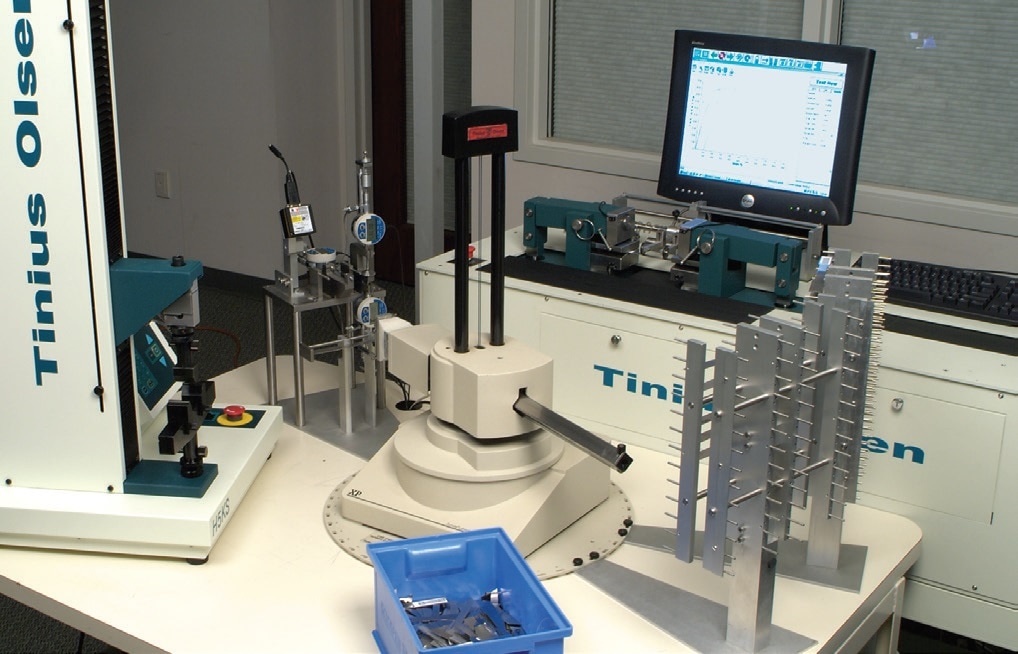

Detail showing the pick-and-place robot, sample racks, laser barcode reader, sample dimension measuring station, broken sample bin and another test station. This second test station could be flexure, hardness or another kind of physical test
