The model 1500SL is engineered for testing the shear, flexural, compression, and tensile strength of materials and components. Its durable construction, using premium materials and components, reinforces Tinius Olsen’s reputation for reliable performance, user-friendly operation, and long-lasting durability.
Tinius Olsen hydraulic testers have long set the industry standard for precision, durability, and versatility in universal testing equipment. With thousands of systems in use globally, the SL series continues to represent the benchmark in hydraulically powered universal testing machines.
Features and Benefits
- Friction-free piston operation ensures smooth, controlled performance with minimal downtime.
- Several interface options are available, including a wireless Bluetooth panel, a traditional tethered handheld unit, or a virtual machine controller.
- All system interface types are compatible with Horizon software for advanced data analysis.
- The system can apply forces up to 300 kN (60,000 lbf) in tests such as shear, transverse, tension, compression, and others.
- Its durable four-column design supports the testing of larger and more complex samples.
Image Credit: Tinius Olsen
Options and Accessories
- A wide range of extensometers and deflectometers is available using video, encoder, laser, strain gauge, and/or LVDT technologies.
- Crossheads can be supplied in fully open, semi-open, or closed formats to simplify specimen handling.
- The top crosshead can be made adjustable, and columns may be notched to allow repositioning for more ergonomic access.

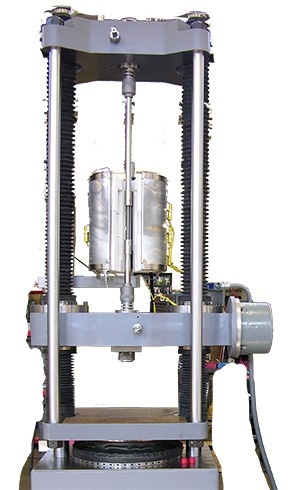

- Environmental chambers and furnaces can be added for testing under high or low temperature conditions.
- Grips for flat or round tensile specimens can be integrated directly into the test head.
- Column extensions of up to 914 mm (36 in) are available to expand the test area. Note: floor drilling is required for screw-type extensions.
- Safety enclosures with interlocks can be installed to protect users from high-energy specimen failures.
Image Credit: Tinius Olsen
