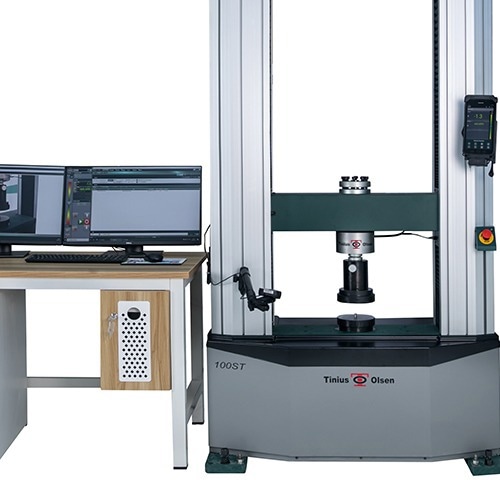

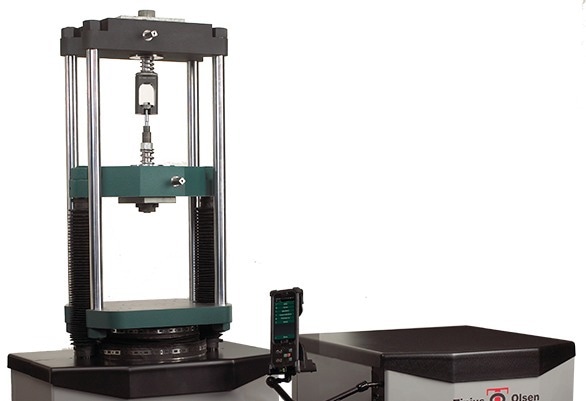

The model 100ST is built to perform tension, compression, flexure, and shear strength testing on a wide range of materials and assemblies. Its durable construction uses high-quality materials and components, supporting Tinius Olsen’s reputation for reliable system performance, ease of use, and long-term durability.
A selection of loadcells in different capacities enables accurate applied load measurements from small specimens to those that approach full system capacity. When configured with grips, strain measurement instruments, and Horizon data analysis software, the system becomes a complete and capable testing solution.
Features and Benefits
- Suitable for tension, compression, flexure, shear, and other testing to a maximum force of 100 kN (20,000 lbf)
- The machine column includes 12 full-length T slots to allow accessories to be securely mounted to the frame
- Various interface options are available, including a tethered handheld unit, a wireless Bluetooth panel, or a virtual machine controller
- All interface options integrate with Horizon data analysis software
- Built-in pneumatic distribution ports provide local air supply for pneumatic grips
- Complies with or exceeds national and international standards for materials testing systems
Image Credit: Tinius Olsen
Options and Accessories
- Test frame can be extended by up to 400 mm / 16 in to increase test area size
- Grips and fixtures can be easily mounted securely with a simple locking pin, which also allows simple and rapid changes
- Safety enclosures with interlocks can be installed to protect operators from violent specimen breaks

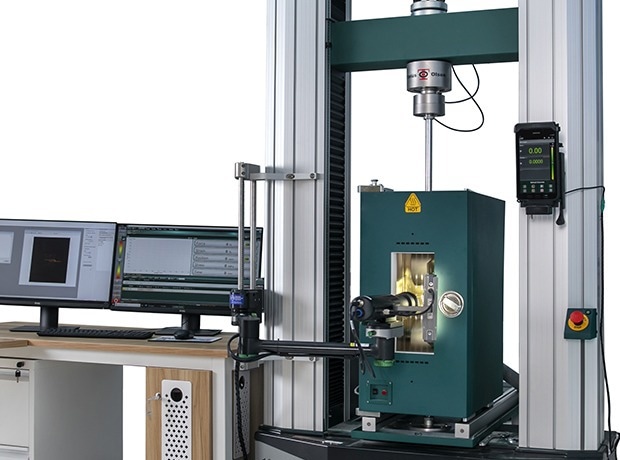

- Furnaces and environmental chambers can be installed for testing at high or low temperatures
- Full range of precision extensometers and deflectometers are available using video, laser, encoder, strain gauge, and/or LVDT technologies
- Tinius Olsen’s Horizon software can be connected to the tester by the operator
Image Credit: Tinius Olsen
