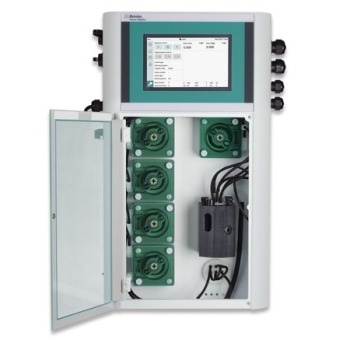

2029 Process Photometer from Metrohm

Metrohm’s 2029 Process Photometer carries out sensitive photometric absorption measurements in the visible light range. Since the instrument has detection limits in the low-ppb range, it is ideal for a range of applications.

A high-performance compact photometer module, which forms the core of the analyzer, is designed for 24/7 online measurement. It consists of a thermostated cuvette equipped with 3 cm light path and LED technology, guaranteeing constant and accurate measurements regardless of the environment.

By leveraging differential absorbance measurements, the color development stabilization can be automatically detected. Users can easily transfer the photometric laboratory techniques to the 2029 Process Photometer and thus remove any bias in the outcomes for enhanced process validation.

The 2029 Process Photometer is ideally suited for a number of markets, such as environmental, chemical, petrochemical, semiconductor, energy/power, food and beverage, and potable water.

Preferred applications are:

  • Silica
  • Phosphate
  • Nickel
  • Chlorine
  • Copper
  • Zinc
  • Ammonia
  • Chromium
  • Nitrite
  • Nitrate
  • Hardness and more

Technical Specifications

  • Weight: 21 kg
  • Number of sample streams: 1–2
  • Ingress protection: IP66
  • Dimensions (Width x Height x Depth): 326 mm x 572 mm x 273 mm
  • Ambient temperature: 5–40 °C
