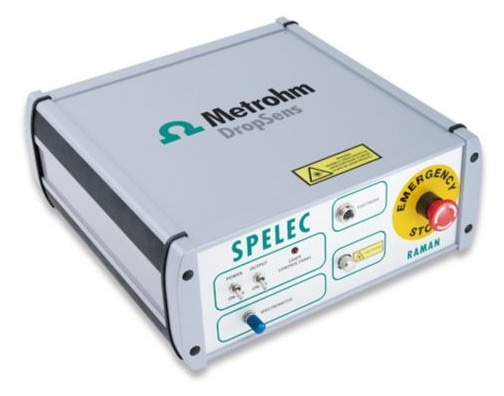

SPELECRAMAN is a tool for spectroelectrochemical Raman measurements. It combines a laser class 3B (785 nm ± 0.5), a bipotentiostat/galvanostat, and a spectrometer (wavelength range 787 – 1027 nm and Raman shift 35 – 3000 cm-1) into one box.
It also comes with specialized spectroelectrochemical software that synchronizes optical and electrochemical studies.
Tech Specs
Source: Metrohm USA Inc.
| . |
. |
| Operating modes |
Bipotentiostat; Potentiostat; Galvanostat |
| PC interface |
USB |
| Power |
5 V DC |
| Potential range in volt |
±4 V |
| Maximum current in Ampère |
±40 mA |
| Number of current ranges |
8 |
| Number of current ranges remarks |
±1 nA to ±10 mA |
| Number of potential ranges (galvanostat) |
2 |
| Number of potential ranges remarks (galvanostat) |
±100 mV to ±1 V |
| Multichannel instrument |
NO |
| Maximum number of channels |
1 |
| Maximum number of WE sharing AUX and REF |
2 |
| Potential accuracy |
±0.2% |
| Current accuracy |
≤0.5% of current range at 100 nA to 10 mA |
| Potential resolution |
1 mV |
| Current resolution |
011% of current output range |
| Measured potential resolution |
0.012% of potential range |
| Measured current resolution |
0.025% of current range (1 pA on lowest current range) |
| Spectrometer (SPM) Detector |
2D CDD Array, Back thinned TE Cooled |
| SPM Pixels |
1044 x 64 |
| SPM Wavelength range |
787 - 1027 nm |
| SPM Optical resolution |
< 4 cm-1 |
| SPM Signal-to-noise ratio |
1000: 1 (at full signal) |
| SPM A/D resolution |
18 bit |
| SPM Dynamic range |
85000: 1 |
| SPM Integration time |
8 ms to 60 min |
| SPM Fiber optic connector |
SMA 905 |
| Light Source (LS) wavelength range |
785 ± 0.5 nm |
| LS Stability |
(15 to 45 °C) |
| LS Fiber optic connector |
FC |
| Dimensions |
25 X 24 X 11 cm |
| Weight of the instrument in kg |
3.4 |
| Spectral line width |
<0.1 nm FWHM |
| Optical power output |
500 mW (375 mW typical) |
| Output power stability |
±1% |
| Raman shift |
35 - 3000 cm-1 |
