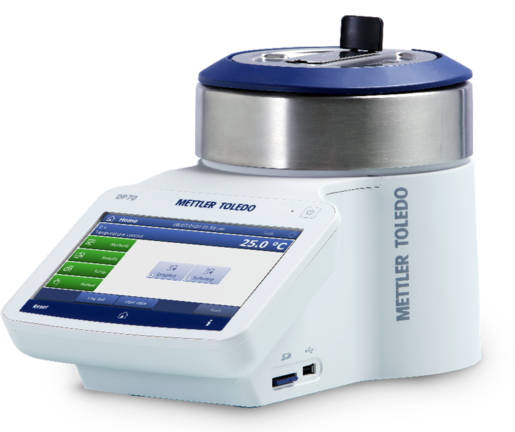

With the DP70, the determination of two samples' dropping and softening point can be carried out simultaneously, to a maximum temperature of 752 °F/400 °C.
Features
Simple One ClickTM Operation
Measurements can be started with a single button click with the DP70 OneClick™ user interface.
Color Video Recording
The high-resolution on-screen video allows measurements to be examined in real time or replayed as required to check the results.
Trusted Performance
The DP70 automatically obtains highly accurate dropping and softening point temperatures using visual camera observation and digital image analysis.
Comprehensive and Intuitive Operation
The large color display and touch screen, combined with the easy One Click ™ user interface, eliminate training and operator influence. The user can easily familiarize themselves with the DP70.
Image Credit: Mettler Toledo – International
Efficient Analyses
Short heating and cooling times enable more analyses to be conducted in a shorter time, while the simultaneous measurement of two samples also cuts time.
Image Credit: Mettler Toledo – International
Fast and Accurate Sample Preparation
The accessory box includes all the equipment needed for accurate and efficient sample handling and preparation. Disposable glassware and cups eliminate time-consuming cleanup.
Image Credit: Mettler Toledo – International
Conformity with Relevant Standards
Adhering to the relevant national and international standards and regulations, including ASTM International and Ph. Eur, is fully supported.
Image Credit: Mettler Toledo – International
Complete Results Documentation
All results are securely stored in an archive and can be found easily at any time. Analyses from the Dropping Point System DP70 can be saved as PDF files, printed, or sent straight to a computer.
Image Credit: Mettler Toledo – International
User Management
Users can customize their instrument settings using shortcuts and the chosen operator language. The user management system, which allows the user to define different levels of access, further protects data.
Image Credit: Mettler Toledo – International
Specifications
Product Specifications. Source: Mettler Toledo - International
| . |
. |
| Application Type |
Dropping Point, Softening Point |
| Data Export |
to SD Card, USB Stick, or PC |
| Heating Rate (/min) |
0.1 °C – 20 °C |
| Max. number of methods |
60 |
| Number of Cups |
2 |
| Number of One Clicks™ |
12 Per User |
| PDF Reports |
Yes |
| Standards 1 |
IP396, DIN 51920, ASTM D3461, ISO 4625-2, ASTM D3104, ASTM D6090, ASTM D3954, AOCS Cc 18-80, Ph. EUR 2.2.17 |
| Stored Results |
100 |
| Substances in database |
100 |
| Temp. Range |
RT – 400 °C |
| User Management |
Password protection, Protection of Settings, Multiple Users |
| Video |
Color, 120 minutes |
| Display / User interface |
7" color display with touchscreen |
| Languages |
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean |
| Dimensions (Width × Height × Depth) |
19 × 35 × 23 cm |
| Weight |
4 kg |
| Standard compliance |
www.mt.com/mpdp-norms |
