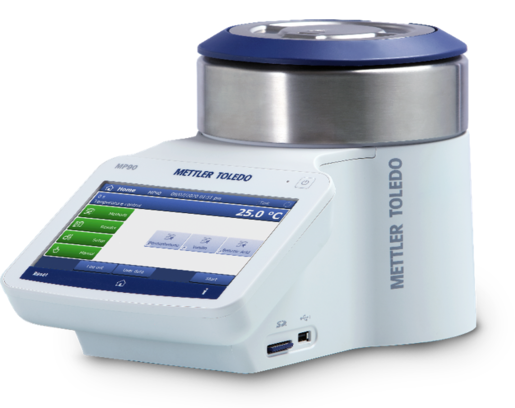

The MP90, designed for maximum throughput, can simultaneously determine up to six melting point/melting range samples at a maximum temperature of 400 °C or 750 °F.
Features
Conformity with Current Standards
Full support for compliance with relevant international and national norms and standards, such as Ph. Eur., USP, ChP, and JIS, is provided.
User Management
Instrument settings can be customized using shortcuts and the chosen operator language. The user management system allows for different levels of access, preserving vital data.
Data Integrity and Traceability
LabX® PC software easily handles measurement results, providing full support for 21 CFR Part 11 compliance and facilitating smooth and seamless LIMS/SAP integration.
Quick and Simple Calibration
The equipment features preprogrammed calibration and adjustment protocols, with a ready-to-use VPac™ verification kit available for evaluating instrument performance.
Simple One Click™ Operation
Measurements can be made with just one button click using the One Click™ user interface.
Color Video Recording
Measurements are visible in real time and can also be easily replayed to confirm the outcomes, using the high-resolution on-screen video.
Trusted Performance
Highly accurate melting point (or melting range) temperatures are obtained through the automatic detection of transmission intensity.
Comprehensive and Intuitive Operation
The large color display and user-friendly One Click™ interface minimize training and operator influence, guaranteeing rapid familiarization.
Maximum Efficiency
Six samples can be measured simultaneously, maximizing efficiency. Short heating and cooling times mean more analyses can be completed in a shorter amount of time.
Fast and Accurate Sample Preparation
The accessory box includes all of the equipment needed for proper sample handling and preparation. Cutting-edge sample preparation tools make filling out easier and allow for the simultaneous insertion of multiple capillaries.
Specifications
Product Specifications. Source: Mettler Toledo - International
| . |
. |
| Application Type |
Melting Point |
| Compliance / Data Security |
Audit Trail (requires LabX software), 21 CFR part 11 / EU Annex 11 (requires LabX software) |
| Data Export |
to SD Card, USB Stick or PC |
| Heating Rate (/min) |
0.1 °C – 20 °C |
| LIMS connectivity |
Yes |
| Min. Cooling Time (Tmax to 50 °C) |
6 minutes |
| Min. Heating Time (50 °C to Tmax) |
5 minutes |
| Min. Number of Melting Point Capillaries |
6 Melting Point Capillaries |
| Number of One Clicks™ |
12 Per User |
| PDF Reports |
Yes |
| Stored Methods |
60 |
| Stored Results |
100 |
| Substances in database |
100 |
| Temp. Range |
RT – 400 °C |
| User Management |
Password protection, Protection of Settings, Multiple Users |
| Video |
color, 300 minutes |
| Display / User interface |
7" color display with touchscreen |
| Languages |
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean |
| PC Software |
LabX Express and Server |
| PC Software (optional) |
Yes |
| Dimensions (Width × Height × Depth) |
18 × 35 × 19 cm |
| Weight |
4 kg |
| Standard compliance |
www.mt.com/mpdp-norms |
