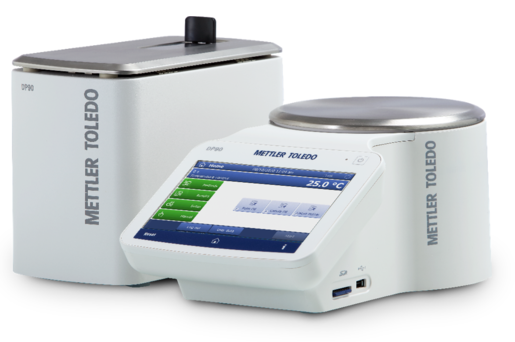

The DP90 can simultaneously determine the dropping and softening points of two samples at temperatures ranging from –20 °C to 400 °C. It has a control unit and a separate measuring cell, which can be stored in a refrigerator or deep freezer.
Features
Simple One ClickTM Operation
The DP90 Dropping Point System has a One ClickTM user interface, so users only need one button to begin measurements.
Trusted Performance
Digital image analysis and visual camera observation allow highly accurate dropping and softening point temperatures to be automatically taken.
Determination at Sub-Ambient Temperature
When kept in a freezer or refrigerator, the external cell allows accurate characterization of edible fats, creams, and ointments.
Comprehensive and Intuitive Operation
The One Click™ interface's large color display and touch screen minimize operator influence and training.
Image Credit: Mettler Toledo – International
Efficient Analyses
Using the DP90 Dropping Point System's simultaneous measurement of two samples can save time and effort. Short heating and cooling times mean more analyses can be conducted in less time.
Image Credit: Mettler Toledo – International
Fast and Accurate Sample Preparation
The accessory box contains all the necessary equipment for accurate and efficient sample preparation and handling. Disposable glasses and cups remove the need for cleanup, saving user time.
Image Credit: Mettler Toledo – International
Complete Results Documentation
All results can be tracked at any time and are safely archived. An analysis's results can be saved as a PDF file, printed out, or sent straight to a computer.
Image Credit: Mettler Toledo – International
Conformity with Current Standards
The DP90 operates in accordance with ASTM International and European Pharmacopeia standards, making it easy to compare measurement results.
Image Credit: Mettler Toledo – International
User Management
Users can customize their instrument settings using shortcuts and the chosen operator language. The user management system, which allows the user to define different levels of access, further protects data.
Image Credit: Mettler Toledo – International
Specifications
Product Specifications. Source: Mettler Toledo - International
| . |
. |
| Application Type |
Dropping Point, Softening Point |
| Data Export |
to SD Card, USB Stick or PC |
| Heating Rate (/min) |
0.1 °C – 20 °C |
| Max. number of methods |
60 |
| Number of Cups |
2 |
| Number of One Clicks™ |
12 Per User |
| PDF Reports |
Yes |
| Standards 1 |
IP396, DIN 51920, ASTM D3461, ISO 4625-2, ASTM D3104, ASTM D6090, ASTM D3954, AOCS Cc 18-80 |
| Stored Results |
100 |
| Substances in database |
100 |
| Temp. Range |
-20 – 400 °C (external cooling required) |
| User Management |
Password protection, Protection of Settings, Multiple Users |
| Video |
Color, 120 minutes |
| Languages |
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean |
| Display / User interface |
7" color display with touchscreen |
| Dimensions (Width × Height × Depth) |
Measuring Cell 13 × 25 × 21 cm, Control Unit 19 × 35 × 23 cm |
| Weight |
7 kg |
| Standard compliance |
www.mt.com/mpdp-norms |
