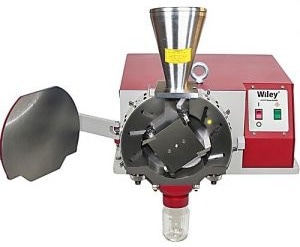

The Wiley 4 single-speed large heavy-duty Cutting Mill features a 7.75-inch diameter sealed cutting chamber with six stationary blades and a high-speed rotating cutting head equipped with four replaceable blades. This setup creates a strong shearing action that minimizes heat buildup during operation.
- Applications include: biofuels, animal feed, pharmaceuticals, brewing, and more. Samples introduced through the hopper are circulated by the rotor until they are milled fine enough to pass through the sieve.
- Suitable for a wide range of materials, including plastics, bones, cables, cardboard, electronic scrap, feed pellets, foils, food, leather, mixed materials, non-ferrous metals, paper, pharmaceutical products, refuse-derived fuels, rubber, waste, wood, and more.
- Power options: Available in 115 V 60 Hz or 230 V 50 Hz configurations
- Mounting options: Choose from benchtop or floor stand-mounted models
Specifications
- Material: Powder coated steel sieve
- Material: 316 stainless steel
- Electrical: 115 V or 230 V @ 50/60 hz
- Weight: 330 lbs
- Dimensions (with stand): 26 in×20 in.×49 in.H
- Cutting speed: 920 rpm
- Chamber size: 7.75 in.
- Diameter sample input size: 2.25 in.
- Diameter sample volume: 50-1000 grams
- Continuous torque: 7.74 Nm
- Display: Manual housing
Manufactured in the US
- This item is shipped from the United States.
Accessories
Comes complete with:
- 1× toolset
- 1× rotating cutter head with 4× rotating blades
- 6× stationary cutting blades, and 1× brush
- 1× Plunger
- 1× Stainless Steel Hopper
- 3× Sieves (0.5 mm, 1 mm and 2 mm)
- 1× Jar adaptor
- 3× 16 oz glass jars
Optional accessories available at additional cost:
- 0.5 MM S/S 316 SIEVE
- 1 MM S/S 316 SIEVE
- 2 MM S/S 316 SIEVE
- 3 MM S/S 316 SIEVE
- 4 MM S/S 316 SIEVE
- 5 MM S/S 316 SIEVE
- Floor stand
- Door latch bolt
- Knife cam lock
- Replacement blades
