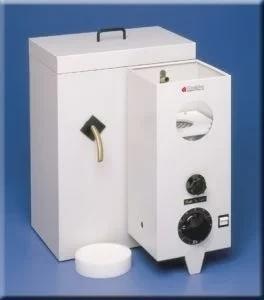

The Koehler K45000 front-view distillation apparatus performs distillation by evaporating and condensing the sample under controlled conditions. Observations are made of the temperatures at which specific volume percentages are recovered, or the volume percentages recovered at specified temperatures.
This apparatus meets all ASTM and related specifications for Groups 0, 1, 2, and 3 distillations, including motor and aviation gasolines, aviation turbine fuels, naphthas, kerosenes, distillate fuels, natural gasoline, liquid hydrocarbon mixtures, and other petroleum products.
The unit features fully insulated stainless steel condenser and heater components. The heater unit includes a flask support platform, viewing window, 1000 W heater with stepless variable control, and a rack-and-pinion heater elevation mechanism with a push-turn control knob. (Higher wattage heaters are available upon request.) A white background behind the receiving flask enhances visibility of fractions during testing.
It is available with either a right-hand or left-hand heater unit to allow convenient setup in dual-unit configurations (right-hand unit is standard). Includes graduate support block and flask support boards.
Various accessories such as flasks, graduates, extra support boards, silicone plugs, and thermometers are available new at additional cost.
Manufactured in the US
- The item is shipped from the United States.
Accessories
Comes complete with:
- Flask Support Boards A and C
- Graduate Cylinder Support Block
Optional accessories are available at an additional cost:
- 334-002-001 Top Silicone Plug, For Type A, B, & D Flasks pk/10
- 334-002-002 Side Silicone Plug pk/10
- 334-002-003 Top Silicone Plug, For Type C Flask pk/10
- 250-000-02C ASTM 2C Partial Immersion -5 to +300 °C
- 250-000-07F ASTM 7F Low Distillation 30 to 580 °F
- 250-000-07C ASTM 7C Low Distillation -2 to +300 °C
- 250-000-08F ASTM 8F High Distillation 30 to 760 °F
- 250-000-08C ASTM 8C High Distillation -2 to +400 °C
- 250-000-37C ASTM 37C Solvents Distillation -2 to 52C
- 250-000-38C ASTM 38C Solvents Distillation 24 to 78C
- 250-000-39C ASTM 39C Solvents Distillation 48 to 102C
- 250-000-40C ASTM 40C Solvents Distillation 72 to 126C
- 250-000-41C ASTM 41C Solvents Distillation 98 to 152C
- 250-000-42C ASTM 42C Solvents Distillation 95 to 255C
- 250-000-102C ASTM 102C Solvents Distillation 123 to 177C
- 250-000-103C ASTM 103C Solvents Distillation 148 to 202C
- 250-000-104C ASTM 104C Solvents Distillation 173 to 227C
- 250-000-105C ASTM 105C Solvents Distillation 198 to 252C
- 250-000-106C ASTM 106C Solvents Distillation 223 to 277C
- 250-000-107C ASTM 107C Solvents Distillation 248 to 302C
- 332-003-006 Flasks A 100 mL
- 332-003-001 Flasks B 125 mL
- 332-003-002 Flasks C 200 mL
- 332-003-005 Flasks D 250 mL
- 332-002-013 Graduates A 25 mL
- 332-002-003 Graduates B 100 mL
- 332-002-014 Graduates C 200 mL
- K45410 A Flask Support Boards 11/4" (3.18 cm)
- K45420 B Flask Support Boards 11/2" (3.81 cm)
- K45430 C Flask Support Boards 2" (5.1 cm)
- K45440 D Flask Support Boards 23/4" (6.98 cm)
- K45540 Receiver Cooling Bath Jar
