The X500 Series of Universal Testing Machines for Materials Analysis

The X500 Series from Testometric is a bench-mounted, twin-column Universal Testing Machine equipped with a precision AC servo drive system and complete computer control. The X500 Series comes with a high rigidity load frame with an accurate crosshead guidance system for even the most challenging test applications of up to 100 kN.

Source: Testometric Company Ltd

  X500-25 X500-30 X500-50 X500-100
Force Capacity kN 25 30 50 100
Accuracy Better than +/- 0.5% of reading down to 1/1000th of load cell capacity
Crosshead travel mm* 1025 1025 950 1100
Vertical space mm 1225 1225 1150 1300
Position Control Resolution mm 0.000001 0.000001 0.000001 0.000001
Distance between columns mm 420 (Wide frame options available)
Minimum Speed mm/min 0.00001 0.00001 0.00001 0.00001
Maximum Speed mm/min 1000 1000 1000 500
Speed Accuracy +/- 0.1% under stable conditions
Max force at full speed kN 25 30 50 100
Max speed at full load mm/min 1000 1000 1000 500
Data Acquisition Rate (at PC) 500 Hz as standard (optional 1000 Hz)
PC Connection Ethernet (or USB via adaptor)
Machine Configuration Twin-column, bench mounted (optional base cabinet available)
Frame Stiffness kN/mm 120 120 220 400
Weight kg 155 155 195 235
Operating Temperature °C 0 to +55
Operating Humidity 90% relative humidity or less
Electrical Supply Dual input selectable 115 or 230 V, 1 ph 50/60 Hz
Power kW 1 1 1 1.2

*-Extended travel versions are available on request.

Made to Measure

With high-precision control and accuracy, the complete digital testing system allows automated computer control of test methods for easy operation.

  • High-resolution load cells with precisions better than +/− 0.5% and down to 1/1000th of the load cell capacity
  • Software calibration check facility for immediate verification of machine precision
  • Extensometers and load cells are automatically recognized with on-device storage of calibration parameters
  • Overload capability of load cells is 800% without causing any damage
  • Crosshead guidance system offers smooth running and accurate alignment
  • Pre-loaded, high-efficiency, self-cleaning ballscrews allow rapid and quiet testing; equipped with sealed-for-life lubricated end bearings
  • Integral load cell cable routing in machine column prevents snagging and damage to void cables
  • Precision crosshead control through a brushless servo motor and a digital AC servo drive offers 23-bit positional control and a maintenance-free operation
  • High-speed data collection systems for up to four synchronous channels
  • Six I/O channels for extra devices, like micrometers, extensometers, balances, calipers, etc.
  • Overtravel, overload and impact protection provided
  • Rigid extruded support columns with T-slots and high-stiffness loading frames and precision ground steel guide rods are available for accessory mounting
  • A broad range of fixtures and grips for compression, tension, shear, flexural, peel, product testing, etc.
  • An extensive range of contacting and non-contacting extensometers, such as laser and video models, is available
  • Telescopic covers provide extra protection for ballscrews from testing debris and dust
  • Compact footprint design saves floor and bench space.

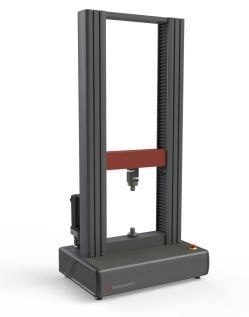

The X500 Series of Universal Testing Machines for Materials Analysis

Image Credit: Testometric Company Ltd

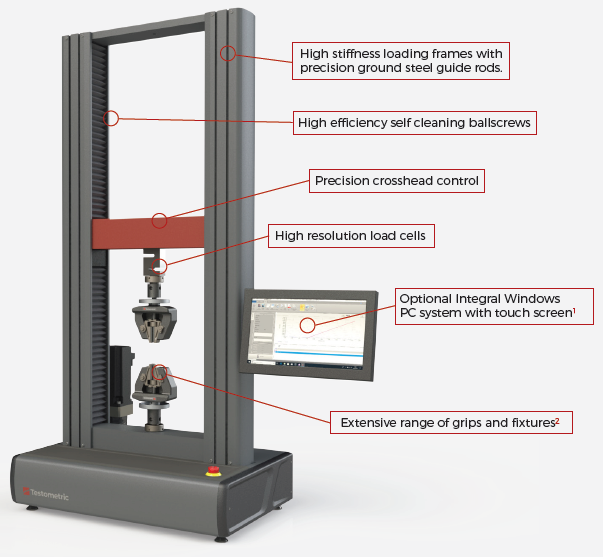

1. Available at an extra cost. The machine can alternatively be controlled using a standard PC or laptop (not supplied)

2. Machine is shown with PWG pre-tightening wedge grips (available separately)

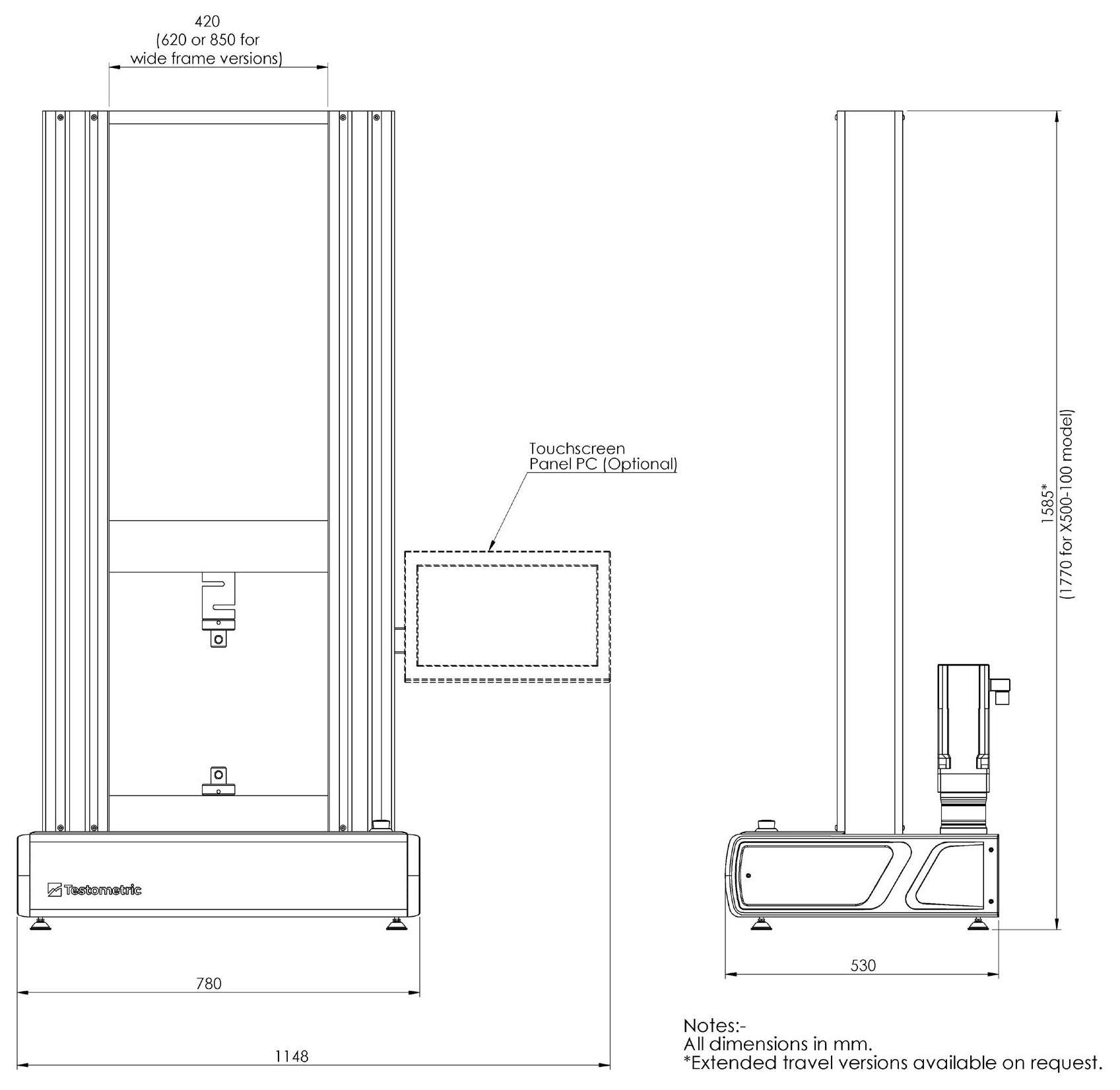

X500 Dimensions

The X500 Series of Universal Testing Machines for Materials Analysis

Image Credit: Testometric Company Ltd

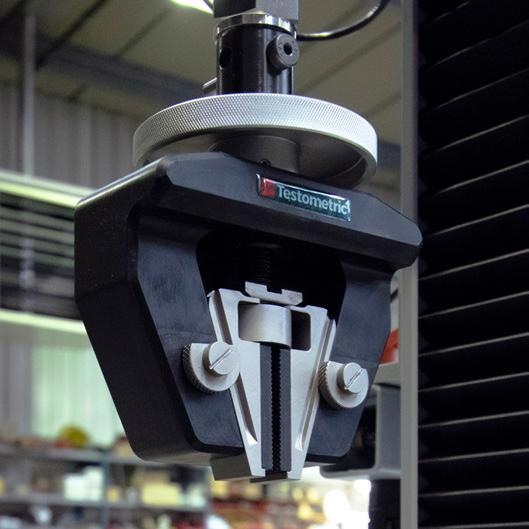

Large range of grips and fixtures available

Large range of grips and fixtures available. Image Credit: Testometric Company Ltd

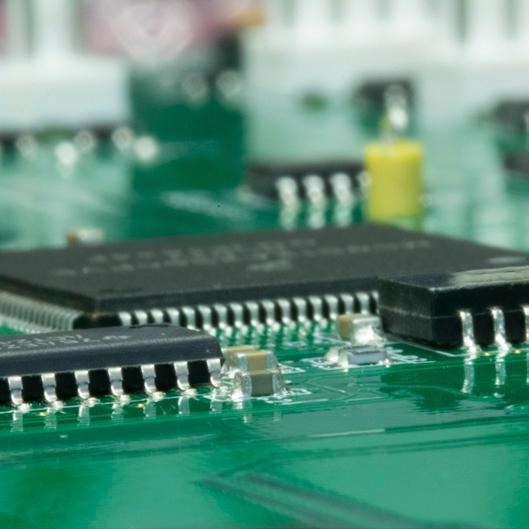

High-speed modular electronics

High-speed modular electronics. Image Credit: Testometric Company Ltd

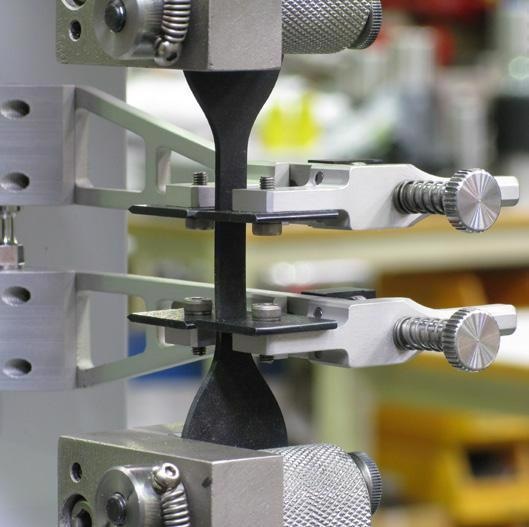

Comprehensive range of extensometry

Comprehensive range of extensometry. Image Credit: Testometric Company Ltd

Built for Precision

Force Measurement

Universally calibrated and better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4 and AFNOR A03-501. The minimum range varies from 0.4% to 100%. Load cells are automatically identified and electronically protected. Resolution is 1 part in 500000.

Extension Measurement

Complete frame length to the highest resolution of 0.000001 mm (selectable) and precision is +/− 0.01 mm. Relative, absolute and auxiliary modes in inch, mm and percent are available.

Speed Control

Industry-leading low-speed performance with speeds as low as 0.00001 mm/minute. Drive system temperature and current protection are also available

Load Frame

The rigid frame uses a rigid extruded support column and precision ground steel guide rods. Frame stiffness is up to 400 kN/mm with a built-in K factor facility. Re-circulating ball screw with bellows, customer-programmable safety stops, total travel trips and electronic limit trips are available.

Electronics System

Modular electronics system allows quick data transfer to the PC (up to 1000 Hz) through a high-speed Ethernet connection. Comprehensive input options help link a broad range of accessories and extensometers through easy plug-in interface modules

Safety Features

Broad safety features, such as overload/impact detection, programmable extension limits and E-Stop, guarantee the highest levels of operator safety. Fully conforms to global safety directives, such as 2006/42/EU Machinery Directive, 2014/30/EU Electromagnetic Compatibility Directive and 2014/35/EU Low Voltage Directive.

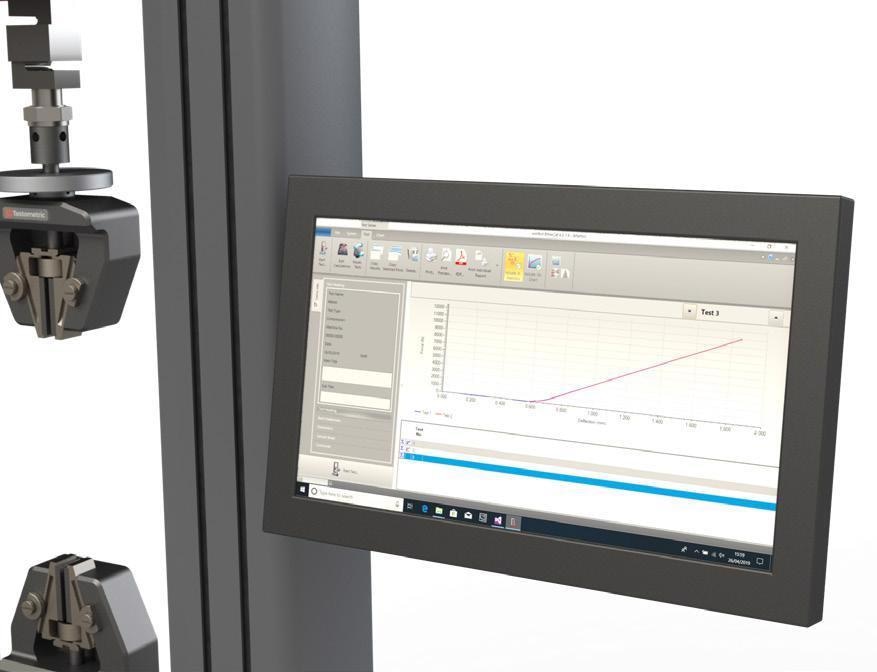

Optional Touchscreen Panel PC

When the machine is coupled with the optional IPC3 industrial-grade Panel PC with touchscreen control, it becomes a powerful independent system without the need for a Laptop or an external PC.

With the help of the latest Windows 10 operating system and running a complete version of winTest software from Testometric, the system enables full control of the test machine and offers storage and access to infinite test methods and results.

The included mounting arm, which fixes to the machine column T-Slots, can be completely adjusted for reach, height and viewing angle, thus enabling users to determine the most ergonomic working position.


  • Display 15.6″ 1366x768 panel resistive touch screen with dirt-repellent, anti-reflective screen protection
  • 2.5″ 250 GB, Solid-State Disk (SSD), SATA III 6GB/second
  • QM87 Chipset, 4xUSB3.0, 3xCOM ports [RS232], 2xGigaLAN
  • CPU-i5-4300M Intel Core i5 Processor, 2.6 GHz
  • 4 GB 1600 MHz SODIMM DDR3 204-pin

The X500 Series of Universal Testing Machines for Materials Analysis

Image Credit: Testometric Company Ltd

Tried and Tested Software

All Testometric versions are provided with the company’s extensive winTest Analysis software package.

winTest Analysis is the product of several years of constant growth and offers an intuitive and software package to suit all kinds of material testing. The built-in test methods cover compression, tensile, peel, flexural, tear, shear, creep, cyclic and multi-stage tests.

The winTest Analysis contains a wide range of industry-standard test methods and the facility to make and store a limitless number of additional test methods.

All test data can be automatedly stored and can be easily exported to other software packages, like Excel, Access, Word and SPC systems for improved report generation. Users can refer to the winTest software datasheet for more information.

With the inclusion of the RCE remote connection option, all machines can be directly web-linked to Testometric for remote investigation, tracking and software upgrades. Users can refer to the RCE datasheet for additional information.

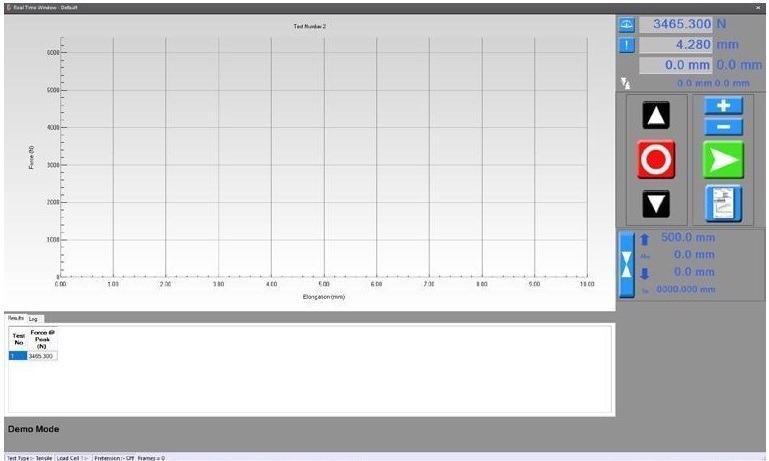

Real time test screen.

Real time test screen. Image Credit: Testometric Company Ltd

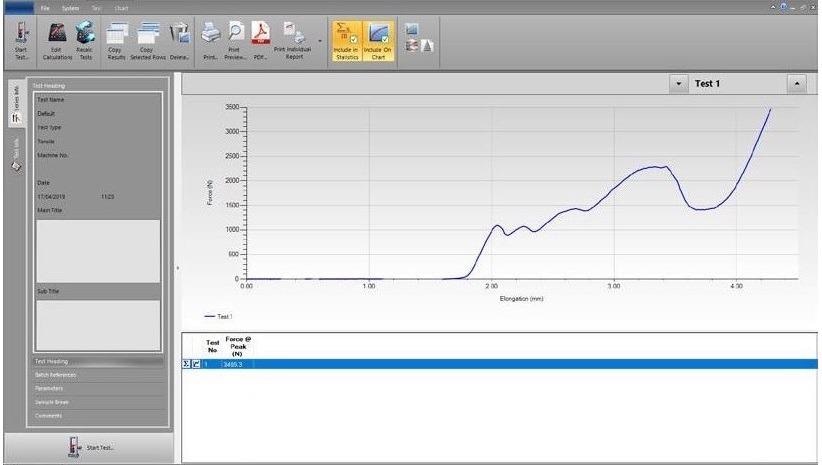

Test analysis screen.

Test analysis screen. ​Image Credit: Testometric Company Ltd
