Fiber Testing Machine: X100-FT

The X100-FT from Testometric is an exclusive fiber testing model that is based on the X100-1 Universal Testing Machine. The instrument features completely pneumatically operated grips for testing natural or synthetic single fibers in compliance with BS EN ISO 5079 or BS 3411.

The machine features a universal design, complete with precision AC servo drive system and full computer control, thus enabling easy compatibility for other test types such as tensile and compression tests using Testometric’s wide range of grips and fixtures.

Source: Testometric Company Ltd

Force Capacity kN 1
Accuracy Better than +/- 0.5% of reading down to 1/1000th of load cell capacity
Included Load Cell 500cN (others available)
Included Fixtures PF1 pneumatic fiber grips with PF pneumatic footswitch control unit
Crosshead travel mm 420
Position Control Resolution mm 0.0001
Throat depth (force axis to column) 81
Minimum Speed mm/min 0.001
Maximum Speed mm/min 1000
Speed Accuracy +/- 0.1% under stable conditions
Data Acquisition Rate (at PC) 500Hz
PC Connection USB
Machine Configuration Single-column, bench mounted
Frame Stiffness kN/mm 5
Weight kg 25
Operating Temperature °C -10 to +40
Operating Humidity +10 to +90% non-condensing
Electrical Supply 230 V, 1 ph 50/60 Hz (115 V option available)
Power kW 0.2


Made to Measure

The X100-FT is a fully digital testing system that features high-precision accuracy and control, including automated computer control of test methods, which ensures ease of operation.

  • Compact footprint design, giving sufficient bench space
  • A broad range of contacting and non-contacting extensometers including video and laser models
  • Over-travel, overload and impact protection
  • Expansion channel for other devices such as calipers, micrometers, extensometers, balances, etc.
  • High stiffness loading frames with dedicated solid steel crossheads and rigid extruded support columns with T-slots for accessory mounting
  • Telescopic covers provide more protection for ball screws against testing debris and dust
  • High-resolution load cells with precisions better than +/−0.5% down to 1/1000th of the load cell capacity
  • Software calibration check provision for prompt verification of machine accuracy
  • High-efficiency pre-loaded self-cleaning ball screws for quick, noiseless testing are provided with permanently sealed lubricated end bearings
  • Precision crosshead control through digital AC servo drive and brushless servo motor providing maintenance-free operation and 20,000 pulses/revolution positional control
  • Crosshead guidance system offers exact alignment and smooth working
  • High-speed data collection systems for up to four synchronous channels
  • 800% overload capability of load cells without destruction.
  • Programmed recognition of load cells and extensometers, with on-device storage of calibration parameters.
  • Lightweight design with combined handle recesses to permit comfort of transportability.

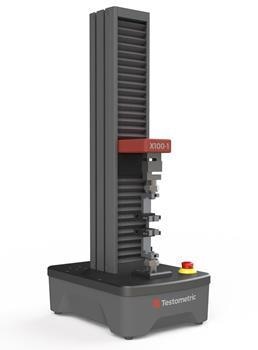

Fiber Testing Machine: X100-FT

Image Credit: Testometric Company Ltd

X100-FT Dimensions

Fiber Testing Machine: X100-FT

Image Credit: Testometric Company Ltd

Large range of grips and fixtures including tensile, peel, tear, and compression.

Large range of grips and fixtures including tensile, peel, tear and compression. Image Credit: Testometric Company Ltd

High-speed modular electronics

High-speed modular electronics. Image Credit: Testometric Company Ltd

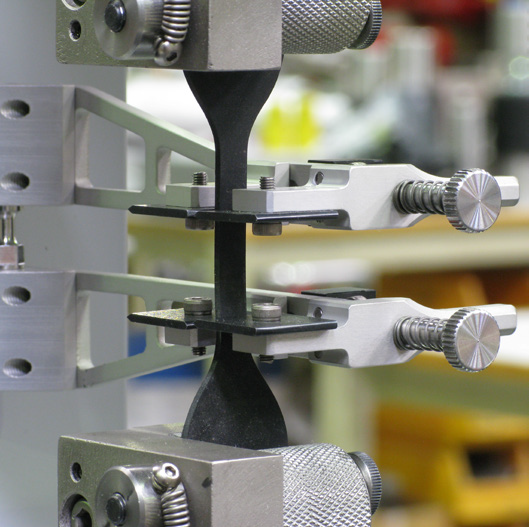

Comprehensive range of extensometry

Comprehensive range of extensometry. Image Credit: Testometric Company Ltd

Built for Precision

Load Frame

  • Electronic limit trips, total travel trips and user-programmable safety stops
  • Sturdy frame with a precision linear guidance system and stiff extruded support column
  • Re-circulating ball screw with bellows
  • Frame stiffness of 5 kN/mm and an in-built K factor facility

Speed Control

  • Superior performance at speeds as low as 0.001 mm/minute
  • Drive system temperature and current protection

Electronics System

  • Modular electronics system provides quick data transfer to the computer through a 500-Hz high-speed USB connection
  • Extensive input options facilitate the connection of many accessories and extensometers through plug-in interface modules

Extension Measurement

  • Full frame length up to a selectable maximum resolution of 0.0001 mm
  • Accuracy of up to +/−0.01 mm
  • Complete, comparative and supplementary modes in millimeters, inches and percent

Force Measurement

  • Universally calibrated and improved compared to DIN 51221 ASTM E-4, Grade 0.5 EN 7500-1 and AFNOR A03-501
  • Automatic load cell recognition
  • Range 0.4%–100% minimum
  • Electronic load cell safety
  • Resolution of 1 part in 500,000

Safety Features

  • Wide range of safety features to guarantee maximum safety for operators
  • E-Stop, programmable extension limits and overload/impact detection
  • Fully compliant with global safety directives like 2014/35/EU Low Voltage Directive, 2006/42/EU Machinery Directive and 2014/30/EU Electromagnetic Compatibility Directive

Optional Tablet PC

When X100-FT is paired with the optional TPC1 tablet PC it turns into a robust independent system without the necessity of a laptop or external PC. The TPC1 tablet PC has touchscreen control and works based on a dedicated version of WinTest software that is enhanced for touchscreen operation.

The Tablet PC offers a fully-featured test environment with the capability to create and store limitless methods and results. Users can adjust to an ergonomic working position since the height, reach and viewing angle of the mounting arm attached to the machine column T-slots can be tuned. The machine can also be connected to a laptop or conventional desktop PC using the WinTest EC software.

Fiber Testing Machine: X100-FT

Image Credit: Testometric Company Ltd

Tried and Tested Software

Each Testometric model is supplied with an inclusive WinTest Analysis software package. The WinTest Analysis includes many years of development, providing an easy and in-built software package that suits material testing of all types. The in-built test methods offer tensile, flexural, compression, peel, shear, tear, cyclic, creep, and multi-stage tests.

A broad range of facilities and industry-standard test methods are provided to build and store many test methods. All test data can be automatically stored and exported to other software packages such as word, excel, access and SPC systems for further interpretation.

The WinTest software datasheet can be used to get better insights into the features. The inclusion of the RCE remote connection facility in all machines can be web-linked directly to Testometric for monitoring, remote investigation and software upgrades. The RCE datasheet can be used for further information.

Real-time test screen

Real-time test screen. Image Credit: Testometric Company Ltd

Test analysis screen

Test analysis screen. Image Credit: Testometric Company Ltd
