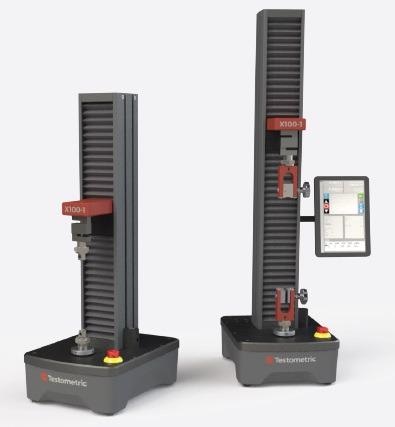

Testometric’s X100 Series of Universal Testing Machines

The X100 from Testometric is a small-sized, lightweight Universal Testing Machine that comes with complete computer control and an accurate AC servo drive system.

The system is best suited for high-volume, low force testing applications like packaging materials or paper. The system is available in standard and long-travel versions ideal for testing high-elongation materials.

Source: Testometric Company Ltd

  X100-1 X100-1LT
Force Capacity kN 1 1
Accuracy Better than +/- 0.5% of reading down to 1/1000th of load cell capacity
Crosshead travel mm 420 670
Vertical space mm 600 850
Position Control Resolution mm 0.0001 0.0001
Throat depth (force axis to column) 81 81
Minimum Speed mm/min 0.001 0.001
Maximum Speed mm/min 2000 2000
Speed Accuracy +/- 0.1% under stable conditions
Max force at full speed kN 1 1
Max speed at full load mm/min 2000 2000
Data Acquisition Rate (at PC) 500Hz
PC Connection USB
Available load cells 5N, 10N, 20N, 50N, 100N, 250N, 500N & 1kN
Machine Configuration Single-column, bench mounted
Frame Stiffness kN/mm 5 5
Weight kg 24 26
Operating Temperature °C -10 to +40
Operating Humidity +10 to +90% non-condensing
Electrical Supply 230V, 1ph 50/60Hz (115V option available)
Power kW 0.2 0.2


Made to Measure

The X100 is a completely digital testing system featuring high precision control and accuracy. The system features automated computer control of test methods, enabling easy operation:

  • Automated recognition of load cells and extensometers, with on-device storage of calibration parameters
  • Delivers high-resolution load cells with better precision over ±0.5% down to 1/1000th of the load cell capacity
  • Features an 800% overload capability of load cells without damage
  • The software calibration check facility enables real-time verification of machine accuracy
  • Accurate crosshead control through digital AC servo drive and brushless servo motor provides maintenance-free operation and 20,000 pulses/rev positional control
  • The system comes with high-efficiency pre-loaded self-cleaning ballscrews for quick and silent testing and is built with sealed-for-life lubricated end bearings
  • Delivers accurate alignment and smooth running using the crosshead guidance system
  • Loaded with a high-speed data collection system for up to four synchronous channels
  • The system is available with a broad range of contacting and non-contacting extensometers, which includes laser and video models
  • Compact footprint design ensures the economy of bench space
  • Features a wide range of grips and fixtures for compression, tension, shear, flexural, peel, product testing, etc.
  • Provides overtravel, overload and impact protection
  • Additional protection for ballscrews against dust and testing debris ensured through telescopic covers
  • Expansion channel for additional devices like micrometers, extensometers, balances, calipers, etc.
  • High stiffness loading frames with solid specialized steel crossheads and rigid extruded support columns using T-slots for accessory mounting

Testometric’s X100 Series of Universal Testing Machines

Image Credit: Testometric Company Ltd

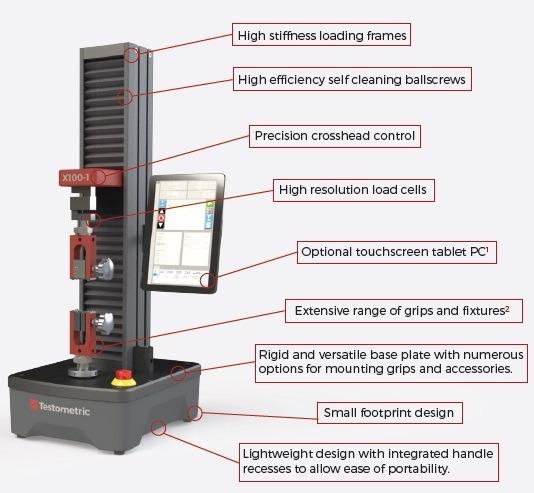

1. Available at additional cost. Machine can alternatively be controlled using a standard PC or laptop (not supplied).

2. Machine shown with PG25 paper grips (available separately).

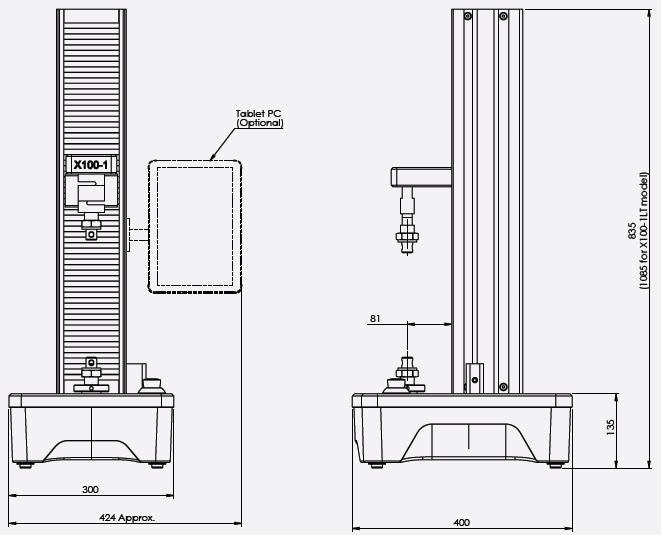

X100 Dimensions

Testometric’s X100 Series of Universal Testing Machines

Image Credit: Testometric Company Ltd

All dimensions in mm.

Large range of grips and fixtures including tensile, peel, tear, and coefficient of friction.

Large range of grips and fixtures including tensile, peel, tear and coefficient of friction. Image Credit: Testometric Company Ltd

High-speed modular electronics.

High-speed modular electronics. Image Credit: Testometric Company Ltd

Comprehensive range of extensometry.

Comprehensive range of extensometry. Image Credit: Testometric Company Ltd

Built for Precision

Force Measurement

The X100 system is universally Calibrated and performs better than Grade 0.5 EN 7500-1, DIN 51221, ASTM E-4 and AFNOR A03-501. It features a range of 0.4% to 100% minimum. The system is capable of automatically identifying the load cells and provides a resolution of 1 in 50,000. It also offers electronic load cell protection.

Speed Control

The X100 system delivers an exceptional low-speed performance with speeds ranging down to 0.001mm/minute. It also provides drive system temperature and current protection.

Electronic System

The modular electronics of the system enable quick transfer to the PC (500 Hz) through a high-speed USB connection. Detailed input options facilitate the connection of a broad array of extensometers and accessories using simple plug-in interface modules.

Extension Measurement

The X100 system features a complete frame length to a maximum resolution of 0.0001 mm (selectable). It also delivers a precision performance of ±0.01 mm. The system is available in absolute, relative and auxiliary modes in mm, inch and percent.

Load Frame

The X100 system has been built with a rigid frame, using an accurate linear guidance system and rigid extruded support column. It features a frame stiffness of 5 kN/mm in addition to the built-in K factor facility. The system also includes re-circulating ball screw with bellows as well as electronic limit trips, total travel trips and customer programmable safety stops.

Safety Features

The system has extensive safety aspects to ensure the maximum level of operator safety, including programmable extension limits, E-Stop and overload/impact detection. It is strictly compliant with global safety directives 2006/42/EU Machinery Directive, 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive.

Optional Tablet PC

The system forms a robust standalone instrument when combined with the optional TPC1 tablet PC with touchscreen control. This can be achieved even without the need for an external laptop or PC.

The system employs the specialized version of Testometric’s WinTest software that has been optimized for touchscreen operation. The machine offers a fully-featured test environment with the capability to create and store unlimited techniques and results.

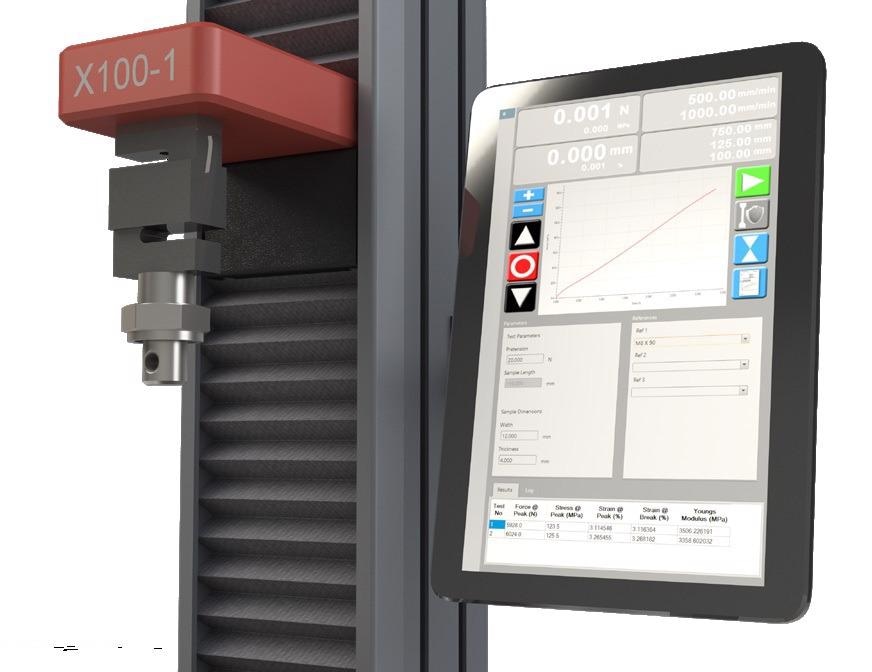

The integrated mounting arm which is attached to the machine column T-Slots can be fully aligned for reach, height and viewing angle. This enables the users to set the most ergonomic working position.

The machine can be alternatively connected to a conventional laptop or desktop PC using the WinTest EC software.

Testometric’s X100 Series of Universal Testing Machines

Image Credit: Testometric Company Ltd

Tried and Tested Software

Each Testometric model is loaded with the company’s WinTest Analysis software package.

The WinTest Analysis has undergone many years of development, enabling it to offer a flexible and intuitive software package to host all kinds of material testing. The system holds built-in test methods capable of doing various tests, including compression, tensile, peel, flexural, tear, shear, creep, cyclic and multi-stage tests.

The system features a broad set of industry-standard test methods and the facility to create and store an unlimited number of further test methods. It also facilitates automated storage of all test data and simple procedures to export information to other packages such as excel, word, SPC systems and access for improved report generation.

The inclusion of the RCE remote connection option enables all machines to be directly linked through the web to the Testometric. This facilitates remote monitoring, investigation and software upgrades.

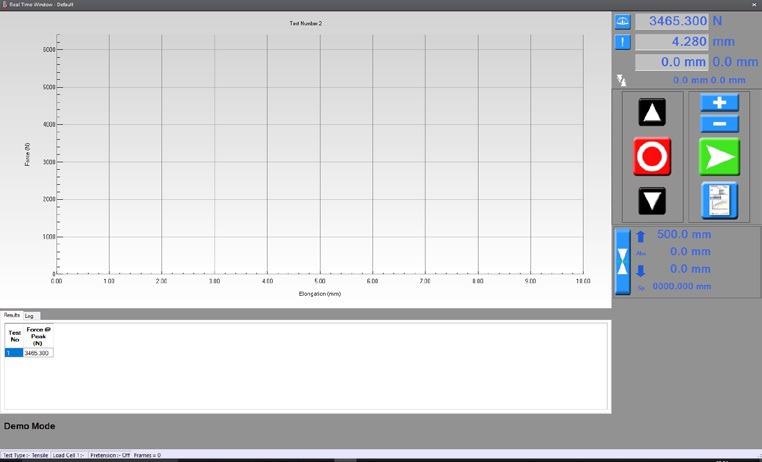

Real-time test screen.

Real-time test screen. Image Credit: Testometric Company Ltd

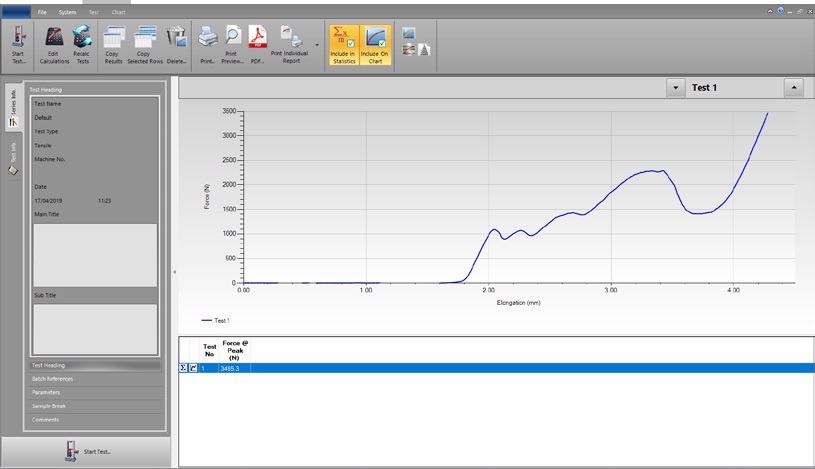

Test analysis screen.

Test analysis screen. Image Credit: Testometric Company Ltd
