Measuring Industrial Application with the Laser Level Transmitter LLT100

The LLT100 is a high-performance laser transmitter that is capable of accurately measuring the level, distance, and position of a sample in a consistent manner over both short and long ranges.

This non-contact level measuring instrument has been specifically designed for evaluating process automation and inventory management in a wide variety of industrial applications that exhibit harsh environments, such as mining, oil and gas, chemicals, food and beverages, power, pulp and paper, pharma, and water and waste water industries.

Product Features

  • Reduced associated costs
    • Does not require any maintenance
    • No calibration necessary
    • Versatile level transmitter
  • Highly reliable instrument
    • Provides a precise measurement of any solid or liquid surface
    • Equipped with both dust and fog penetration capabilities
    • Explosion proof class 1 / division 1 (zone 1)
  • Extremely convenient tool for fast-pace industries
    • Rapid and flexible installation
    • Easy setup function
    • 2-wire powered
    • Equipped with HART communication
  • Ensures rapid delivery of results in less than two weeks from order to reception
  • Continuous and non-contact laser measurement of any solids or liquids, as well as clear mediums
    • Allows this product to meet the increasing demands of process automation and inventory management in various industries
  • Equipped with laser level transmitters

Accessories

  • Dust tube
    • Prevents dirt or splashing liquids from contaminating the window
  • Cooling tube
    • Increases the maximum process temperature to as high as 280 °C/535 °F
  • Heated window
    • Prevents condensation on the window
    • Requires 4 wire power to function
  • Integrated ‘Through-the-Glass’ user interface
    • Directly configured to the unit
  • Rotating bracket
    • Precisely aims the LLT100 laser beam as necessary
  • Swivel flange
    • Provides users with a precise aiming of the LLT100 laser beam
    • Particularly applicable for liquid applications
  • Laser pointer tool
    • Provide users with a visual reference during alignment of the LLT100

Process Flanges

  • Aluminum or stainless steel universal flange
    • Bolt pattern fits both 2-inch ASME150 and DN50 PN 16
    • Maximum pressure: 2 bar (29 psi)
    • Hazardous area class 1 / division 1 (zone 1)
  • High pressure capabilities
    • 2 in. class 150 flange
    • 2 in. class 300 flange
    • DN50 PN16 flange
    • DN50 PN40 flange
    • Hazardous area class 1 / division 1 (zone 1)
    • Capable of forming a barrier to zone 0
  • Hygienic interface
    • Achieved using a 4-inch triclover clamp

Measuring Industrial Application with the Laser Level Transmitter LLT100

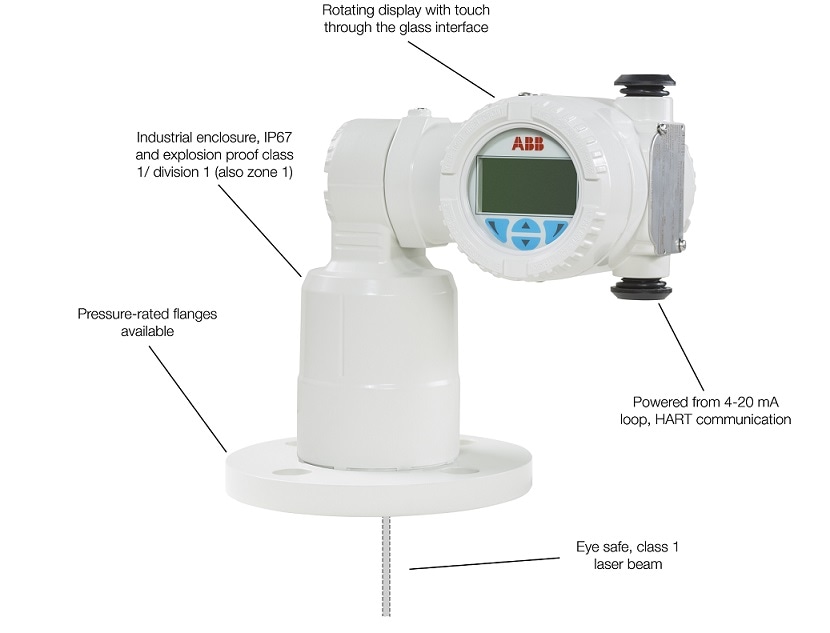

Laser Level Transmitter LLT100 - Overview: Features
Laser Level Transmitter LLT100 - SIL 2 Capable

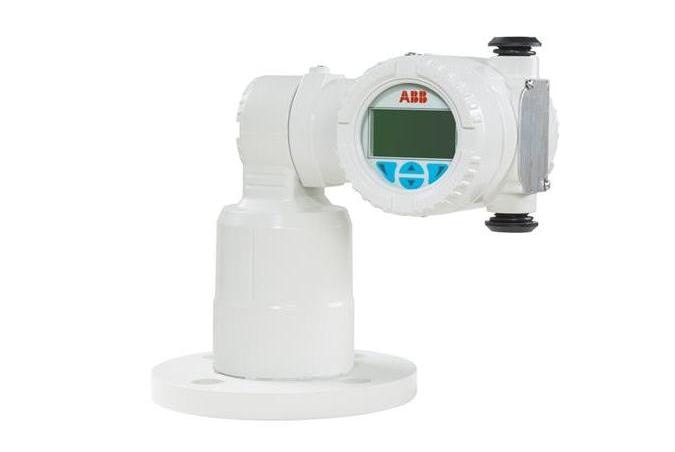

Laser Level Transmitter LLT100 - Picture 1

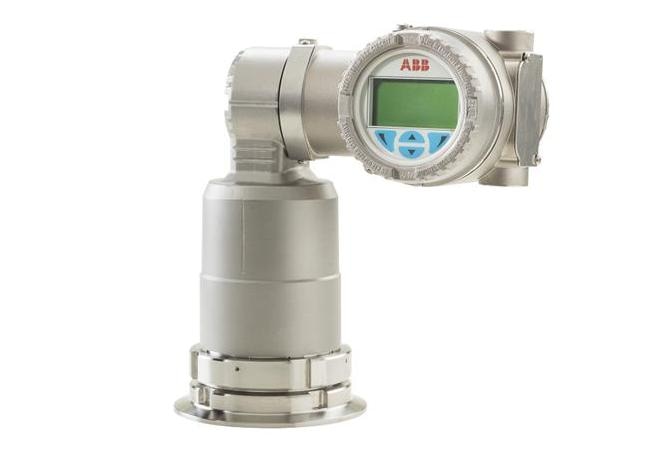

Laser Level Transmitter LLT100 - Picture 2

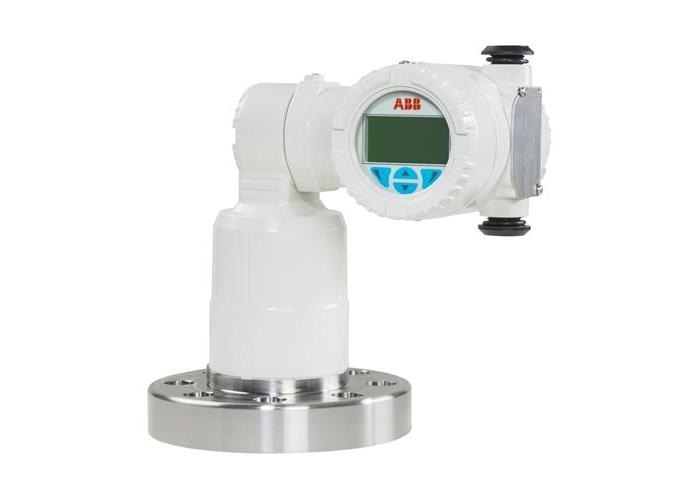

Laser Level Transmitter LLT100 - Picture 3
