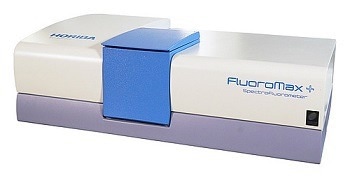

The FluoroMax® Plus characterizes HORIBA’s best-in-industry fluorometer performance in a cheap, convenient, and user-friendly benchtop model. The FluoroMax family was the first one to bring the sensitivity of a modular fluorometer to a tabletop fluorescence instrument in the 1990s with its special all-reflective optics and photon counting.
It is a small spectrofluorometer, yet it provides the ultimate sensitivity in fluorescence investigations and features that are not discovered in most table-top fluorescence detection systems.
The FluoroMax Plus is the latest generation of the original and high-performance tabletop fluorometer, providing extended performance with detection of emission spectra out to 1700 nm and (TCSPC) Time Correlated Single Photon Counting lifetime measurements that are as short as 25 ps.
FluoroMax Plus spectrofluorometers are the most sensitive, adaptable, and trustworthy benchtop spectrofluorometers.
Features
Features
- Water Raman signal-to-noise ratio is 10,000:1 (FSD method)
- Photon counting provided for ultimate sensitivity
- Fast Scanning capability — ranges up to 80 nm/second
- Method Files to recall full experiment parameters
- Strong FluorEssence™ software available for Windows®
- Phosphorimeter accessory available for long-lived luminescence determinations
- Time-correlated single-photon counting (TCSPC) accessory provided for lifetime determinations
Hardware
The Source
The xenon source that offers prime UV performance is concentrated on the entrance slit of the excitation monochromator that comes with an elliptical mirror. Besides guaranteeing effective collection, the reflective surface retains all wavelengths stressed on the slit.
As an option, an extra, software-selectable xenon flash lamp can be fitted to allow phosphorescence studies.
The Slits
The slits are bilaterally, continuously adjustable from the computer in units of bandpass or millimeters. This preserves maximum resolution and instant reproducibility.
The Excitation Monochromator
The excitation monochromator is an aspheric design that guarantees that the image of the light diffracted by the grating fits through the slit.
The gratings themselves are plane, blazed gratings that prevent the two major disadvantages of the more common concave holographic gratings: poor polarization performance and inadequate imaging during scans that throw away light.
The unique wavelength drive scans the grating at speeds as high as 80 nm/second. The grating grooves are blazed to provide maximum light in the UV and visible regions.
The Reference Detector
A photodiode reference detector tracks the intensity as a function of wavelength and time prior to the excitation light reaching the sample. The photodiode detector consists of an extensive wavelength response compared to the older and conventional rhodamine-B quantum counter, and no maintenance is required.
The Sample Chamber
A large sample chamber has been offered to enable the use of a long list of accessories for unique samples and encourage the user to make use of a range of sample schemes.
The Emission Monochromator
The excitation monochromator's outstanding features are also incorporated into the emission monochromator. Gratings are blazed to offer maximum throughput in the visible region.
The Emission Detector
Emission detector electronics employ photon counting for the ultimate in low-light-level detection. Photon-counting focuses on signals that develop from fluorescence emission, thereby neglecting smaller signals sourcing in the detector tube (PMT).
The more general technique of analog detection (utilized by lower-performance fluorometers) just adds noise and signal collectively, thereby helping to mask weak emissions.
The emission detector housing also consists of an integral high-voltage supply, which is factory-set to offer the signal-to-noise ratio.
Computer Control
The entire control of the FluoroMax originates in the user's PC with HORIBA’s FluorEssence™ software and is transmitted through a USB link. Once started-up, the system automatically calibrates and presents itself for new experiments, or stored routines instantly called from memory.
Accessories
A wide variety of accessories are applications-oriented, most of which are exchangeable with the FluoroMax system.
Specifications
Source: HORIBA Scientific
| . |
. |
| Lamp |
Vertically mounted, CW, 150 W Ozone-free xenon arc lamp |
| Gratings |
1200 groove/mm blazed at 330 nm (excitation) and 500 nm (emission), plane ruled |
| |
Automatic self-calibration of all wavelength drives and slits |
| Monochromators |
All reflective optics, Czerny-Turner spectrometers |
| Detectors |
Emission: R928P photon counting PMT (185-850 nm) and reference photodiode for monitoring lamp output |
| Water Raman S/N |
10,000:1 (FSD method). See Signal-to-noise ratio |
| Slits |
Continuously variable from 0 to 29 nm |
| Accuracy |
0.5 nm |
| Repeatability |
0.1 nm |
| Minimum step |
0.0525 nm |
| Integration time |
0.001 to 160 seconds |
| Software |
FluorEssence |
| Spectral Correction Factors |
Included |
