ECHO sensors offer economic value and performance for common extrusion applications, with a ±0.2% repeatability in detecting process pressures. ECHO Series sensors can be used when an application demands excellent measurement for optimal control but does not need a custom configuration or other additional capabilities.

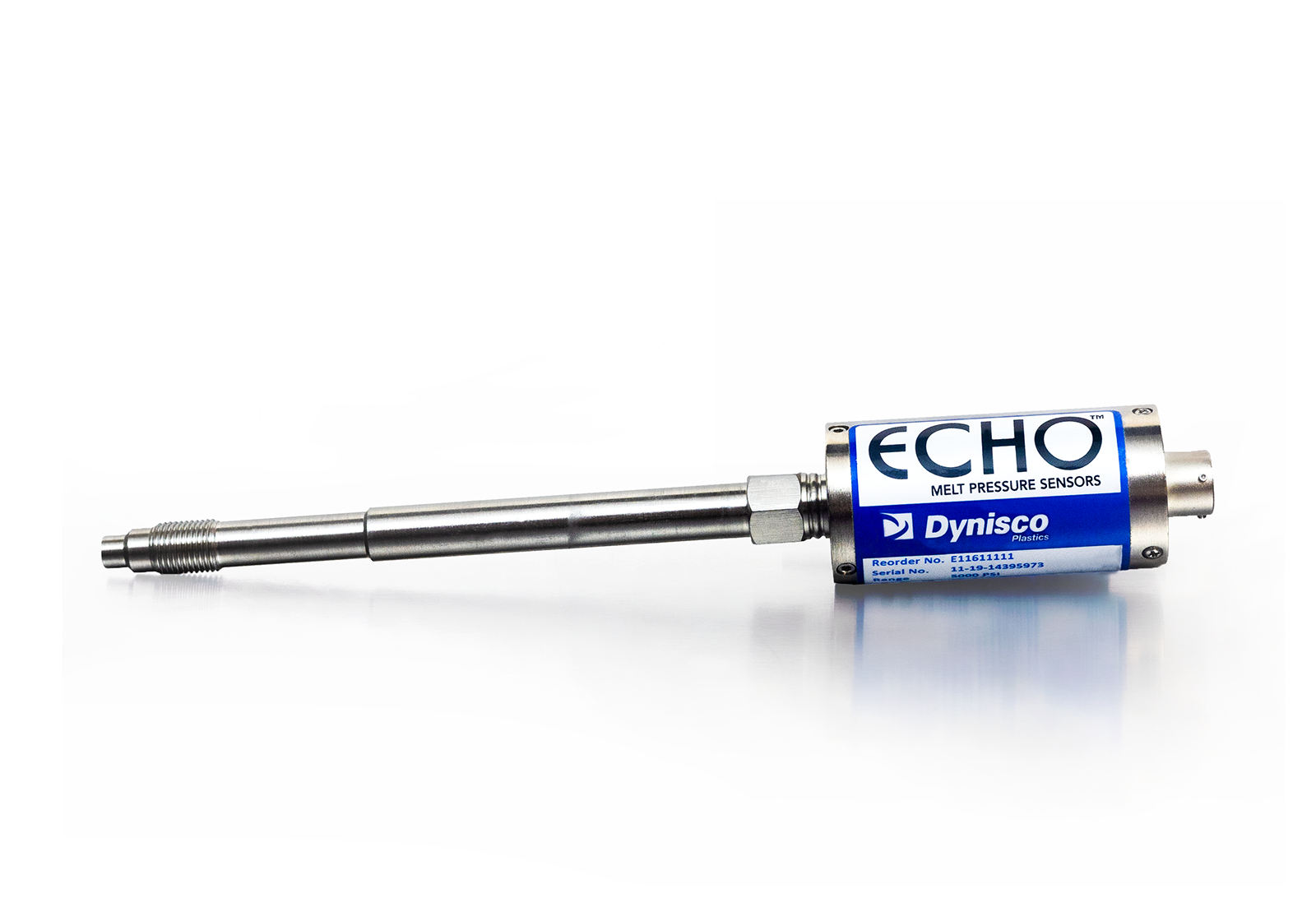

Image Credit: Dynisco
Warning: This product could expose users to chemicals such as mercury and lead, which are recognized by the State of California to cause cancer and reproductive damage.
Specifications
- Option for an integrated temperature sensor
- Offered in configurations suitable for the majority of extruder applications
- 1.5 M, 3 M, 5 M, 7.5 M & 10 M psi pressure range capability
- Accuracy better than ±0.5%
- The usual diaphragm coating is TiAlN.
- mV/V, 0-10 VDC, or mA outputs available
