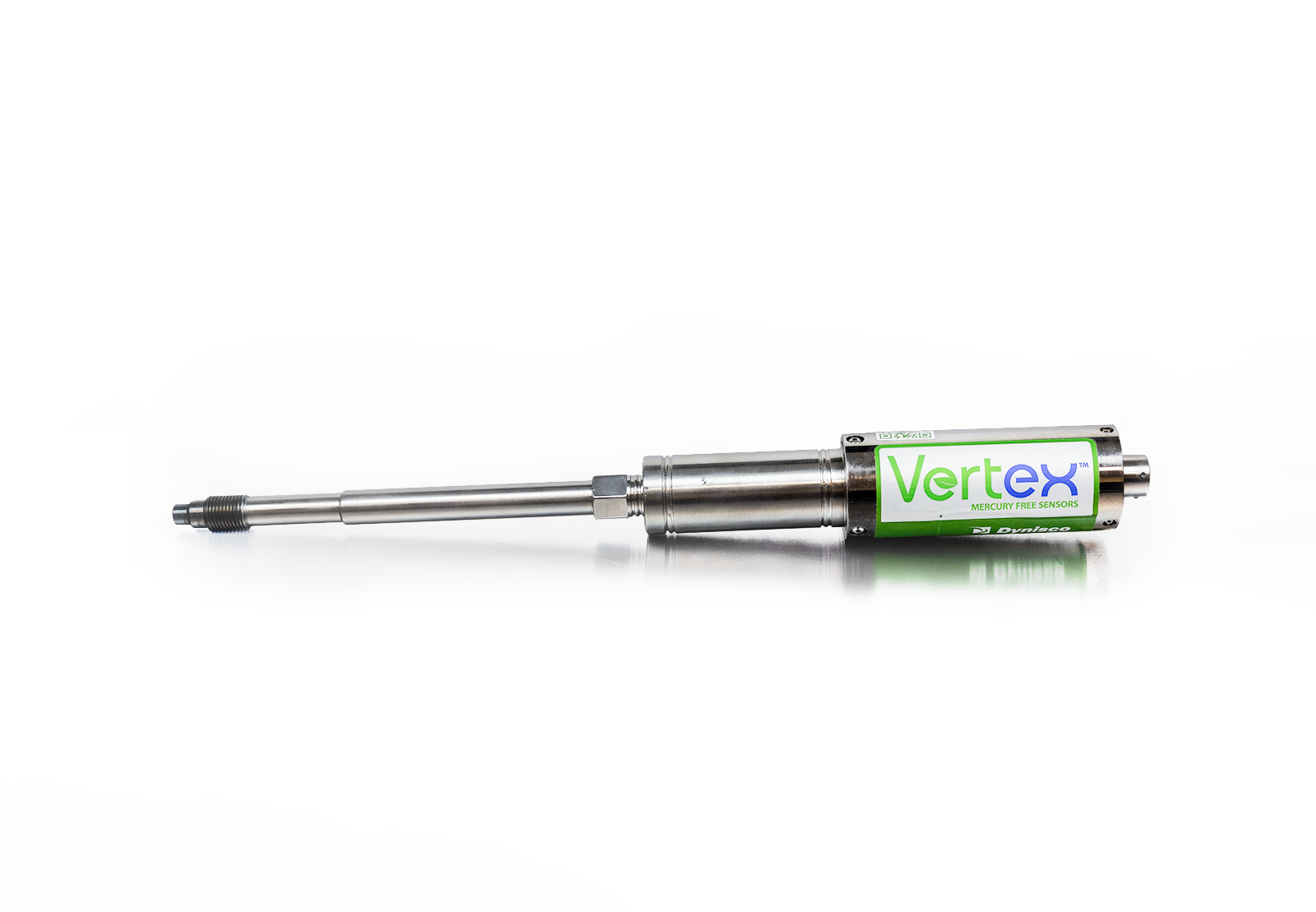

The Vertex Sensors are High performance and FDA approved made with a fluidless design. Its pressure range is available from 250 to 10,000 PSI with ±0.15% accuracy in most model configurations. Vertex sensors are a great mercury alternative that's safe to use in extreme cold, as well around food products, making it especially well-suited for industrial applications that are processed in sensitive environments. This upgrade enhances overall process performance and supports customers prioritizing sustainability and zero-waste goals.
Image Credit: Dynisco
Specifications
- No fill material
- RoHS compliant for sustainability programs
- Durable, thicker Inconel diaphragms are coated with DyMax®
- Optional Type J or K thermocouples give a melt temperature indication and a 4-20 mA temperature output
- Equipped with a 1/2"-20 UNF for installation in conventional transducer mounting holes
- Also available to install 1/2-20 UNF units into a Button Seal application
- If washdown capability is required for mechanical or food applications, a sealed, welded shell and electrical connection are offered (not available if thermocouple option TCx is selected)
- Available with thermocouple temperature output
- 250-10,000 PSI pressure range capability
- HART digital communication is available
- The simple and sophisticated design of the direct measurement tip has a stronger diaphragm
- Direct measurement of the process avoids errors transferred via complex internal support systems, transmission fill materials, or moving push rods
- Designed to be compatible with universal pressure indicators
