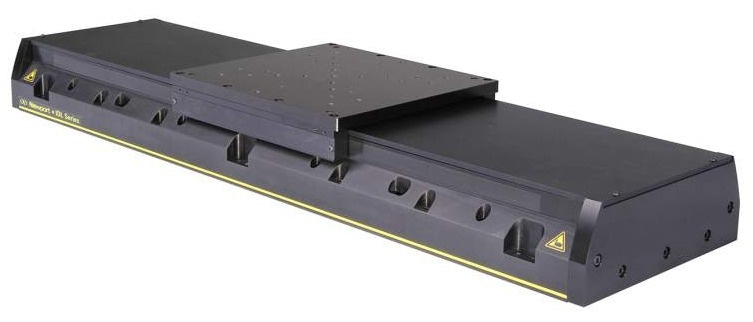

The long-travel IDL industrial-grade linear stages have the highest load capacity and speed among all linear motor stages. With features such as a hard-top cover, flexible side bands, and air purge, as well as a broad range of sizes and travel ranges, these stages are ideal for demanding production applications. The IDL stages' superior accuracy, pitch, and yaw performance make them excellent for laser micro-machining applications.
- Designed for industrial applications with debris protection, fast throughput, and dependability
- High-efficiency, non-contact, ironless linear motor for quick movement and speed stability
- Extended travel and high load capabilities to suit various applications
- Quick and reliable delivery based on customers' production needs
Compatible Controllers
Compatible motion controllers for IDL225-LM to IDL560-LM linear motor-driven stages include:
- XPS-RLD Motion Controller (2- or 4-axis): Requires an XPS-EDBL High Power Amplifier
- XPS-D Motion Controller (2-, 4-, 6-, or 8-axis): Requires an XPS-EDBL High Power Amplifier
Compatible motion controllers for IDL165-LM linear motor-driven stages are:
- XPS-RLD Motion Controller (2- or 4-axis): Requires an XPS-DRV11 driver module
- XPS-RLD Motion Controller (2-, 4-, 6-, or 8-axis): Requires an XPS-DRV11 driver module
Specifications
Source: MKS Newport
| |
|
| Motorized Axes |
X |
| Maximum Speed |
2000 mm/s |
| Minimum Incremental Motion |
0.050 µm |
| Bidirectional Repeatability, Typical |
± 0.10 µm |
| Base Material |
Aluminum |
| Bearings |
Recirculating caged ball bearings |
| Drive Mechanism |
Ironless linear motor |
| Feedback |
Linear steel scale |
| Encoder Resolution |
1 Vpp 20 µm pitch |
| Limit Switches |
Optical, Positive, and Negative End-Of-Run -5 V |
| Origin |
Optical, centered |
| Connector Type |
DB15 Male (2) and DB9W4 |
| Thread Type |
M6 |
| MTBF |
20,000 hours (25% load, 30% duty cycle) |
| RoHS |
Compliant |
Features
Industrial-Level Build and Performance
IDL - Industrial Linear Motor Stages for Laser Microprocessing
Video Credit: MKS Newport
The IDL stages were designed to meet the most stringent requirements of precise industrial laser microprocessing, with a focus on high throughput, large load capacity, and extreme durability. The IDL is appropriate for industrial environments due to its industrial-grade hard covers, wear-resistant sidebands, air purge, and guided debris path.

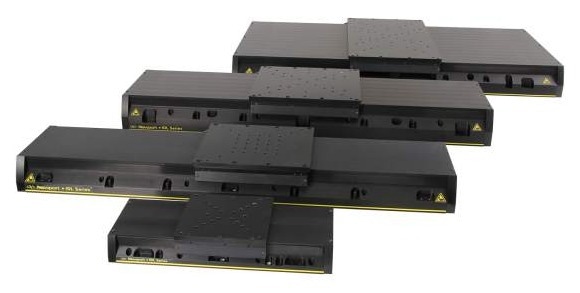

Platform Sizes, Travel Ranges, and Load Capacities for Popular Industrial Applications
Image Credit: MKS Newport
The IDL family’s variable width, travel range, and weight capabilities make it suitable for a wide range of applications. Given their diversity, these stages can be directly stackable with one another, reducing design and assembly time.

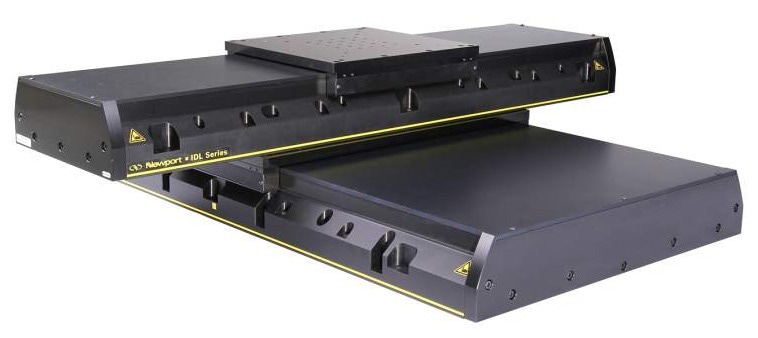

Easy Direct Mounting of XY Stack Configurations
Image Credit: MKS Newport
IDL stages include both imperial and metric mounting hole designs, allowing for flexible installation.
Reliable Stage Delivery
The IDL series can be ordered from stock or on a blanket schedule, just like any other Newport product. This guarantees that OEMs fulfill their obligations.

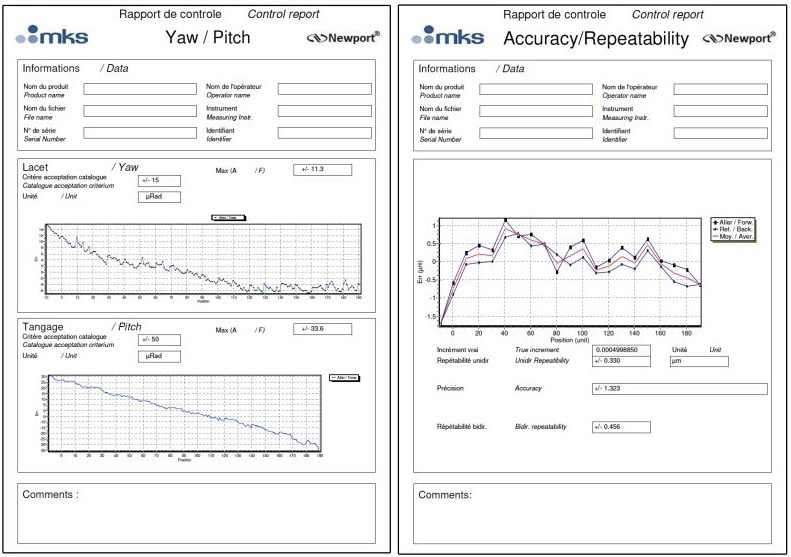

Individual Stage Metrology Report is Included
Image Credit: MKS Newport
MKS Newport guarantees specification values that are measured and recorded in accordance with ISO 230-2 and ASME B5.57 standards. Compared to the guaranteed standards, the usual performance results are twice as good.
