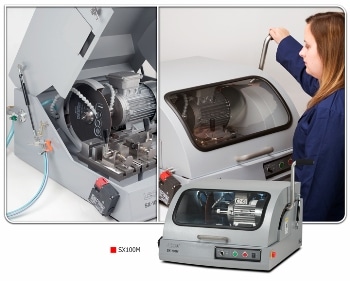

Benchtop Sectioning Machine - SX100M Series

The latest sectioning machine to enter the LECO lineup is the efficient benchtop SX100M. It is a perfect solution for various sectioning applications, including bar stock, castings, fasteners, tungsten carbide, composite materials, electronic components, weldments, and more.

The approximate max sample cut diameter is, roughly, 2.75 inches with a 10 in (250 mm) blade and a 3 HP (2.2 kW) motor with integrated electronic mechanical braking system.


  • Manual sectioning is made possible with a radial arm. It also has an adaptable working height for the different users
  • Base aluminum casting with steel hood and safety lock
  • Integrated 6.6 gallon recirculating tank
  • Sloped floor for efficient coolant flow and minimal debris build-up
  • Optional cam lock vises
