Economical Desktop SEM with Reliable Ease-of-Use Features and Automation — Phenom Pure Desktop SEM

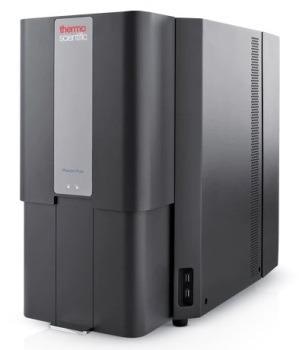

The Phenom Pure Desktop Scanning Electron Microscope (SEM) from Thermo Scientific is a perfect tool that can help shift from light optical to electron microscopy. It is an inexpensive solution for high-resolution imaging and offers the best imaging outcomes in its class.

The durable and high-brightness CeB6 source enables the Phenom Pure Desktop SEM to offer high-quality images. Also, it ensures the market’s quickest loading and imaging time. The highly reliable autofocus and automated source alignments make this system the easiest to use in the market.

Key Features

Never-Lost Navigation

The user is always aware of the sample’s position thanks to the special never-lost navigation. Summaries of both the electron and optical images offer clear reference points. Users can navigate quickly via their sample with the help of the combined motorized stage.

Easy to Use

After only 10 minutes of basic training, users can readily capture images. A wide range of sample holders is provided to house a large array of samples. Sample loading is a rapid and safe process, thanks to the patented sample vacuum loading technology.

Customize SEM

The Phenom Pure Desktop SEM can be fitted with two optional detector systems. The first one is a completely integrated energy dispersive spectroscopy (EDS) system, and the second is a secondary electron detector (SED) used for applications that need surface and topography sensitive imaging.

Specifications

Source: Thermo Fisher Scientific – Electron Microscopy Solutions

. .
Light optical magnification
  • Fixed 27x
Electron optical magnification range
  • 160–175,000x
Resolution
  • ≤15 nm
Digital zoom
  • Max. 12x
Light optical navigation camera
  • Color
Acceleration voltages
  • Default: 5 kV and 10 kV
Vacuum modes
  • High vacuum mode
  • Charge-reduction mode via optional low vacuum sample holder
Detector
  • Backscattered electron detector (standard)
  • Energy-dispersive X-ray spectroscopy detector (optional)
  • Secondary electron detector (optional)
Sample size
  • Up to 25 mm diameter
  • 32 mm (optional)
Sample height
  • Up to 35 mm
  • 100 mm (optional)
