Fiber Characterization with Desktop SEM
Thermo Scientific FiberMetric is an application designed for the analysis of fibers.

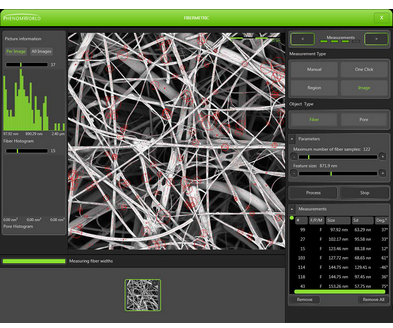

First, images are acquired using the SEM. Second, images are analyzed in FiberMetric to detect fibers. For each fiber, the software calculates the diameter, which allows the user to generate graphs to visualize the fiber diameter distribution. Finally, a report is generated automatically when the user saves the data.
Fibermetric enables rapid analysis of fibers, which is critical for quality control of products such as medical facemasks.
Key Features
Automated fiber analysis
Remove user-bias by measuring fiber diameter automatically
Quick reporting
Reports are generated automatically when saving project data
Specifications
| . |
. |
| Fiber Detection |
- 100 nm to 40 μm
- 1 to 1000 measurements per image
|
| Output |
- XML-data file (incl. diameter measurements and pore surface areas)
- JPG, TIFF
- Max. 1024 x 1024 pixel image
- Fiber and pore distribution histogram
- Minimum, maximum and average fiber size
- Standard deviation for each measurement
- Fiber orientation
|
