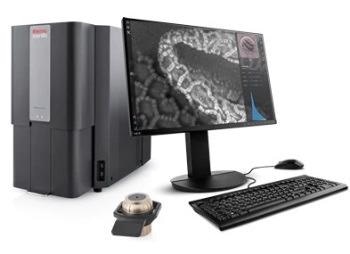

Desktop SEM for High-Performance Imaging and EDS Analysis — Phenom ProX Desktop SEM

The sixth generation of Phenom ProX G6 Desktop SEM from Thermo Scientific bridges the gap between light microscopy and floor-model SEM analysis. Thus, it helps expand the abilities of research facilities. It also provides quick and high-resolution imaging as well as an integrated energy-dispersive X-ray diffraction (EDS) detector for user-friendly, strong and quick elemental analysis.

Key Features

Fast and Easy to Use

The Phenom Pro Desktop SEM can be employed to ease the burden of routine analysis for general samples obtained from floor-model SEM instruments. The sample loading mechanism and the configuration of the instrument guarantee rapid imaging with the least time for tuning between experiments.

Long-Lifetime CeB6 Source

With the help of the Phenom Pro Desktop SEM, facility users of any experience level can rapidly start achieving high-quality results. The durable CeB6 source of the system provides high brightness while necessitating low maintenance.

Robust and Small Form Factor

The small form factor and high stability of the instrument enable its use in practically any laboratory environment. In other words, it does not need specialized infrastructure or expert supervision.

Specifications

Source: Thermo Fisher Scientific – Electron Microscopy Solutions

. .
Light optical magnification
  • 27–160x
Electron optical magnification range
  • 160-350,000x
Resolution
  • ≤ 6 nm SED and ≤ 8 nm BSD
Digital zoom
  • Max. 12x
Light optical navigation camera
  • Color
Acceleration voltages
  • Default: 5 kV, 10 kV and 15 kV
  • Advanced mode: adjustable range between 4.8 kV and 20.5 kV imaging and analysis mode
Vacuum modes
  • High vacuum mode
  • Charge reduction mode via optional low vacuum sample holder
Detector
  • Backscattered electron detector (standard)
  • Energy-dispersive X-ray detector (standard)
  • Secondary electron detector (optional)
Sample size
  • Up to 25 mm diameter (optional 32 mm)
Sample height
  • Up to 35 mm (optional 100 mm)
