Universal Testing Machines: The XFS600

Testometric now offers a twin column, floor standing, heavy duty Universal Testing Machine called XFS600 that provides complete computer control and includes a precision AC servo drive system. Featuring a high rigidity load frame with an accurate crosshead guidance system, the Universal Testing Machine can handle even the most challenging test applications of up to 600 kN.

Table 1. Source: Testometric Company Ltd

  XFS600
Force Capacity kN 600
Accuracy Better than +/- 0.5% of reading down
to 1/1000th of load cell capacity
Crosshead travel mm* 1300
Vertical space mm* 1600
Position Control Resolution mm 0.00001
Distance between columns mm* 620
Minimum Speed mm/min 0.00001
Maximum Speed mm/min 500
Speed Accuracy +/- 0.1% under stable conditions
Max force at full speed kN 600
Max speed at full load mm/min 500
Data Acquisition Rate (at PC) 500 Hz as standard (optional 1000 Hz)
PC Connection Ethernet (or USB via adaptor)
Machine Configuration Twin column, floor standing with diagonally
opposed ball screws and guide rods
Frame Stiffness kN/mm 1000
Weight kg 4000
Operating Temperature °C 0 to +55
Operating Humidity 90% relative humidity or less
Electrical Supply 3 Phase 380/400 V
Power kW 4.5

*Extended travel and wide-frame versions available on request.

Made to Measure

The Universal Testing Machine is a completely digital testing system that provides high-precision control and accuracy. Automated computer control of test methods makes it easy to operate the machine.

  • Extensometers and load cells are automatically recognized and calibration parameters can be stored in the device
  • High-resolution load cells with precisions better than +/−0.5% as low as 1/1000th of the capacity of load cells
  • Integral load cell cable routing included in the machine column prevents snagging and avoids damage to cables
  • Crosshead guidance system ensures a smooth operation and enables accurate alignment
  • Has an 800% overload capability of load cells without any sign of damage
  • Software calibration check facility allows immediate validation of the accuracy of the machine
  • Pre-loaded, high efficiency, self-cleaning ballscrews allow rapid and silent testing; equipped with lubricated end bearings that are sealed for life
  • High speed data collection systems offer up to four synchronous channels
  • Brushless servo motor and digital AC servo drive allow precision crosshead control, giving 23-bit positional control and a maintenance-free operation
  • Six I/O channels are included for extra devices, like calipers, micrometers, balances, extensometers, etc.
  • Overtravel, overload, and impact protection
  • High stiffness loading frames with precision-ground 50-mm diameter steel guide rods as well as rigid extruded support columns equipped with T-slots are provided for mounting accessories
  • Small footprint design ensures the economy of floor space
  • Telescopic covers offer extra protection to ballscrews from dust and testing debris
  • An array of contacting and non-contacting extensometers, including laser and video models, is available
  • A broad range of fixtures and grips are available for compression, tension, shear, peel, flexural, product testing, etc.

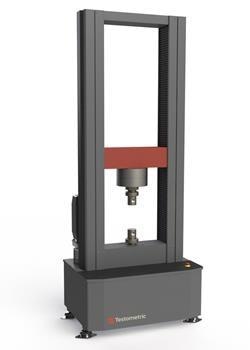

(1) Available at additional cost. Machine can alternatively be controlled using a standard PC or laptop (not supplied). (2) Machine shown with HG300 heavy-duty hydraulic grips (available separately).

(1) Available at additional cost. Machine can alternatively be controlled using a standard PC or laptop (not supplied). (2) Machine shown with HG300 heavy-duty hydraulic grips (available separately). Image Credit: Testometric Company Ltd

XFS Dimensions

Universal Testing Machines: The XFS600

Image Credit: Testometric Company Ltd

Table 2. Source: Testometric Company Ltd

  XFS600
Overall Width ‘A’ (excluding touchscreen) 1210
Depth ‘B’ 850
Overall Height ‘C’ 3000
Distance between columns ‘D’ 620
Spigot Ø E 110
Spigot Pin Ø F 50

Notes: All dimensions in millimeters. Dimensions are based on standard models, extended/wide frame versions are available on request.

Large range of grips and fixtures available.

Large range of grips and fixtures available. Image Credit: Testometric Company Ltd

High-speed modular electronics.

High speed modular electronics. Image Credit: Testometric Company Ltd

Comprehensive range of extensometry.

Comprehensive range of extensometry. Image Credit: Testometric Company Ltd

Built for Precision

Force Measurement

Conforms to ASTM E-4, DIN 51221, and AFNOR A03-501 standards; better than Grade 0.5 EN 7500-1specifications; is universally calibrated; offers a minimum range of 0.4% to 100%; automatically identifies load cells; protects electronic load cells; provides a resolution of 1 part in 500,000.

Extension Measurement

This includes a full frame length to the highest resolution of 0.000001 mm (selectable), provides an accuracy of +/− 0.01 mm, and features relative, absolute and auxiliary modes in inch, mm and percent.

Speed Control

Delivers best-in-class low-speed performance with speeds as low as 0.00001 mm/minute, and offers protection to drive system current and temperature.

Load Frame

This is a rigid frame, using a rigid extruded support column and precision ground steel guide rods. The stiffness of the frame is up to 2000 kN/mm plus a built-in K factor facility. Other features include total travel trips, electronic limit trips, a re-circulating ballscrew with bellows and safety stops that can be programmed by customers.

Electronics System

A modular electronics system enables rapid data transfer to the computer (up to 1000 Hz) through a high-speed Ethernet connection. Wide input options help connect an array of extensometers and accessories through easy plug-in interface modules.

Safety Features

Elaborate safety features guarantee maximum levels of operator safety, such as programmable extension limits, E-Stop and detection of impact or overload. Fully complies with global safety directives, such as 2006/42/EU Machinery Directive, 2014/30/EU Electromagnetic Compatibility Directive, and 2014/35/EU Low Voltage Directive.

Optional Touchscreen Panel PC

When the machine is combined with the optional IPC3 industrial-grade Panel PC with touchscreen control, it becomes a powerful, standalone system and prevents the necessity for a laptop or external computer.

The system runs a complete version of Testometric’s winTest software package and uses the newest Windows 10 operating system, and thus enables full control of the test machine and allows storage and access to unrestricted test methods and results.

The built-in mounting arm, fixed to the machine column T-Slots, can be completely adjusted for reach, height and viewing angle, enabling users to identify the most ergonomic working position.

Universal Testing Machines: The XFS600

Image Credit: Testometric Company Ltd

Specification

  • CPU-i5-4300M Intel Core i5 Processor, 2.6 GHz
  • Display 15.6″ 1366 x 768-panel resistive touch screen with dirt repellent, anti-reflective screen protection
  • QM87 Chipset, 4 x USB3.0, 3 x COM ports [RS232] and 2 x GigaLAN
  • 2.5″ 250 GB, Solid State Disk (SSD), and SATA III 6 GB/second
  • 4 GB, 1600 MHz SODIMM DDR3 204-pin

Tried and Tested Software

All Testometric models are delivered with Testometric’s complete winTest Analysis software package.

The winTest Analysis software is an outcome of several years of constant development, offering an intuitive and flexible software package to suit all kinds of material testing. Built-in test methods cover peel, shear, tensile, compression, cyclic, flexural, tear, creep and multi-stage tests.

The software includes an extensive range of industry-standard test methods and the capacity to produce and store a countless number of additional test techniques. All test data are automatically stored and can be easily exported to other software packages, like Excel, Word, Access and SPC systems for improved generation of reports.

When the RCE remote connection option is added, all machines can be directly web-linked to Testometric for remote analysis, tracking and software upgrades.
