The AP Series Ductless Fume Hood from Glas-Col offers a secure work environment for laboratory staff working with acids and rough chemicals. The hood consists of a sophisticated VAV (Variable Air Volume) system.
The VAV system quantifies the air velocity by making use of a high-quality sensor and adjusting the air velocity speed to the appropriate standard.
The system has been specifically developed to keep detrimental airborne contaminants away from the respiratory zone of the operator. Several filter media is utilized based on the kind of chemical vapors and/or particulate that is produced.
As the air has been recirculated, no exterior ducting is essential. The system features a high safety level, exhibiting real-time air velocity and providing alarms for low-velocity levels.

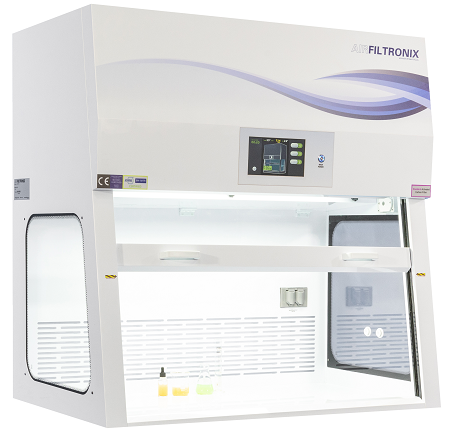

Image Credit: Glas-Col

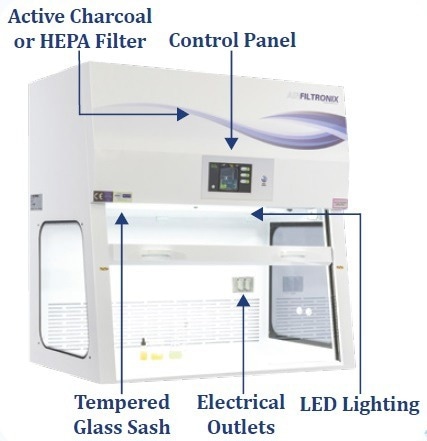

Image Credit: Glas-Col
Image Credit: Glas-Col
Features

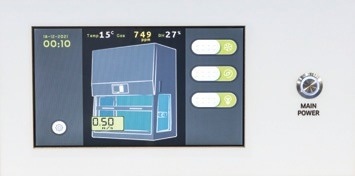

- 9” color touch screen • Tempered glass sliding front window
- Wind speed 100 FPM
- Front access for filter replacement
- Variety of HEPA & carbon filters
- EC fan - High efficiency low energy
- Monitor displays fan’s total operation time, for tracking and filter replacement purposes
- Eco-friendly, cost effective 800 LUX LED lighting
- Automatic air
- Chemical sensor alarm
- Polypropylene structure with high chemical resistance
- Built in sealed polypropylene worktop
Source: Glas-Col
| Spec/Model |
200T AP36 |
200T AP48 |
Outer Dimensions
(W x D x H) |
900 x 750 x 950 mm
35.4” x 29.5” x 48” |
1200 x 750 x 1223 mm
47.24” x 29.5” x 48” |
Workspace
(W x D x H) |
885 x 590 x 695 mm
34.8” x 23.2” x 27.3” |
1185 x 590 x 695 mm
46.6” x 23.2” x 27.3” |
| Operational Sash Opening |
495 mm / 19.5” |
495 mm /19.5” |
| Air Velocity |
0.5 ± 0.1 m/s, 100 ± 20 FPM |
0.5 ± 0.1 m/s, 100 ± 20 FPM |
| Hood Material |
Welded white polypropylene structure with built-in sealed polypropylene worktop |
| Noise Level (Tested 8” from the worktable, 48” above ground) |
<52dB |
<54dB |
| Power Supply |
110V, 60Hz Single Phase |
110V, 60Hz Single Phase |
| Illumination |
Eco-friendly LED lighting |
Eco-friendly LED lighting |
Filters
Carbon
Acid
Formaldehyde
Pre-Filter
HEPA |
Catalog #
200F CR36A
200F AC36A
200F FM36A
200F FR36A
200F HP36A |
Catalog #
200F CR48A
200F AC48A
200F FM48A
200F FR48A
200F HP48A |
| LED Light |
800 LUX, Eco-friendly LED lighting |
800 LUX, Eco-friendly LED lighting |
| Optional Base |
Catalog # 200B A36S |
Catalog # 200B A48S |
Image Credit: Glas-Col
