The AB Series Ductless Fume Hood ensures a safe working environment for lab staff working with acids and tough chemicals. The hood consists of a 5″ touch screen control panel that enables speed and system parameters to be adjusted.
Such ductless fume hoods are fitted with a strong and effective fan that pulls the air via the hood’s inlet and into the filtration membrane. The system has been developed to keep detrimental airborne contaminants away from the respiratory zone of the operator.
Various filter media are utilized based on the type of chemical vapors and/or particulate that are produced. There is no need for any exterior ducting since the air has been recirculated.

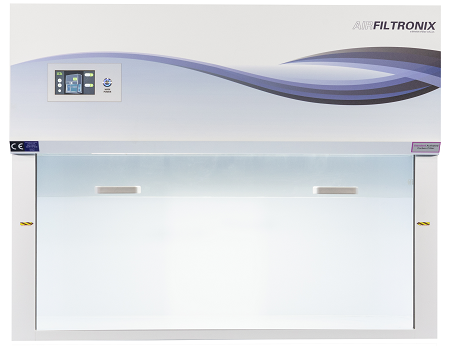

Image Credit: Glas-Col

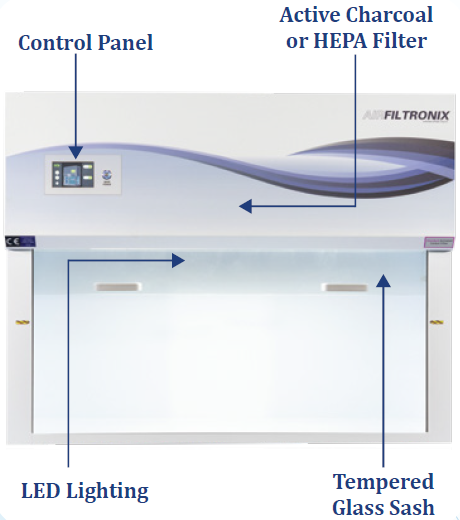

Image Credit: Glas-Col

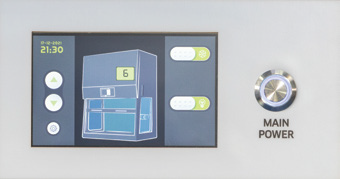

Image Credit: Glas-Col
Features
- Compact and low-price models
- Polypropylene structure available with high chemical resistance
- Built-in sealed polypropylene worktop
- 5″ color touch screen
- Comes with tempered glass sliding front window
- Back access for filter replacement provided
- Affordable and environment-friendly 800 LUX LED lighting
- Wind speed ranges from 100 to 20 FPM
- Track displays total operation time of fans, for tracking and filter purposes
- Range of HEPA and carbon filters available
- EC fan-High efficiency low energy consumption available
Source: Glas-Col
| Spec/Model |
200T AB36 |
200T AB48 |
Outer Dimensions
(W x D x H) |
900 x 580 x 950 mm
35.4” x 22.8” x 37.4” |
1200 x 580 x 950 mm
47.2” x 22.8” x 37.4” |
Workspace
(W x D x H) |
880 x 450 x 450 mm
35.6” x 17.7” x 17.7” |
1180 x 450 x 450 mm
46.4” x 17.7” x 17.7” |
| Operational Sash Opening |
300 mm / 11.8” |
300 mm / 11.8” |
| Equipment Entry Opening |
450 mm / 17.7” |
450 mm / 17.7” |
| Air Velocity |
0.5 ± 0.1 m/s, 100 ± 20 FPM |
0.5 ± 0.1 m/s, 100 ± 20 FPM |
| Hood Material |
Welded white polypropylene structure with built-in sealed polypropylene worktop |
| Noise Level (Tested 8” from the worktable, 48” above ground) |
<52dB |
<52dB |
| Power Supply |
110V, 60Hz Single Phase |
110V, 60Hz Single Phase |
| Illumination |
Eco-friendly LED lighting |
Eco-friendly LED lighting |
Filters
Carbon
HEPA |
Catalog #
200F CR36E
200F HP36E |
Catalog #
200F CR48E
200F HP48E |
| LED Light |
800 LUX, Eco-friendly LED lighting |
800 LUX, Eco-friendly LED lighting |
