A digital oxygen analyzer designed for use in hazardous areas is the SERVOTOUGH Oxy 1900.
The Oxy 1900 oxygen (O2) gas analyzer establishes new benchmarks for flexibility, stability, and dependability from a single, affordable device by providing both industry-standard capabilities and innovative, value-added choices.
- Unique patented FlowCube flow sensor for enhanced safety
- Auto-validation/calibration option reduces hands-on maintenance
- Intelligent sample vent pressure compensation option
- Zone 1/Division 1 hazardous area rated
- Digital Paramagnetic O2 measurements
- Stability is offered by the heated sample gas compartment
Overview
Feature-Rich Oxygen Analysis for Hazardous or Challenging Applications
The Oxy 1900 is a feature-rich system that meets the monitoring demands of difficult applications, setting the bar for O2 gas analysis.
The Oxy 1900 is built around Servomex's unique Paramagnetic oxygen sensor, which provides extremely dependable, accurate, and stable oxygen percentage measurements. Utilizes industry-leading proprietary Paramagnetic technology for reliable, non-depleting measurement, assuring a long lifespan of ownership with little maintenance.
A Safety-Enhanced Design for the Most Stable Oxygen Measurements
The Oxy 1900 combines better safety design with ease of use and installation, resulting in an analytical solution that may significantly decrease expenses during the product's life. It has innovative, value-added features such as a heated sample chamber for unrivaled measurement stability and simpler sample conditioning systems.
When working with potentially dangerous, hazardous area applications, users want an O2 analytical solution that offers benchmark safety compliance and total dependability without doubt. Product quality and plant safety depend on the equipment included. The Oxy is IECEx/ATEX/UKEX certified for Zone 1, cCSAus C1, D1 for North America, and SIL2 (Route 1H) hardware compliance, assuring robust, trusted dependability in hazardous area situations.
Low Maintenance, Low Cost-of-Ownership
The Oxy 1900 benefits from patent Paramagnetic sensing technology, which provides a consistent, precise measurement with little calibration. Remote device engagement through digital communication possibilities contribute to further lowering of operational expenses.
High Performance Monitoring

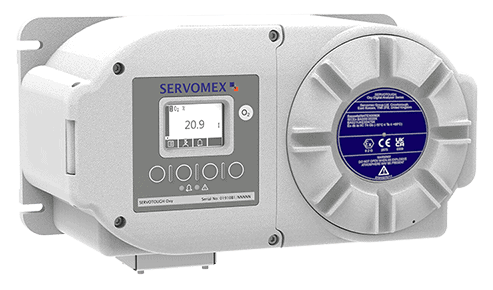

Image Credit: Servomex
The Oxy 1900 delivers innovative alternatives that provide unparalleled flexibility, operational performance, and cost savings.
An innovative heated sample bulkhead, when combined with the fully heated sample compartment, can reduce the need for a gas conditioning system on samples with a dew point of up to 50 ºC/122 ºF while also providing excellent measurement stability; a unique FlowCube sensor that guarantees low flow indication during normal operation; and an integrated pressure compensation system that compensates for sample pressure variation, allowing for tighter process control.
Features & Benefits
Leading-Edge Benefits
The Oxy 1900, designed for use in hazardous areas, provides advantages in terms of safety, performance, and maintenance costs.
Excellent Measurement Stability
A heated sample gas compartment improves the Oxy 1900's measurement performance, while an optional sample heater simplifies the sample conditioning system design.
Unique Flow Sensor
The Servomex FlowCube technology guarantees that the Oxy 1900 operates with improved safety.
Suitable for Hazardous Areas
The Oxy 1900 is suitable for usage in both safe and hazardous areas, rated to Zone 1 / Div 1. The safety system is SIL 2 (Route 1H) hardware-compliant.
Unrivalled Performance
- Utilizes industry-leading proprietary Paramagnetic technology for steady, non-depleting measurement
- Servomex has over 70 years of experience creating and pioneering gas analysis, with thousands of units utilized in the field each year
Flexible
- Can be used in places up to Zone 1/Division 1 hazardous area rating
- Intelligent diagnosis and flow sensing
- Optimized for hazardous applications, such as safety-critical oxidation, feedstock cleanup, blanket inerting, and flare stack analysis
Low Cost of Ownership
- There is no requirement for reference gases or purge gases during operation, especially with combustible materials
- Extended calibration intervals and battery life
- Auto-validation decreases hands-on maintenance requirements
Easy to Use
- Using the sample heated option reduces the need for a gas conditioning system for samples with a dew point of less than 50 °C/122 °F
- Intuitive, engineer-friendly use and interaction
- Unique FlowCube sensor technology delivers unrivaled dependability and precision
- Intelligent pressure compensation for barometric and sample vent back pressure mvariations
Benchmark Compliance
- IECEx/ATEX/UKEX: for Zone 1, and cCSAus C1, D1 For North America
- SIL2 hardware compliance (Route 1H) functional safety manual available
CE marked to meet:
- EU EMC Directive
- EU RoHS Directive
SERVOTOUGH Oxy 1900

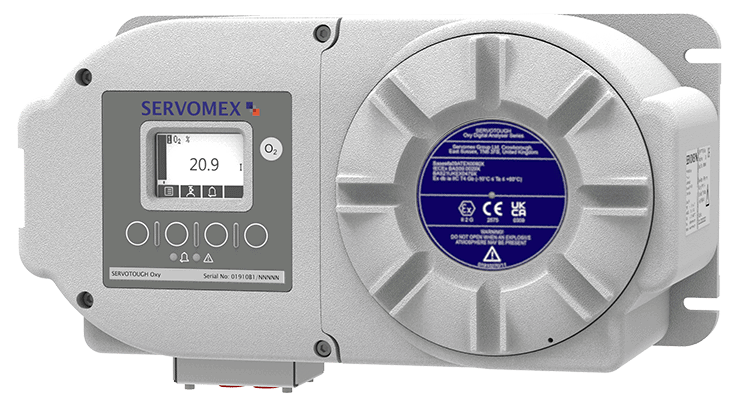

Image Credit: Servomex
Compare the Standard Analyzer Variants
Use the table below to select the appropriate analyzer variation for the application.
Source: Servomex
| Configuration |
|
| OXY VARIANTS: |
We have 3 pre-configured Oxy builds (SV01, SV02, and SV03) to cover the most common configuration options, enabling a quick turnaround from specification to delivery. |
| Standard Variant 1 (SV01) |
The pre-configured standard variant 1 base level configuration, including the solvent-resistant transducer, for general oxygen measurement requirements. |
| Standard Variant 2 (SV02) |
The pre-configured standard variant 2 mid-level configuration, adding sample heating and auto-validation/calibration to the SV01 build, covering mid-level process measurement needs. |
| Standard Variant 3 (SV03) |
The pre-configured standard variant 3 full configuration, adding pressure compensation and flow alarm options to the SV02 mid-level build, covering all your process measurement needs. |
| Standard Variant 4 (SV04) |
The pre-configured standard variant 4 Hydrogen-resilient base-level configuration, including the solvent-resistant (Hydrogen-resilient) transducer, for general oxygen measurement in sample backgrounds containing Hydrogen. |
| User Configured (UC) |
Other analyzer configurations not covered by one of the above standard variant configurations, including optional Ethernet TCP communication and corrosion-prevention purge options. |
Source: Servomex
| OXY VARIANT |
|
SV01 |
SV02 |
SV03 |
SV04 |
UC |
| Analyzer certification+ |
cCSAus |
☐ |
☐ |
☐ |
☐ |
☐ |
| IECEX |
☐ |
☐ |
☐ |
☐ |
☐ |
| ATEX |
☐ |
☐ |
☐ |
☐ |
☐ |
| UKEX |
☐ |
☐ |
☐ |
☐ |
☐ |
| Japanese approval (CML) |
☐ |
☐ |
☐ |
☐ |
☐ |
| Supply voltage |
100 - 120 Vac |
☐ |
☐ |
☐ |
☐ |
☐ |
| 220 - 240 Vac |
☐ |
☐ |
☐ |
☐ |
☐ |
| Measurement |
Standard transducer |
■ |
■ |
■ |
■ |
☐ |
| Solvent-resistant transducer |
☑ |
☑ |
☑ |
■ |
☐ |
| Hydrogen resilient transducer* |
■ |
■ |
■ |
☑ |
☐ |
| Sample flow |
Standard 150-250 ml/min (200 ml/min nominal) |
☑ |
☑ |
☑ |
☑ |
☐ |
| Bypass Option 50 to 70 l/hr (60 l/hr or 1 l/min nominal) |
■ |
■ |
■ |
■ |
☐ |
| Heated sample bulkhead |
Sample heating not required |
☑ |
■ |
■ |
☑ |
☐ |
| Sample heating fitted |
■ |
☑ |
☑ |
■ |
☐ |
| Internal pressure compensation |
Pressure compensation not required |
☑ |
☑ |
■ |
☑ |
☐ |
| Pressure compensation fitted |
■ |
■ |
☑ |
■ |
☐ |
| Internal flow sensor‡ |
Flow sensor not required |
☑ |
☑ |
■ |
☑ |
☐ |
| Flow sensor fitted |
■ |
■ |
☑ |
■ |
☐ |
| Autovalidation / calibration |
Autovalidation not required |
☑ |
■ |
■ |
☑ |
☐ |
| Autovalidation fitted |
■ |
☑ |
☑ |
■ |
☐ |
| Digital communications |
Modbus RTU (RS485) |
☑ |
☑ |
☑ |
☑ |
☐ |
| Modbus TCP (Ethernet) |
■ |
■ |
■ |
■ |
☐ |
| Sample inlet |
1/4* NPT (F) |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1/4* OD compression fitted |
☐ |
☐ |
☐ |
☐ |
☐ |
| 6 mm OD compression |
☐ |
☐ |
☐ |
☐ |
☐ |
| Enclosure options |
Breather fitted |
☑ |
☑ |
☑ |
☑ |
☐ |
| Corrosive purge fitted |
■ |
■ |
■ |
■ |
☐ |
| Gland entries |
NPT |
☐ |
☐ |
☐ |
☐ |
☐ |
| Metric M20 |
☐ |
☐ |
☐ |
☐ |
☐ |
| PG 13.5 |
☐ |
☐ |
☐ |
☐ |
☐ |
| Operators manual |
English |
☐ |
☐ |
☐ |
☐ |
☐ |
| German |
☐ |
☐ |
☐ |
☐ |
☐ |
| Japanese (CML certification option only) |
☐ |
☐ |
☐ |
☐ |
☐ |
| Service manual |
Not required |
☐ |
☐ |
☐ |
☐ |
☐ |
| English |
☐ |
☐ |
☐ |
☐ |
☐ |
| German |
☐ |
☐ |
☐ |
☐ |
☐ |
| Functional safety SIL2 (Route 1H) |
Not required |
☐ |
☐ |
☐ |
☐ |
☐ |
| Required - English safety manual |
☐ |
☐ |
☐ |
☐ |
☐ |
| Required - German safety manual |
☐ |
☐ |
☐ |
☐ |
☐ |
+ Refer to www.servomex.com/product-certification-hazardous-areas for full product certification markings
* Option not available in that variant * Available only as a special build – please consult Servomex
‡ Not suitable for sample gas composition with hydrogen/helium>10 % vol.
| ☐ |
Option selectable |
| ■ |
Option not available in that variant |
| ☑ |
Pre-selected option |
Specifications
The Oxy 1900 uses non-depleting Paramagnetic sensing technology to provide precise and sensitive digital oxygen readings.
Source: Servomex
| Gas |
Measurement |
| Oxygen (O2) |
% |
Technologies
Certificates

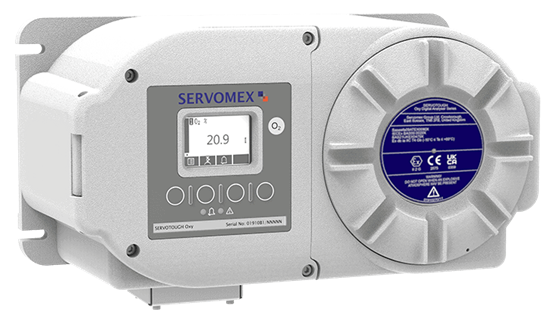

Image Credit: Servomex
- ATEX/UKEX/IECEx: Ex db ia IIC T4 Gb (-10°C ≤ Ta ≤ +60°C)* Ex tb IIIC T90°C Db (-10°C ≤Ta ≤ +60°C)*
- CML (Japanese) Ex db ia IIC T4 Gb (-10°C ≤ Ta ≤ +60°C)* Ex tb IIIC T90°C Db (-10°C ≤Ta ≤ +60°C)*
- All variants comply with BS EN 61010
- Class 1, Division 1, Groups A,B,C,D T4 (-10°C ≤ Ta ≤ +60°C)*
- Class II, Division 1, Groups E,F,G (-10°C ≤ Ta ≤ +60°C)*
*(+14°F ≤ Ta ≤ +140°F) **(+14°F ≤ Ta ≤ +122°F).
Schematics

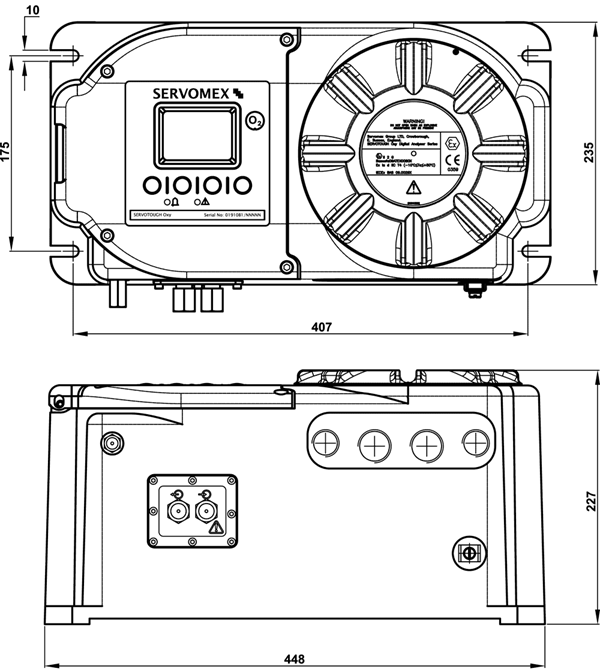

Image Credit: Servomex
Size: 448 mm (17.6”) Width × 235 mm (9.2”) High × 227 mm (8.9”) Deep
Weight: 26 kg (57 lbs) nominal
Typical Applications
The Oxy 1900 is designed for use in hazardous areas and delivers accurate Paramagnetic oxygen readings for a variety of industrial applications, including process control, feedstock purity, safety-critical oxidation, vapor recovery, and flare stack analysis.
