SERVOFLEX MiniMP 5200 SV04 for High-Precision Gas Analysis

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

The benchtop MiniMP 5200 delivers high-performance analysis of oxygen and carbon dioxide.

Standard Variants are offered to meet common application needs, while the MiniMP 5200 can be customized to meet specific process objectives.

The SERVOFLEX MiniMP 5200 is a portable, safe-area, mains or battery-powered gas analyzer that uses innovative Paramagnetic and Infrared sensor technology to provide precise single or dual percentage level readings of oxygen (O₂) and carbon dioxide (CO₂).

High-performance oxygen and CO₂ analysis
Truly portable battery-powered gas analysis
Ideal for medical gas verification applications
Integrates Paramagnetic and Infrared technologies
Ideal for CEMS, with MCERTS and TUV certification
Precise, long-term operation with minimum calibration

Portable Gas Analysis with the SERVOFLEX MiniMP 5200 Standard Variant 04

Standard Variant 04 is intended for users who want the maximum level of precision in their oxygen gas analysis. Fitted with an internal pump (0.7l.min) for atmospheric pressure samples, and furnished with a standard 1/4" barb fitting.

This type of portable analyzer is set up for % oxygen readings with accuracy to two decimal places for users who want the highest level of precision in their oxygen gas analysis.

Internal sample pump
Mains or battery power option
High-accuracy O₂ cell (accuracy ± 0.05 %)
Two-decimal-place resolution

Overview

Flexible Operation in a Fully Portable Format

With a user-friendly operation and single or dual CO₂ and O₂ measurement options, the reliable MiniMP is ideal for multiple measurement applications, including CEMS testing and verification.

The paramagnetic oxygen sensing technology developed by Servomex satisfies US and European Pharmacopeia requirements for medical oxygen assays.

The MiniMP, despite its small size, provides dependable, cutting-edge performance and accuracy in an economical, low-maintenance, and user-friendly unit.

Reliability Users Can Depend On

When working in light industrial or laboratory settings, users require dependable equipment to assist them in doing their job as efficiently as possible.

Certain applications necessitate the use of high-quality certified equipment. Regardless of the application monitoring need, users want a device with a long battery life, minimal operational costs, simple continuing maintenance, and convenience of use. And we believe there is no need to compromise.

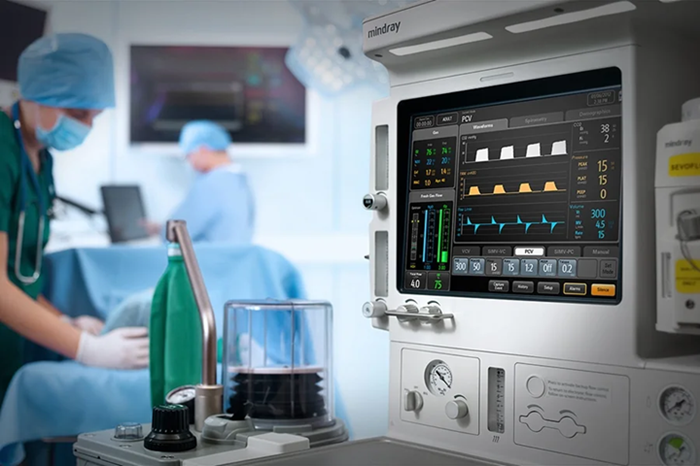

MiniMP 5200 04 for High-Precision Gas Analysis product in use in medical area, two people wearing scrubs can be seen in the background.

Image Credit: Servomex

A No-Compromise Solution

The MiniMP is a user-friendly device with powerful CO₂ and O₂ monitoring capabilities, making it suitable for various applications.

The MiniMP has the capability to satisfy the needs of sensitive, accurate testing in an easy-to-use interface with a single or dual sample format, as well as long-life operation powered by a robust battery system.

True Portability

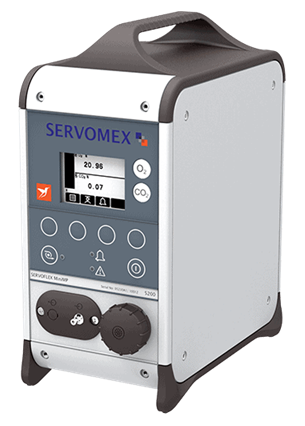

MiniMP 5200 04 for High-Precision Gas Analysis front on product image.

Image Credit: Servomex

The MiniMP is the only device with real battery-powered portability. This, along with gas-specific precision, guarantees that the MiniMP is suitable for a wide range of monitoring applications, from the verification of medical oxygen to CEMS testing.

It is ready whenever users are. For applications demanding precise, sensitive, low maintenance requirements, and operational flexibility, the MiniMP provides a small, intuitive, and economical solution that meets all expectations.

Features and Benefits

Unrivalled Performance

Ergonomic, space-saving footprint
Patented Paramagnetic and Infrared technologies for great sensitivity and dependability
Precision single or dual measurement operations
Servomex has over 70 years of experience creating and pioneering gas analysis, with thousands of units used in the field each year

Flexible

A variety of sampling and power settings
Precise measurement of CO₂ and O₂ levels
Suitable for laboratory, healthcare, fermentation, combustion analysis, CEMS testing, light industrial applications, and medical gas transfill

Easy to Use

Mains or battery power options
Only device in its class that offers real portability
Rapid start and use
Small footprint, readily integrated into any area

Low cost of Ownership

Non-depleting technologies maximize availability and reduce maintenance/running costs
Paramagnetic O₂ and Infrared CO₂ sensing technologies require minimal ongoing calibration

Benchmark Compliance

European Pharmacopeia compliant (O₂)
Meets USFDA requirements for verification of medical O₂ USP and N₂ NF
Source Reference Method (O₂) to EN14789, verification of AMS to EN14181
TÜV certified EN15267-3

Compare the Standard Analyzer Variants

Consult the table below to identify the appropriate analyzer variant for portable gas analysis applications.

Source: Servomex

Configuration
5200 MiniMP variants	There are two standard configurations (SV01 - industrial O₂ and SV02 - high accuracy O₂). These cover a basic setup to enable a quick turnaround from specification to delivery.
Standard Variant (SV01)	This is a pre-configured standard variant base level configuration, including an industrial O₂ paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed.
Standard Variant (SV02)	This is a pre-configured standard variant base level configuration, including a high accuracy O₂ paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed.
Standard Variant (SV03)	This is a pre-configured standard variant base level configuration, including an industrial O₂ paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed.
Standard Variant (SV04)	This is a pre-configured standard variant base level configuration, including a high accuracy O₂ paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed.
User Configured	This variant can be configured to the user's specific configuration and can have two measurements - Industrial or high accuracy O2 and 10 %, 25 %, 50%, 100% CO2. Other accessories can be added as needed.

Source: Servomex

MiniMP Variants		SV01	SV02	SV03	SV04	UC
Supply power Lithium-ion batteries providing 8-36 hours of use, depending on sensor selections	UK Mains	☐	☐	☐	☐	☐
	US Mains	☐	☐	☐	☐	☐
	European Mains	☐	☐	☐	☐	☐
	Rechargeable battery UK	☐	☐	☐	☐	☐
	Rechargeable battery US	☐	☐	☐	☐	☐
	Rechargeable battery European	☐	☐	☐	☐	☐
Measurement 1	Industrial PM cell	☑	■	☑	■	☐
	High Accuracy PM cell	■	☑	■	☑	☐
	Infrared CO₂	■	■	■	■	☐
Measurement 2	Industrial PM cell	■	■	■	☐	☐
	High Accuracy PM cell	■	■	■	■	☐
	Infrared CO₂	■	■	■	■	☐
mA output (RS 232 output included as standard)	None	■	■	■	■	☐
	Single	☑	☑	☑	☑	☐
	Dual	■	■	■	■	☐
Inlet coupler	5 mm OD stub with "QuickConnect" barb fitting for 6.3 mm (1/4") ID tube	☐	☐	☐	☐	☐
Inlet coupler	1/8" NPT fitting adaptor	☐	☐	☐	☐	☐
Sampling system	AFCD	☑	☑	■	■	☐
Sampling system	0.71 (0.02 cu.ft)/min internal pump with user-configurable timer	■	■	☑	☑	☐
Exhaust/vent outlet	Front (pump version only)	■	■	■	■	☐
Exhaust/vent outlet	Rear	☑	☑	☑	☑	☐
User manual	English	☐	☐	☐	☐	☐
	French	☐	☐	☐	☐	☐
	German	☐	☐	☐	☐	☐
	Italian	☐	☐	☐	☐	☐
Printer	Supplied	☐	☐	☐	☐	☐
12/24 V vehicle power adaptor	Supplied	☐	☐	☐	☐	☐
Side panel accessories	Unvalved flowmeter 1-10 I min^-1 (0.035-0.35 f³ min^-1) (AFCD only)	☐	☐	■	■	☐
	Valved flowmeter 1-10 I min^-1 (0.035-0.35 ft³ min^-1) (pump version only)	■	■	☐	☐	☐
	Sample conditioning panel, Silica gel drier and catchpot fitted to the side of the analyzer (pump version only)	■	■	☐	☐	☐
Probe holder	Supplied	☐	☐	☐	☐	☐
Probe	25 cm, 316 stainless steel, tip, < 180 °C	☐	☐	☐	☐	☐
Probe	1 m 316 stainless steel	☐	☐	☐	☐	☐
Transport case		☐	☐	☐	☐	☐
2 years spares	Recommended spares for two years operation, comprising replacement filters (5) and filter cap 'O' ring	☐	☐	☐	☐	☐

☐	Option selectable
■	Option not available in that variant
☑	Pre-selected option

The Benefits of Benchtop Analysis

The MiniMP offers dependable O₂ and CO₂ monitoring for CEMS, industrial gas, and medical gas applications, using a Li-ion battery to ensure full mobility.

Meets Medical Gas Requirements

The SERVOFLEX MiniMP 5200 complies with FDA guidelines for medical O2 and N2 verification and meets European Pharmacopoeia requirements for medical O₂ assay.

Ideal for CEMS Verification

The MiniMP, certified to TUV EN15267/EN14181 (QAL 1), offers a one-of-a-kind portable solution for reference O₂ analysis in CEMS.

Non-Depleting Sensors

The analyzer is built on Servomex’s digital Paramagnetic and Infrared sensor technologies, providing reliable accuracy and extended operational life with minimal calibration.

Specifications

Using cutting-edge, non-depleting sensing technology, the SERVOFLEX MiniMP 5200 provides genuinely portable single or dual measurements of carbon dioxide and oxygen.

Source: Servomex

Gas	Measurement
Oxygen (O₂)	%
Carbon dioxide (CO₂)	%

Technologies

Infrared TAB
Paramagnetic

Certificates

Meets USFDA performance requirements for verifying medical O₂ use CE in accordance with EEC EMC and WEEE Directives
UL/CE approved 100-240 V/43=70 Hz
AC power supply

Schematics

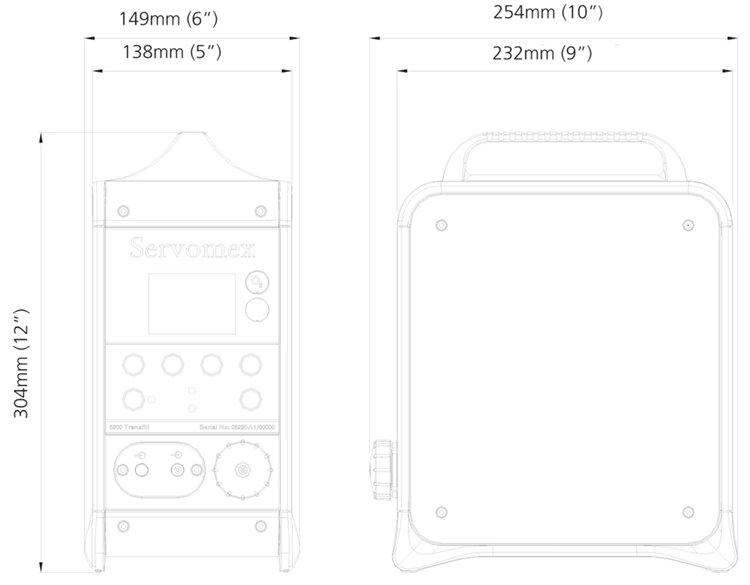

MiniMP 5200 04 for High-Precision Gas Analysis schematic in black and white, front and side view with dimensions.

Image Credit: Servomex

Size: 150 mm (6.0”) Width × 300 mm (12.0”) High × 260 mm (10.5”) Deep

Weight: 2.6 kgs (5.7 lbs) – 3.9 kgs (8.6 lbs) depending on config

Typical Applications

The MiniMP 5200 enables accurate benchtop measurement of oxygen and carbon dioxide in diverse applications, covering combustion analysis, medical gas storage facilities, air separation plants, gas bottling operations, and laboratory environments.
