The MiniMP 5200 benchtop analyzer analyzes oxygen and carbon dioxide with great performance.
The MiniMP 5200 can be customized for particular process requirements, or standard variants are offered to satisfy typical application requirements.
Using cutting-edge paramagnetic and infrared sensing technologies, the SERVOFLEX MiniMP 5200 is a portable, safe area, mains, or battery-powered gas analyzer that provides precise single or dual percentage level readings of carbon dioxide (CO2) and oxygen (O2).
- High-performance oxygen and CO2 analysis
- Suitable for CEMS, with MCERTS and TUV certification
- Perfect for medical gas verification applications
- Accurate, long-term operation with minimum calibration
- Truly portable battery-powered gas analysis
- Combines Paramagnetic and Infrared technologies
Portable Gas Analysis with the SERVOFLEX MiniMP 5200 Standard Variant 03
Standard Variant 03 is intended to meet the common industrial gas analysis needs of most customers. Fitted with an internal pump (0.7l.min) for atmospheric pressure samples, and a standard 1/4" barb fitting.
This portable analyzer is designed to meet most users’ standard industrial gas analysis needs and is equipped with a standard oxygen sensor to address the majority of common process challenges.
- Industrial-accuracy O2 cell (accuracy ±0.1 %)
- Internal sample pump
- One-decimal-place resolution
- Mains or battery power option
Overview
Flexible Operation in a Fully Portable Format
The dependable MiniMP is well-suited for a wide range of measurement applications, including CEMS testing and verification, supported by its simple operation and single or dual CO2 and O2 measurement capability.
Servomex's Paramagnetic oxygen sensing technology fulfills US and European Pharmacopeia requirements for the assay of medical oxygen.
The MiniMP offers dependable, cutting-edge performance and accuracy in a cost-effective, low-maintenance, and user-friendly device that belies its size.
Reliability Users Can Depend On
Users desire dependable equipment that will enable them to complete their activities as efficiently as possible when working in light industrial or laboratory settings.
Some applications require equipment certified to the highest standards. Users need a device that offers extended battery life, low operating costs, straightforward ongoing maintenance, and ease of use, regardless of the monitoring application. There is no reason to compromise.
Image Credit: Servomex
A No-Compromise Solution
With its sophisticated CO2 and O2 monitoring features, the MiniMP is an easy-to-use device that can be used for numerous applications.
The MiniMP has the full capacity to meet the demands of sensitive, accurate testing in an easy-to-use interface with a single or dual sample format, and it operates for a long time owing to a powerful battery system.
True Portability

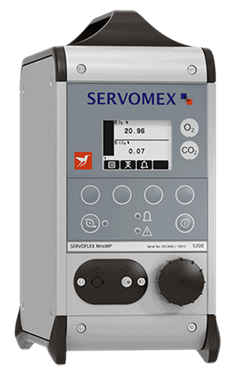

Image Credit: Servomex
The MiniMP is the only device that provides genuine battery-powered portability. This, paired with gas-specific precision, guarantees that the MiniMP is suited for a wide range of monitoring applications, including medical oxygen verification and CEMS testing.
It is always ready for use whenever users need it. When sensitive and accurate detection, minimal maintenance, and flexible operation are required, the MiniMP offers a compact, user-friendly, and cost-effective solution that excels in every aspect.
Features and Benefits
Unrivalled Performance
- Ergonomic, space-saving footprint
- Precision single or dual measurement operations
- Patented Paramagnetic and Infrared technologies for great sensitivity and dependability
- Servomex has over 70 years of experience creating and pioneering gas analysis, with thousands of units used in the field each year
Flexible
- A variety of sampling and power settings
- Accurate measurement of CO2 and O2 levels
- Ideal for laboratory, healthcare, fermentation, combustion analysis, CEMS testing, light industrial applications, and medical gas transfill
Easy to Use
- Mains or battery power options
- Quick start and use
- The only device in its class that provides real portability
- Small footprint, readily integrated into any area
Low Cost of Ownership
- Paramagnetic O2 and Infrared CO2 sensing technologies require minimal ongoing calibration
- Non-depleting technologies maximize availability and reduce maintenance/running costs
Benchmark Compliance
- Source Reference Method (O2) to EN14789, verification of AMS to EN14181
- European Pharmacopeia compliant (O2)
- TÜV certified EN15267-3
- Meets USFDA requirements for verification of medical O2 USP and N2 NF
Compare the Standard Analyzer Variants
Use the table below to determine the correct analyzer variant for portable gas analysis requirements.
Source: Servomex
| Configuration |
|
| 5200 MiniMP variants |
There are two standard configurations (SV01 - industrial O2 and SV02 - high accuracy O2). These cover a basic setup to enable a quick turnaround from specification to delivery. |
| Standard Variant (SV01) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV02) |
This is a pre-configured standard variant base level configuration, including a high accuracy O2 paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV03) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV04) |
This is a pre-configured standard variant base level configuration, including a high accuracy O2 paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| User Configured |
This variant can be configured to the user's specific configuration and can have two measurements - Industrial or high accuracy O2 and 10 %, 25 %, 50%, 100% CO2. Other accessories can be added as needed. |
Source: Servomex
| MiniMP Variants |
|
SV01 |
SV02 |
SV03 |
SV04 |
UC |
| Supply power Lithium-ion batteries providing 8-36 hours of use, depending on sensor selections |
UK Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| US Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| European Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery UK |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery US |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery European |
☐ |
☐ |
☐ |
☐ |
☐ |
| Measurement 1 |
Industrial PM cell |
☑ |
■ |
☑ |
■ |
☐ |
| High Accuracy PM cell |
■ |
☑ |
■ |
☑ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| Measurement 2 |
Industrial PM cell |
■ |
■ |
■ |
☐ |
☐ |
| High Accuracy PM cell |
■ |
■ |
■ |
■ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| mA output (RS 232 output included as standard) |
None |
■ |
■ |
■ |
■ |
☐ |
| Single |
☑ |
☑ |
☑ |
☑ |
☐ |
| Dual |
■ |
■ |
■ |
■ |
☐ |
| Inlet coupler |
5 mm OD stub with "QuickConnect" barb fitting for 6.3 mm (1/4") ID tube |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1/8" NPT fitting adaptor |
☐ |
☐ |
☐ |
☐ |
☐ |
| Sampling system |
AFCD |
☑ |
☑ |
■ |
■ |
☐ |
| 0.71 (0.02 cu.ft)/min internal pump with user-configurable timer |
■ |
■ |
☑ |
☑ |
☐ |
| Exhaust/vent outlet |
Front (pump version only) |
■ |
■ |
■ |
■ |
☐ |
| Rear |
☑ |
☑ |
☑ |
☑ |
☐ |
| User manual |
English |
☐ |
☐ |
☐ |
☐ |
☐ |
| French |
☐ |
☐ |
☐ |
☐ |
☐ |
| German |
☐ |
☐ |
☐ |
☐ |
☐ |
| Italian |
☐ |
☐ |
☐ |
☐ |
☐ |
| Printer |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| 12/24 V vehicle power adaptor |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Side panel accessories |
Unvalved flowmeter 1-10 I min-1 (0.035-0.35 f3 min-1) (AFCD only) |
☐ |
☐ |
■ |
■ |
☐ |
| Valved flowmeter 1-10 I min-1 (0.035-0.35 ft3 min-1) (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Sample conditioning panel, Silica gel drier and catchpot fitted to the side of the analyzer (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Probe holder |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Probe |
25 cm, 316 stainless steel, tip, < 180 °C |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1 m 316 stainless steel |
☐ |
☐ |
☐ |
☐ |
☐ |
| Transport case |
|
☐ |
☐ |
☐ |
☐ |
☐ |
| 2 years spares |
Recommended spares for two years of operation, comprising replacement filters (5) and filter cap 'O' ring |
☐ |
☐ |
☐ |
☐ |
☐ |
| ☐ |
Option selectable |
| ■ |
Option not available in that variant |
| ☑ |
Pre-selected option |
The Benefits of Benchtop Analysis
The MiniMP enables consistent O2 and CO2 measurement across CEMS, industrial gas, and medical gas uses, with a Li-ion battery providing genuine mobile operation.
Meets Medical Gas Requirements
The SERVOFLEX MiniMP 5200 satisfies FDA criteria for medical oxygen and nitrogen verification, along with European Pharmacopeia regulations for medical oxygen assay.
Ideal for CEMS Verification
With TUV EN15267/EN14181 (QAL 1) certification, the MiniMP serves as a unique portable analyzer for reference O2 analysis within CEMS systems.
Non-Depleting Sensors
The analyzer incorporates Servomex’s digital Paramagnetic and Infrared sensor technologies, ensuring precise and durable performance with limited calibration needs.
Specifications
The MiniMP 5200 offers genuinely portable single or dual oxygen and carbon dioxide measurements utilizing modern, non-depleting sensor technology.
Source: Servomex
| Gas |
Measurement |
| Oxygen (O2) |
% |
| Carbon dioxide (CO2) |
% |
Technologies
- Paramagnetic
- Infrared TAB
Certificates
- AC power supply
- Meets USFDA performance requirements for verifying medical O2 use CE in accordance with EEC EMC and WEEE Directives
- UL/CE approved 100-240 V/43=70 Hz

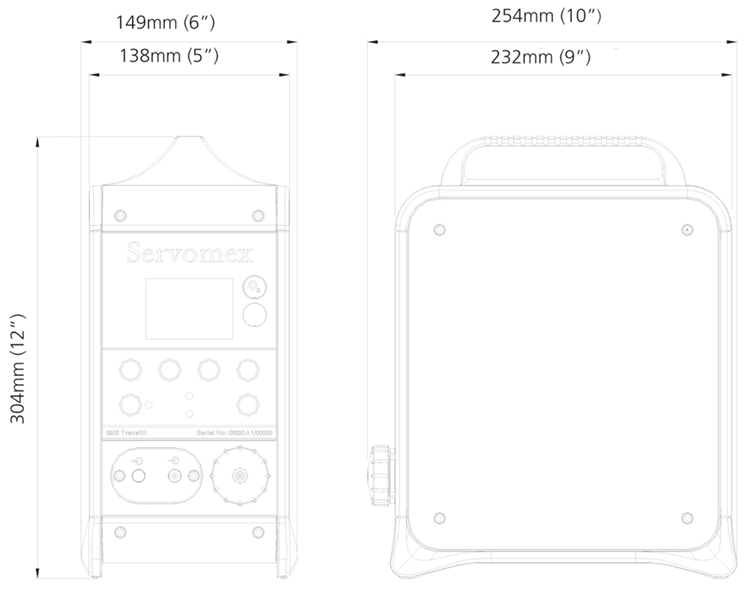

Schematics
Image Credit: Servomex
Size: 150 mm (6.0”) Width × 300 mm (12.0”) High × 260 mm (10.5”) Deep
Weight: 2.6 kgs (5.7 lbs) – 3.9 kgs (8.6 lbs) depending on config
Typical Applications
The MiniMP 5200 provides consistent benchtop monitoring of oxygen and carbon dioxide across a wide range of applications, including combustion analysis, medical gas storage operations, air separation units, gas bottling facilities, and laboratory settings.
