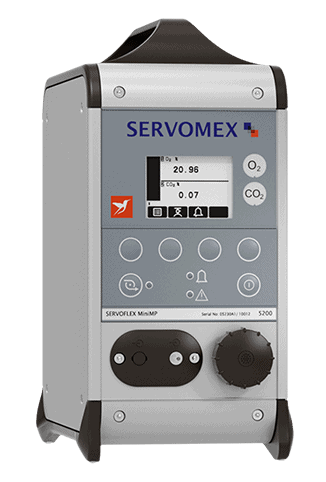

The benchtop MiniMP 5200 for high-performance analysis of oxygen and carbon dioxide.
Standard variants are available to fulfill common application requirements, and the MiniMP 5200 can be tailored to unique process demands.
The SERVOFLEX MiniMP 5200 is a portable, safe-area, mains or battery-powered gas analyzer that uses innovative Paramagnetic and Infrared sensor technology to provide precise single or dual percentage level readings of oxygen (O2) and carbon dioxide (CO2).
- High-performance oxygen and CO2 analysis
- Suitable for CEMS, with MCERTS and TUV certification
- Accurate, long-term operation with minimum calibration
- Truly portable battery-powered gas analysis
- Perfect for medical gas verification applications
- Combines Paramagnetic and Infrared technologies
Portable Gas Analysis with the SERVOFLEX MiniMP 5200 Standard Variant 01
Standard Variant 01 is intended to suit the common industrial gas analysis needs of most customers. Fitted with an automatic flow control mechanism for sample pressures between 1-10 psi, and furnished with a standard 1/4" barb fitting.
This portable analyzer is designed to suit most users' standard industrial gas analysis requirements, and it comes equipped with the standard oxygen sensor to tackle the majority of common process difficulties.
- Automatic flow control device (AFCD)
- Mains or battery power option
- Industrial-accuracy O2 cell (accuracy ±0.1 %)
- One-decimal-place resolution
Overview
Flexible Operation in a Fully Portable Format
The MiniMP is suitable for a variety of measurement applications, including CEMS testing and verification, due to its simple operation and ability to do single or dual CO2 and O2 measurements.
Servomex's paramagnetic oxygen-sensing technology meets the medical oxygen assay requirements set by the US and European Pharmacopeia.
The MiniMP, despite its small size, provides dependable, cutting-edge performance and accuracy in a cheap, low-maintenance, and user-friendly instrument.
Reliability Users Can Depend On
When working in light industrial or laboratory applications, users want reliable equipment that will help them do their tasks as effectively as possible.
Certain applications require equipment certified to the highest standard. Regardless of the application, users will desire a device with a long battery life, low operational expenses, simplified ongoing maintenance, and ease of use. There is no reason to compromise.
Image Credit: Servomex
A No-Compromise Solution
The MiniMP is a user-friendly device with advanced CO2 and O2 monitoring capabilities, making it suitable for a variety of applications.
The MiniMP has the full potential to satisfy the needs of sensitive, accurate testing in an easy-to-use interface that offers a single or dual sample format, and it runs for a long time, thanks to a strong battery system.

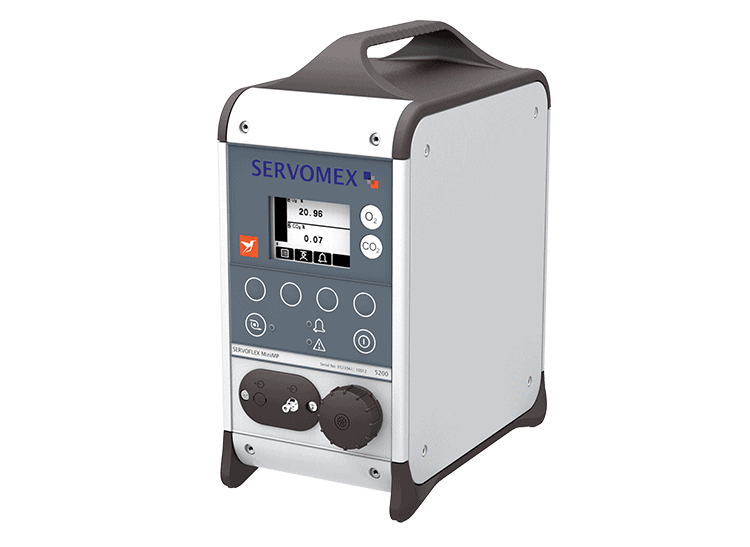

True Portability
Image Credit: Servomex
The MiniMP is the only gadget that provides genuine battery-powered portability. This, paired with gas-specific precision, guarantees that the MiniMP is suited for a wide range of monitoring applications, including medical oxygen verification and CEMS testing.
It is always ready for use. When users demand sensitive, precise detection, low maintenance needs, and the freedom to do the work their way, the MiniMP is a tiny, easy-to-use, and cost-effective solution that delivers on all levels.
Features and Benefits
Unrivalled Performance
- Patented Paramagnetic and Infrared technologies for great sensitivity and dependability
- Precision single or dual measurement operations
- Ergonomic, space-saving footprint
- Servomex has over 70 years of experience creating and pioneering gas analysis, with thousands of units operating in the field each year
Flexible
- Accurate measurement of CO2 and O2 levels
- Ideal for laboratory, healthcare, fermentation, combustion analysis, CEMS testing, light industrial applications, and medical gas transfill
- A variety of sampling and power settings
Easy to Use
- The only analyzer in its class that provides real portability
- Quick start and use
- Small footprint, readily integrated into any area
- Mains or battery power options
Low Cost of Ownership
- Non-depleting technologies maximize availability and reduce maintenance/running costs
- Paramagnetic O2 and Infrared CO2 sensing technologies require minimal ongoing calibration
Benchmark Compliance
- TÜV certified EN15267-3
- Source Reference Method (O2) to EN14789, verification of AMS to EN14181
- Meets USFDA requirements for verification of medical O2 USP and N2 NF
- European Pharmacopeia compliant (O2)
Compare the Standard Analyzer Variants
Use the table below to select the appropriate analyzer variant for the portable gas analysis requirements.
Source: Servomex
| Configuration |
|
| 5200 MiniMP variants |
There are two standard configurations (SV01 - industrial O2 and SV02 - high accuracy O2). These cover a basic setup to enable a quick turnaround from specification to delivery. |
| Standard Variant (SV01) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, AFCD, single mA output, and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV02) |
This is a pre-configured standard variant base level configuration, including a high-accuracy O2 paramagnetic cell, AFCD, single mA output, and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV03) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, internal pump, single mA output, and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV04) |
This is a pre-configured standard variant base level configuration, including a high-accuracy O2 paramagnetic cell, internal pump, single mA output, and a rear exhaust output. Other accessories can be added as needed. |
| User Configured |
This variant can be configured to the user's specific configuration and can have two measurements - Industrial or high accuracy O2 and 10 %, 25 %, 50%, 100% CO2. Other accessories can be added as needed. |
Source: Servomex
| MiniMP Variants |
|
SV01 |
SV02 |
SV03 |
SV04 |
UC |
| Supply power Lithium ion batteries providing 8-36 hours use, depending on sensor selections |
UK Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| US Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| European Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery UK |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery US |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery European |
☐ |
☐ |
☐ |
☐ |
☐ |
| Measurement 1 |
Industrial PM cell |
☑ |
■ |
☑ |
■ |
☐ |
| High Accuracy PM cell |
■ |
☑ |
■ |
☑ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| Measurement 2 |
Industrial PM cell |
■ |
■ |
■ |
☐ |
☐ |
| High Accuracy PM cell |
■ |
■ |
■ |
■ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| mA output (RS 232 output included as standard) |
None |
■ |
■ |
■ |
■ |
☐ |
| Single |
☑ |
☑ |
☑ |
☑ |
☐ |
| Dual |
■ |
■ |
■ |
■ |
☐ |
| Inlet coupler |
5 mm OD stub with "QuickConnect" barb fitting for 6.3 mm (1/4") ID tube |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1/8" NPT fitting adaptor |
☐ |
☐ |
☐ |
☐ |
☐ |
| Sampling system |
AFCD |
☑ |
☑ |
■ |
■ |
☐ |
| 0.71 (0.02 cu.ft)/min internal pump with user-configurable timer |
■ |
■ |
☑ |
☑ |
☐ |
| Exhaust/vent outlet |
Front (pump version only) |
■ |
■ |
■ |
■ |
☐ |
| Rear |
☑ |
☑ |
☑ |
☑ |
☐ |
| User manual |
English |
☐ |
☐ |
☐ |
☐ |
☐ |
| French |
☐ |
☐ |
☐ |
☐ |
☐ |
| German |
☐ |
☐ |
☐ |
☐ |
☐ |
| Italian |
☐ |
☐ |
☐ |
☐ |
☐ |
| Printer |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| 12/24 V vehicle power adaptor |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Side panel accessories |
Unvalved flowmeter 1-10 I min-1 (0.035-0.35 f3 min-1) (AFCD only) |
☐ |
☐ |
■ |
■ |
☐ |
| Valved flowmeter 1-10 I min-1 (0.035-0.35 ft3 min-1) (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Sample conditioning panel, Silica gel drier, and catchpot fitted to the side of the analyzer (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Probe holder |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Probe |
25 cm, 316 stainless steel, tip, < 180 °C |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1 m 316 stainless steel |
☐ |
☐ |
☐ |
☐ |
☐ |
| Transport case |
|
☐ |
☐ |
☐ |
☐ |
☐ |
| 2 years spares |
Recommended spares for two years of operation, comprising replacement filters (5) and filter cap 'O' ring |
☐ |
☐ |
☐ |
☐ |
☐ |
| ☐ |
Option selectable |
| ■ |
Option not available in that variant |
| ☑ |
Pre-selected option |
The Benefits of Benchtop Analysis
The MiniMP provides consistent O2 and CO2 monitoring for CEMS, industrial gas, and medical gas applications, powered by a Li-ion battery for real mobility.
Meets Medical Gas Requirements
The SERVOFLEX MiniMP 5200 meets FDA criteria for medical O2 and N2 verification, as well as European Pharmacopeia regulations for medical O2 assay.
Ideal for CEMS Verification
Certified to TUV EN15267/EN14181 (QAL 1), the MiniMP is a unique portable analyzer for reference O2 analysis in CEMS.
Non-Depleting Sensors
The analyzer employs Servomex's digital Paramagnetic and Infrared sensor technologies to provide precise, long-lasting functioning with little calibration.
Specifications
The MiniMP 5200 provides genuinely portable single or dual oxygen and carbon dioxide measurements utilizing modern, non-depleting sensor technology.
Source: Servomex
| Gas |
Measurement |
| Oxygen (O2) |
% |
| Carbon dioxide (CO2) |
% |
Technologies
- Paramagnetic
- Infrared TAB
Certificates
- UL/CE approved 100-240 V/43=70 Hz
- AC power supply
- Meets USFDA performance requirements for verifying medical O2 use CE in accordance with EEC EMC and WEEE Directives

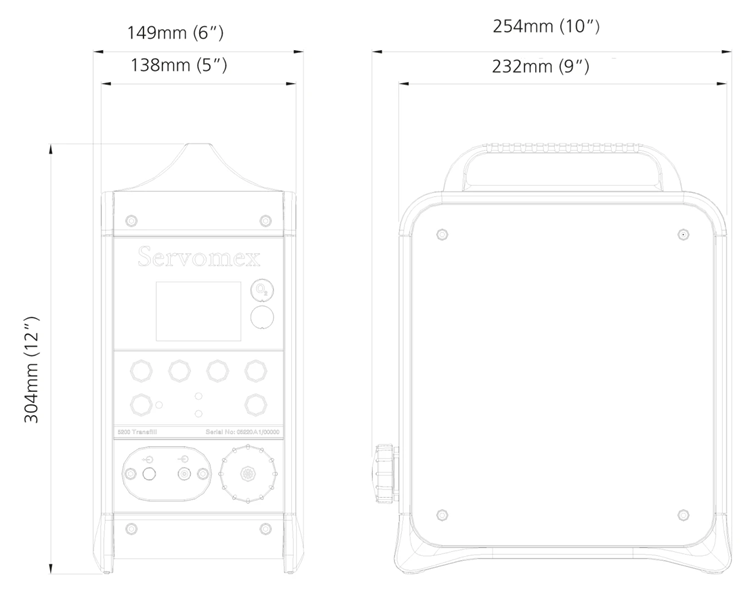

Schematics
Image Credit: Servomex
Size: 150 mm (6.0”) Width × 300 mm (12.0”) High × 260 mm (10.5”) Deep
Weight: 2.6 kgs (5.7 lbs) – 3.9 kgs (8.6 lbs) depending on config
Typical Applications
The MiniMP 5200 provides dependable benchtop measurement of oxygen and carbon dioxide across various applications, including combustion analysis, medical gas storage facilities, air separation and gas bottling plants, as well as laboratory environments.
