High-performance oxygen and carbon dioxide analysis can be obtained with the benchtop MiniMP 5200.
The MiniMP 5200 can be tailored to meet specific process requirements, or standard models are available to satisfy general application needs.
Using cutting-edge paramagnetic and infrared sensing technologies, the SERVOFLEX MiniMP 5200 is a portable, safe area, mains or battery-powered gas analyzer that provides precise single or dual percentage level readings of oxygen (O2) and carbon dioxide (CO2).
- High-performance oxygen and CO2 analysis
- Accurate, long-term operation with minimum calibration
- Suitable for CEMS, with MCERTS and TUV certification
- Perfect for medical gas verification applications
- Truly portable battery-powered gas analysis
- Integrates Paramagnetic and Infrared technologies
Portable Gas Analysis with the SERVOFLEX MiniMP 5200 Standard Variant 02
Users who require the highest level of accuracy in their oxygen gas analysis should select Standard Variant 02. Equipped with a standard 1/4'' barb fitting and an automatic flow control device for sample pressures ranging from 1 to 10 psi.
This type of portable analyzer is designed for accurate % oxygen readings, with precision to two decimal places, for users who require the highest level of accuracy in their oxygen gas analysis.
- High-accuracy O2 cell (accuracy ±0.05 %)
- Two-decimal-place resolution
- Automatic flow control device (AFCD)
- Mains or battery power option
Overview
Flexible Operation in a Fully Portable Format
The reliable MiniMP is well-suited to a variety of measurement applications, including CEMS testing and verification, thanks to its simple and straightforward operation and single or dual CO2 and O2 measurement applications.
For the assay of medical oxygen, Servomex's paramagnetic oxygen sensing technology satisfies US and European Pharmacopeia requirements.
The MiniMP is an inexpensive, low-maintenance, and user-friendly analyzer that offers dependable, cutting-edge performance and accuracy despite its small size.
Reliability Users Can Depend On
Users need dependable equipment that enables them to complete their activities as efficiently as possible in light industrial or laboratory settings.
Equipment certified to the highest standards is necessary for some applications. Users will want a device with a long battery life, minimal operating costs, simple maintenance, and convenience of use, regardless of the application monitoring requirement. With the MiniMP there's no need to compromise.
Image Credit: Servomex
A No-Compromise Solution
The MiniMP is the ideal choice for a variety of applications, as it combines high-powered CO2 and O2 monitoring capabilities with ease of use and straightforward maintenance.
With a single or dual sample format, a user-friendly interface, and long-lasting operation driven by a strong battery system, the MiniMP fully meets the requirements of sensitive and accurate testing.

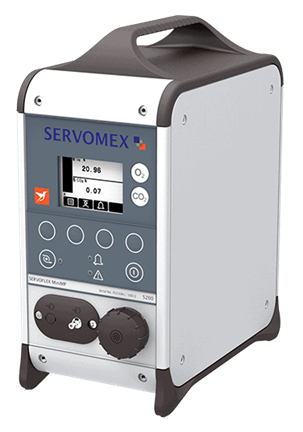

True Portability
Image Credit: Servomex
The only device that truly offers battery-powered portability is the MiniMP. This, combined with gas-specific precision, ensures that the MiniMP is well-suited for various monitoring requirements, including CEMS testing and the verification of medical oxygen.
When users are ready, it is always ready to go. The MiniMP is a compact, user-friendly, and reasonably priced system that meets users' demands for sensitive, accurate detection, low maintenance requirements, and the flexibility to complete tasks as required.
Features and Benefits
Unrivalled Performance
- Ergonomic, space-saving footprint
- Servomex has over 70 years of experience creating and pioneering gas analysis, with thousands of units utilized in the field each year
- Patented Paramagnetic and Infrared technologies for great sensitivity and dependability
- Precision single or dual measurement operations
Flexible
- Ideal for laboratory, healthcare, fermentation, combustion analysis, CEMS testing, light industrial applications, and medical gas transfill
- Accurate measurement of CO2 and O2 levels
- A variety of sampling and power settings
Easy to Use
- Small footprint, readily integrated into any area
- Mains or battery power options
- The only device in its class that provides real portability
- Quick start and use
Low cost of Ownership
- Non-depleting technologies maximize availability and reduce maintenance/running costs
- Paramagnetic O2 and Infrared CO2 sensing technologies require minimal ongoing calibration
Benchmark Compliance
- Meets USFDA requirements for verification of medical O2 USP and N2 NF
- TÜV certified EN15267-3
- European Pharmacopeia compliant (O2)
- Source Reference Method (O2) to EN14789, verification of AMS to EN14181
Compare the Standard Analyzer Variants
Refer to the table below to choose the suitable analyzer variant for portable gas analysis needs.
Source: Servomex
| Configuration |
|
| 5200 MiniMP variants |
There are two standard configurations (SV01 - industrial O2 and SV02 - high accuracy O2). These cover a basic set up to enable a quick turnaround from specification to delivery. |
| Standard Variant (SV01) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV02) |
This is a pre-configured standard variant base level configuration, including a high accuracy O2 paramagnetic cell, AFCD, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV03) |
This is a pre-configured standard variant base level configuration, including an industrial O2 paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| Standard Variant (SV04) |
This is a pre-configured standard variant base level configuration, including a high accuracy O2 paramagnetic cell, internal pump, single mA output and a rear exhaust output. Other accessories can be added as needed. |
| User Configured |
This variant can be configured to the user's specific configuration and can have two measurements - Industrial or high accuracy O2 and 10 %, 25 %, 50%, 100% CO2. Other accessories can be added as needed. |
Source: Servomex
| MiniMP Variants |
|
SV01 |
SV02 |
SV03 |
SV04 |
UC |
| Supply power Lithium-ion batteries providing 8 to 36 hours of use, depending on sensor selections |
UK Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| US Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| European Mains |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery UK |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery US |
☐ |
☐ |
☐ |
☐ |
☐ |
| Rechargeable battery European |
☐ |
☐ |
☐ |
☐ |
☐ |
| Measurement 1 |
Industrial PM cell |
☑ |
■ |
☑ |
■ |
☐ |
| High Accuracy PM cell |
■ |
☑ |
■ |
☑ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| Measurement 2 |
Industrial PM cell |
■ |
■ |
■ |
☐ |
☐ |
| High Accuracy PM cell |
■ |
■ |
■ |
■ |
☐ |
| Infrared CO2 |
■ |
■ |
■ |
■ |
☐ |
| mA output (RS 232 output included as standard) |
None |
■ |
■ |
■ |
■ |
☐ |
| Single |
☑ |
☑ |
☑ |
☑ |
☐ |
| Dual |
■ |
■ |
■ |
■ |
☐ |
| Inlet coupler |
5 mm OD stub with "QuickConnect" barb fitting for 6.3 mm (1/4") ID tube |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1/8" NPT fitting adaptor |
☐ |
☐ |
☐ |
☐ |
☐ |
| Sampling system |
AFCD |
☑ |
☑ |
■ |
■ |
☐ |
| 0.71 (0.02 cu.ft)/min internal pump with user-configurable timer |
■ |
■ |
☑ |
☑ |
☐ |
| Exhaust/vent outlet |
Front (pump version only) |
■ |
■ |
■ |
■ |
☐ |
| Rear |
☑ |
☑ |
☑ |
☑ |
☐ |
| User manual |
English |
☐ |
☐ |
☐ |
☐ |
☐ |
| French |
☐ |
☐ |
☐ |
☐ |
☐ |
| German |
☐ |
☐ |
☐ |
☐ |
☐ |
| Italian |
☐ |
☐ |
☐ |
☐ |
☐ |
| Printer |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| 12/24 V vehicle power adaptor |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Side panel accessories |
Unvalved flowmeter 1-10 I min-1 (0.035-0.35 f3 min-1) (AFCD only) |
☐ |
☐ |
■ |
■ |
☐ |
| Valved flowmeter 1-10 I min-1 (0.035-0.35 ft3 min-1) (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Sample conditioning panel, Silica gel drier, and catchpot fitted to the side of the analyzer (pump version only) |
■ |
■ |
☐ |
☐ |
☐ |
| Probe holder |
Supplied |
☐ |
☐ |
☐ |
☐ |
☐ |
| Probe |
25 cm, 316 stainless steel, tip, < 180 °C |
☐ |
☐ |
☐ |
☐ |
☐ |
| 1 m 316 stainless steel |
☐ |
☐ |
☐ |
☐ |
☐ |
| Transport case |
|
☐ |
☐ |
☐ |
☐ |
☐ |
| 2 years spares |
Recommended spares for two years of operation, comprising replacement filters (5) and filter cap 'O' ring |
☐ |
☐ |
☐ |
☐ |
☐ |
| ☐ |
Option selectable |
| ■ |
Option not available in that variant |
| ☑ |
Pre-selected option |
The Benefits of Benchtop Analysis
The MiniMP delivers reliable O2 and CO2 monitoring for CEMS, industrial gas, and medical gas applications, supported by a Li-ion battery for true portability.
Meets Medical Gas Requirements
The SERVOFLEX MiniMP 5200 complies with FDA requirements for medical O2 and N2 verification and meets European Pharmacopeia standards for medical O2 assay.
Ideal for CEMS Verification
Certified to TUV EN15267/EN14181 (QAL 1), the MiniMP is a distinctive portable analyzer for reference O2 measurement in CEMS applications.
Non-Depleting Sensors
The analyzer uses Servomex’s digital Paramagnetic and Infrared sensor technologies to deliver accurate, long-term operation with minimal calibration requirements.
Specifications
The MiniMP 5200 uses cutting-edge, non-depleting sensing technology to provide really portable single or dual measurements of carbon dioxide and oxygen.
Source: Servomex
| Gas |
Measurement |
| Oxygen (O2) |
% |
| Carbon dioxide (CO2) |
% |
Technologies
- Infrared TAB
- Paramagnetic
Certificates
- AC power supply
- UL/CE approved 100-240 V/43 = 70 Hz
- Meets USFDA performance requirements for verifying medical O2 use CE in accordance with EEC EMC and WEEE Directives

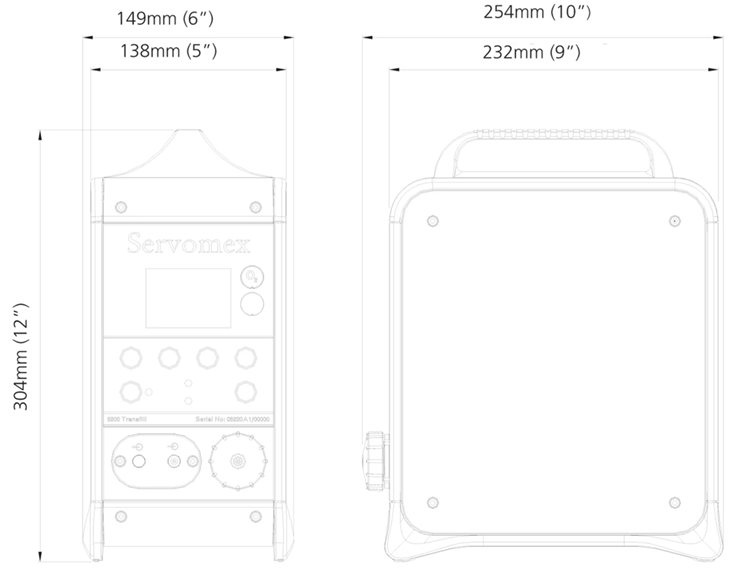

Schematics
Image Credit: Servomex
Size: 150 mm (6.0”) Width × 300 mm (12.0”) High × 260 mm (10.5”) Deep
Weight: 2.6 kgs (5.7 lbs) – 3.9 kgs (8.6 lbs) depending on config
Typical Applications
The MiniMP 5200 offers reliable benchtop analysis of oxygen and carbon dioxide for a wide range of applications, including combustion analysis, medical gas storage sites, air separation and gas bottling facilities, as well as laboratory settings.
