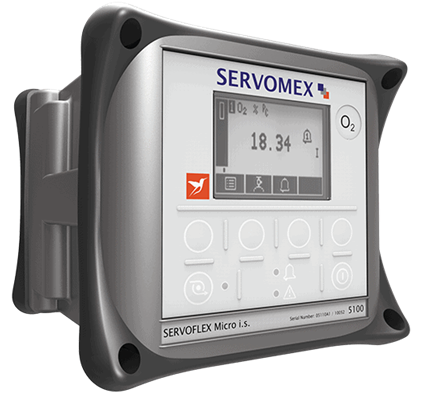

SERVOFLEX Micro i.s. 5110 SV01 for Oxygen Measurement

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

Engineered for the assessment of oxygen (O₂) in potentially combustible gas samples, the intrinsically safe SERVOFLEX Micro i.s. 5100 is a distinctive analyzer certified for use in Zone 0 and Zone 1, making it appropriate for measuring percentage levels of O₂.

Improved safety measures for the most hazardous areas
An uncompromising solution
Functions as diligently as the user does
- A portable analyzer designed for measuring O₂ levels below 21 %
- Intrinsically safe, certified for use in Zone 0 and Zone 1 environments
- Capable of analyzing O₂in both flammable and toxic samples
- Can store up to 200 measurements
- Equipped with high-quality, long-lasting Li-Ion rechargeable batteries
- Offers options for pumped or pressure-driven sample gas

Servomex Oxygen Analyzer for Accurate Gas Analysis 5110 Standard Variant 01

The standard variant 1 base level configuration, which is pre-configured, includes the Industrial Accuracy oxygen measurement for general oxygen measurement needs. It comes with a standard 1/4" barb fitting.

Industrial, with one decimal place, paramagnetic sensor
An internal lithium-ion rechargeable battery along with a battery charger
Options for protective carry bag and case accessories
Internal sample pump
Options for the sample probe

Overview

High Performance Portable Oxygen Analysis for Hazard-Rated Locations

Designed to fulfill the requirements of the most hazardous environments, the Micro i.s. 5100 provides a highly sensitive percentage oxygen measurement. Its robust, life-proof construction and feature-rich capabilities guarantee optimal operational flexibility.

The SERVOFLEX Micro i.s. 5100 is classified as Intrinsically Safe (i.s.) and can be used to assess both flammable and toxic samples. This smart design eliminates the need for purging before using the device. It features an intuitive user interface, the capacity to store up to 200 measurements, and offers a battery life of up to 18 hours.

Enhanced Safety for the Most Dangerous Locations

When operating in environments with the potential for explosive atmospheres, it is essential to use the most reliable analytical solutions that not only enhance safety but also deliver efficient, engineer-friendly gas measurements.

In scenarios such as catalytic regeneration, decoke cycles, combustion optimization, and monitoring processes in hazardous areas, intrinsically safe (i.s.) certified solutions help reduce costs and increase efficiency.

Regardless of the specific application monitoring needs, it is crucial to select a device that provides a feature-rich performance, extended battery life, minimal operational costs, straightforward ongoing maintenance, and user-friendliness.

A No-Compromise Solution

The SERVOFLEX Micro i.s. integrates user-friendly interaction with a safety-optimized i.s. design, featuring highly sensitive, industry-leading O₂ monitoring capabilities. This makes it the perfect portable gas analysis solution for hazardous environments. It offers flexible options, including both pumped and non-pumped formats, as well as a variety of features to simplify sample testing. The Micro i.s. not only fulfilling requirements, but also adapts seamlessly to provide the efficiency and usability that the work necessitates.

Works Hard

Designed to provide a robust and diligent solution with enhanced uptime, the Micro i.s. is equipped with premium, long-lasting Li-Ion rechargeable batteries as standard. Additionally, an integrated digital LCD notepad enables the storage of up to 200 measurements on the device, allowing the user to operate and test with optimal efficiency.

Features and Benefits

Flexible

IP65 rating
Intrinsically safe (i.s) design permits use in any hazard-rated location, including Zone 0/Div. 1
Gas analysis for O₂, CO, or CO₂
Pumped or non-pumped (AFCD) functions

Easy to Use

User-friendly interface and icons designed for engineers
Accommodates up to 200 measurements for later download
Ergonomically designed with a carrying strap.

Low Cost of Ownership

Utilizes sensor technologies that do not deplete, thereby minimizing continuous maintenance expenses.
State-of-the-art Li-Ion rechargeable batteries are provided as standard, offering a run time of up to 18 hours.

Unrivalled Performance

Uses cutting-edge patented Paramagnetic and Infrared technologies along with advanced algorithms to achieve highly sensitive and precise measurements.
Produced by Servomex, which boasts over 70 years of expertise in innovating and leading the field of gas analysis, with thousands of units deployed in practical applications annually.

Benchmark Compliance

Europe

ATEX: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C ≤ Ta ≤ +50 °C) (+14 °F ≤ Ta ≤ +122 °F)

International

IEC: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C ≤ Ta ≤ +50 °C) (+14 °F < Ta ≤ +122 °F)

USA

FM: IS/I/1/ABCD/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Division 1)
FM: IS/I/0/AEx ia/IIC/T4; -10 °C ≤ Ta ≤ 50 °C: IP65 (Zone 0)

Canada

FM: IS/I/1/ABCD/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Division 1)
FM: IS/I/0/Ex ia/IIC/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Zone 0)

Compare the Standard Analyzer Variants

Use the table below to find the right analyzer variant for the application.

Source: Servomex

Configuration
5110 Micro i.s. Variants	We have two pre-configured 5110 (internal pump) builds that cover the most common chosen option configurations to enable a quick turnaround from specification to delivery.
Standard Variant 01 (SV01)	The pre-configured standard variant 1 base level configuration, including the Industrial Accuracy oxygen measurement, for general oxygen measurement requirements.
Standard Variant 02 (SV02)	The pre-configured standard variant 2 base level configuration, including the High Accuracy oxygen measurement, for general oxygen measurement requirements.
User Configured (UC)	Other analyzer configurations not covered by the two above standard variant configurations.

Source: Servomex

Micro i.s. 5110 (Pumped) Portable Analyzer		SV01	SV02	UC
Product Certification	ATEX Cat1(Zone0) / IECEx / cus	☑	☑	☑
Supply power Lithium-ion batteries providing 8-36 hours of use, depending on sensor selections	Rechargeable battery UK	☐	☐	☐
	Rechargeable battery US	☐	☐	☐
	Rechargeable battery Europe	☐	☐	☐
Measurement	Oxygen, Industrial Accuracy	☑	■	☐
Measurement	Oxygen, High Accuracy	■	☑	☐
Sampling system	Internal pump with user-configurable timer	☑	☑	☑
Inlet coupler	1/4" Barb (standard)	☐	☐	☐
Inlet coupler	1/8" NPT thread	☐	☐	☐
User manual	English	☑	☑	☑
Sample accessories	Not supplied	☐	☐	☐
Sample accessories	Sample Conditioning Kit Supplied	☐	☐	☐
Protective Black Bag	Not supplied	☐	☐	☐
Protective Black Bag	Supplied^*	☐	☐	☐
Probe holder	Not supplied	☐	☐	☐
Probe holder	Supplied: Includes an in-line filter if the sample conditioning kit is not selected	☐	☐	☐
Sample probe⁺⁺	Not supplied	☐	☐	☐
	25 cm, 316 stainless steel, with protective silicone tip (remove protective silicone tip for process temperatures > 180 ºC)	☐	☐	☐
	1 m, 316 stainless steel, without protective silicone tip	☐	☐	☐
Transport/storage case (safe area only)	Not supplied	☐	☐	☐
Transport/storage case (safe area only)	Supplied	☐	☐	☐

^*Supplied by default if the sample conditioning kit is selected
⁺⁺Option applicable if Probe holder option is selected

☐	Option selectable
■	Option not available in that variant
☑	Pre-selected option

Specifications

The SERVOFLEX Micro i.s. 5100 is a portable oxygen analyzer using non-depleting Paramagnetic sensing technology for

Source: Servomex

Gas	Measurement
Oxygen (O₂)	%

Technologies

Paramagnetic

Certifications

Europe

CE marked and in compliance with ATEX, EMC and WEE Directives scope UL approved and CE marked 100-240 V / 43-70 Hz AC power supply
ATEX: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C ≤ Ta ≤ +50 °C) (+14 °F ≤ Ta ≤ +122 °F)
