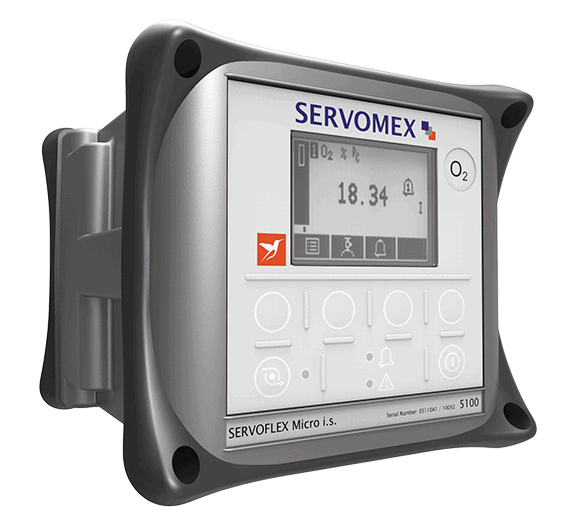

SERVOFLEX Micro i.s. 5111 SV02 for Oxygen Measurement Needs

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

Engineered for the measurement of oxygen (O₂) in potentially combustible gas samples, the intrinsically safe SERVOFLEX Micro i.s. 5100 is a unique analyzer certified for operation in Zone 0 and Zone 1, making it suitable for percent-level O₂ measurement.

Enhanced protection for the most hazardous environments
A dependable, no-compromise solution
Delivers consistent and reliable performance
- Portable analyzer designed for % levels of O₂ (measurement below 21% O₂)
- Intrinsically safe with certification for Zone 0 and Zone 1
- Capable of measuring O₂ in both flammable and toxic gas samples
- Stores up to 200 measurement results
- Equipped with high-quality, long-life Li-Ion rechargeable batteries
- Supports both pumped and pressure-driven sample gas options

Servomex Oxygen Analyzer for Accurate Gas Analysis 5111 Standard Variant 02

The pre-configured Standard Variant 02 (SV02) base-level setup includes High Accuracy oxygen measurement and is intended for general oxygen measurement applications.

Protective carry bag and accessory case options
High precision, 2 decimal places, paramagnetic sensor
Pressure-driven sample, internal AFCD
Internal lithium-ion rechargeable battery and battery charger
Options for sample probes

Overview

High Performance Portable Oxygen Analysis for Hazard-Rated Locations

The SERVOFLEX Micro i.s. 5100 provides high-sensitivity percentage oxygen analysis within an Intrinsically Safe (i.s.) framework. Engineered for hazardous zones, it is capable of processing both flammable and toxic gas samples without requiring a pre-measurement purge.

This unit features an intuitive interface, internal data logging for up to 200 records, and an extended 18-hour battery life, ensuring operational reliability for long-duration field tasks.

Enhanced Safety for the Most Dangerous Locations

In explosive atmospheres, the deployment of reliable analytical solutions is paramount to maintaining safety and measurement efficiency. Intrinsically safe (i.s.) certified instruments are essential for critical processes, including catalytic regeneration, decoke cycles, and combustion optimization.

By prioritizing devices that offer extended battery life, low maintenance requirements, and an intuitive user interface, operators can drive down costs without compromising on technical rigor or compliance.

A No-Compromise Solution

The SERVOFLEX Micro i.s. combines a safety-optimized, intrinsically safe architecture with industry-leading oxygen monitoring sensitivity. Designed specifically for hazardous environments, this portable solution is available in both pumped and non-pumped configurations to suit diverse sampling requirements.

Its feature-rich design simplifies complex field testing, offering a seamless balance of high-performance analytics and operational usability.

Works Hard

Contrived for maximum uptime and operational durability, the Micro i.s. features high-performance Li-Ion rechargeable batteries as a standard component. The device includes an integrated digital LCD notepad capable of storing up to 200 individual measurements to further streamline field workflows, allowing for rapid testing and data management without the need for external logging tools.

Features and Benefits

Flexible

Pumped or non-pumped (AFCD) functions
IP65 rating
Intrinsically safe (i.s) design permits use in any hazard-rated location, including Zone 0/Div. 1
Gas analysis for O₂, CO or CO₂

Easy to Use

Accommodates up to 200 measurements for later download
Ergonomically designed with a carrying strap
User-friendly interface with engineer-focused icons

Low Cost of Ownership

Employs non-depleting sensor technologies, thus reducing ongoing maintenance costs.
Advanced Li-Ion rechargeable batteries are included as standard, providing up to 18 hours of runtime.

Unrivalled Performance

Uses advanced patented Paramagnetic and Infrared technologies combined with sophisticated algorithms to deliver exceptionally sensitive and accurate measurements.
Manufactured by Servomex, with over 70 years of experience leading innovation in the gas analysis industry and thousands of units deployed in real-world applications each year.

Benchmark Compliance

Europe

ATEX: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C ≤ Ta ≤ +50 °C) (+14 °F ≤ Ta ≤ +122 °F)

International

IEC: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C ≤ Ta ≤ +50 °C) (+14 °F < Ta ≤ +122 °F)

USA

FM: IS/I/1/ABCD/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Division 1)
FM: IS/I/0/AEx ia/IIC/T4; -10 °C ≤ Ta ≤ 50 °C: IP65 (Zone 0)

Canada

FM: IS/I/1/ABCD/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Division 1)
FM: IS/I/0/Ex ia/IIC/T4; -10 °C ≤ Ta ≤ +50 °C: IP65 (Zone 0)

Compare the Standard Analyzer Variants

This table helps identify the right analyzer variant for the application.

Source: Servomex

Configuration
5111 Micro i.s. Variants	We have two pre-configured 5111 (AFCD) builds that cover the most common chosen option configurations to enable a quick turnaround from specification to delivery.
Standard Variant 01 (SV01)	The pre-configured standard variant 1 base level configuration, including the Industrial Accuracy oxygen measurement, for general oxygen measurement requirements.
Standard Variant 02 (SV02)	The pre-configured standard variant 2 base level configuration, including the High Accuracy oxygen measurement, for general oxygen measurement requirements.
User Configured (UC)	Other analyzer configurations are not covered by the two above standard variant configurations.

Source: Servomex

Micro i.s. 5111 (AFCD) Portable Analyzer		SV01	SV02	UC
Product Certification	ATEX Cat1(Zone0) / IECEx / cus	☑	☑	☑
Supply power Lithium-ion batteries providing 8-36 hours of use, depending on sensor selections	Rechargeable battery UK	☐	☐	☐
	Rechargeable battery US	☐	☐	☐
	Rechargeable battery Europe	☐	☐	☐
Measurement	Oxygen, Industrial Accuracy	☑	■	☐
Measurement	Oxygen, High Accuracy	■	☑	☐
Sampling system	Pressure-driven AFCD (Automatic Flow Control Device)	☑	☑	☑
Inlet coupler	1/4" Barb (standard)	☐	☐	☐
Inlet coupler	1/8" NPT thread	☐	☐	☐
User manual	English	☑	☑	☑
Protective Black Bag	Not supplied	☐	☐	☐
Protective Black Bag	Supplied	☐	☐	☐
Probe holder	Not supplied	☐	☐	☐
Probe holder	Supplied: Includes an in-line filter if the sample conditioning kit is not selected	☐	☐	☐
Sample probe⁺⁺	Not supplied	☐	☐	☐
	25 cm, 316 stainless steel, with protective silicone tip (remove protective silicone tip for process temperatures > 180 ºC)	☐	☐	☐
	1 m, 316 stainless steel, without protective silicone tip	☐	☐	☐
Transport/storage case (safe area only)	Not supplied	☐	☐	☐
Transport/storage case (safe area only)	Supplied	☐	☐	☐

⁺⁺Option applicable if Probe holder option is selected

☐	Option selectable
■	Option not available in that variant
☑	Pre-selected option

Specifications

The SERVOFLEX Micro i.s. 5100 is a portable oxygen analyzer that employs non-depleting Paramagnetic sensing technology.

Source: Servomex

Gas	Measurement
Oxygen (O₂)	%

Technologies

Paramagnetic

Certifications

Europe

ATEX: Ex ia (Intrinsically Safe) IIC T4 Ga (-10 °C_< Ta_< +50 °C) (+14 °F_< Ta_< +122 °F)
CE marked and in compliance with ATEX, EMC, and WEE Directives, scope UL approved, and CE marked 100-240 V / 43-70 Hz AC power supply
