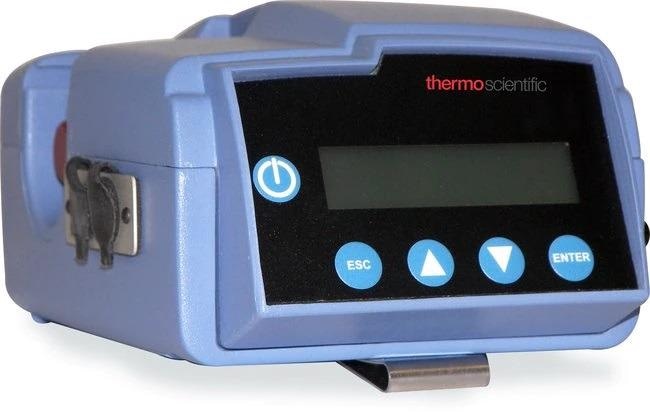

Personal DataRAM™ pDR-1500 Aerosol Monitor

Thermo Scientific’s Personal DataRAM pDR-1500 Portable Monitor is a real-time, completely integrated, high-accuracy sampling instrument developed specifically to offer increased operating time and maximum user-friendliness.

The pDR-1500 offers the power and resilience to offer both real-time results and gravimetric validation right from site remediation monitoring to health effects studies to demolition or construction projects. The instrument weighs only 41 oz., making it simple to wear on the belt as it is to operate it in a fixed location.

The instrument can compensate for all normal environmental variables. It has been built for relative humidity compensation, pressure compensation, true volumetric flow and legacy pDR nephelometry technology.

The pDR-1500 aerosol monitor also includes exchangeable cyclones for excellent particle-cut points available for PM2.5 and PM1 or PM10 and PM4, together with a combined sample filter that allows post-gravimetric validation of all data.

Key Features

  • True volumetric flow control
  • Flexible data logging routine
  • Complete compensation for environmental variables

Additional Information

  • Aerodynamic Particle Cut-Point Range of 1.0 to 10 μm
  • Concentration display updating interval of 1 second
  • Data logging averaging periods (user selectable) vary from 1 second to 1 hour
  • Serial interface: USB/RS-232, 19,200 baud
  • Total number of data points in memory is more than 500,000
  • Maximum number of data tags is 99
  • Computer requirements: PC compatible, 486 processor or higher; Windows™ 95 or higher

Recommended for

  • Size discrimination
  • Site remediation
  • Exposure modeling
  • Mass validation
  • Safety of asthma patients
